| Profile Coupling Set 8 K, grey similar to RAL 7042 | CADPDFRFQ |
Eelvaade

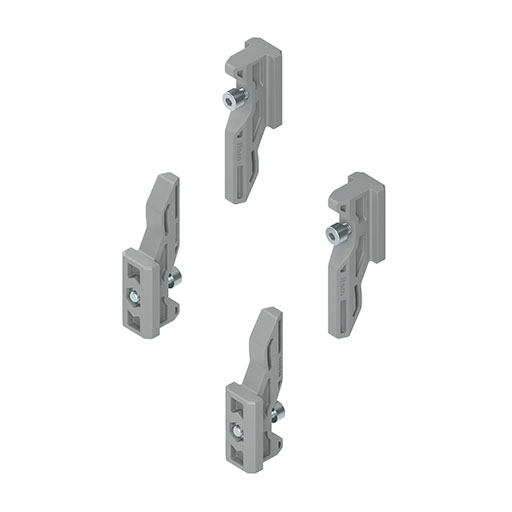

Profile Coupling Set 8 K, grey similar to RAL 7042

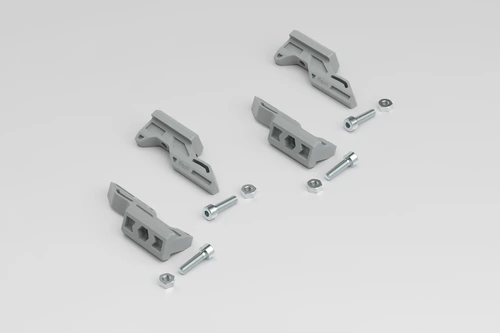

4 profile coupling elements 8 K, PA-GF 4 Hexagon Socket Head Cap Screws DIN 912 M4x16, St, bright zinc-plated 4 hexagon nuts DIN 934 M4, St, bright zinc-plated
Scope of Delivery
4 profile coupling elements 8 K, PA-GF 4 Hexagon Socket Head Cap Screws DIN 912 M4x16, St, bright zinc-plated 4 hexagon nuts DIN 934 M4, St, bright zinc-plated
Properties
| Pöördemoment | M = 3 Nm |
|---|---|
| rida 8 | rida 8 |
| ESD-safe | Ei |
| Kaal | m = 42 g |
| Delivery unit | 1 set |
| Maksimaalne kandevõime | F = 1000 N |
| Colour | hall sarnane RAL 7042 värviga |
| cleanroom suitability | Ei |
| Presentation | 2026-03-24T00:00:00 |

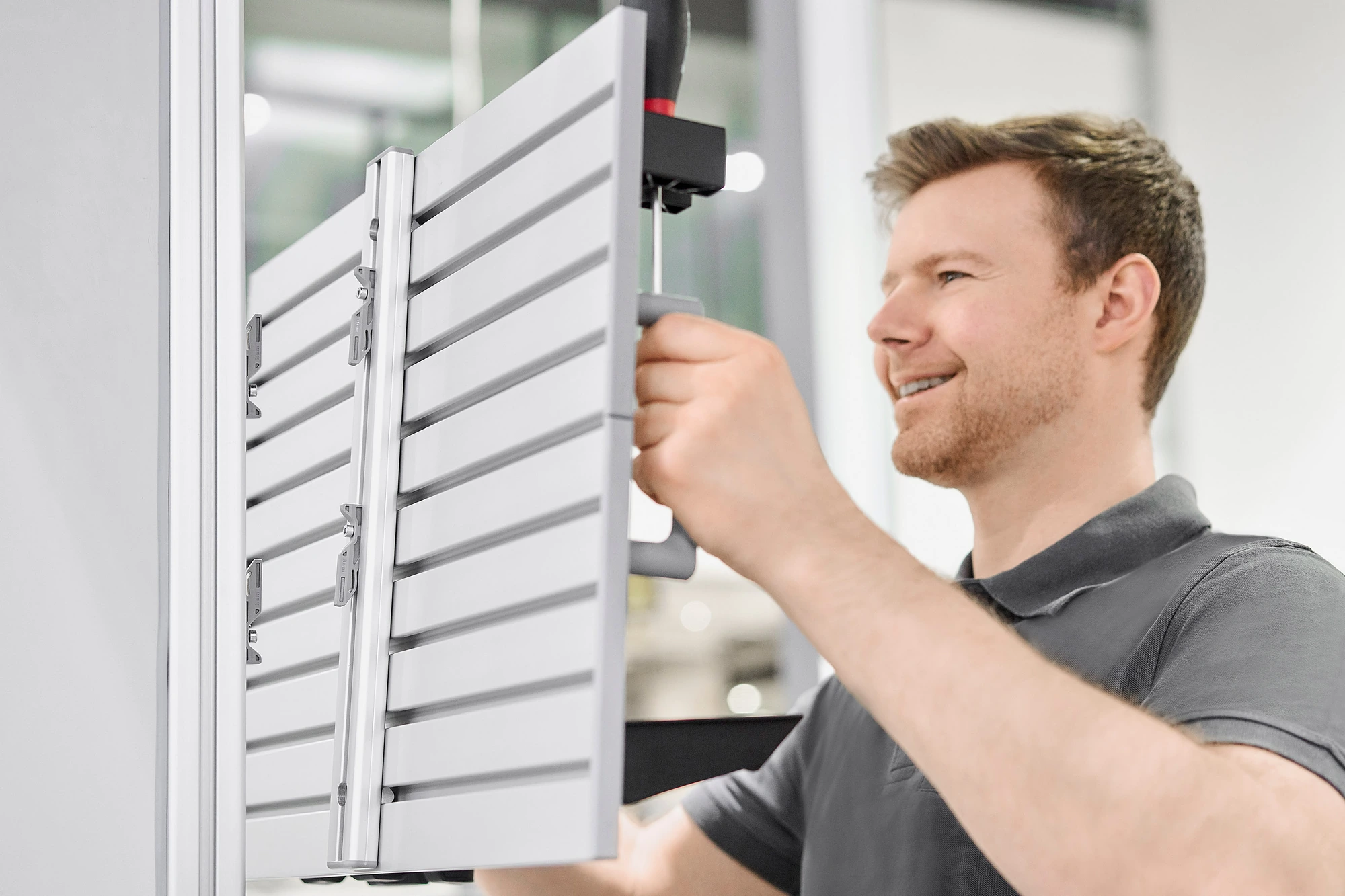

Profile Coupling Set 8 K connects parallel Line 8 profiles quickly and without requiring additional profile machining. At each connection point, two coupling elements clip into each other and can be separated again with ease. This is ideal when you want to connect together partitions that may need to be quickly disassembled again depending on requirements. Each panel can be free standing or combined with others. To make a connection, slide the coupling element on one profile into the groove of the opposite profile from above, until the two elements hook into each other. This fastens both posts together with no gap between them.
You can use Profile Coupling Set 8 K to connect any profiles with parallel Line 8 grooves that sit against each other, whether horizontally or vertically oriented. That makes this fixing ideal for partitions, temporary screening and interchangeable tool holder systems.
Profile Coupling Set 8 K can also be used to fasten Groove Plates or profiles to a work bench. This means that tool carriers and other structures can be rapidly swapped out.
