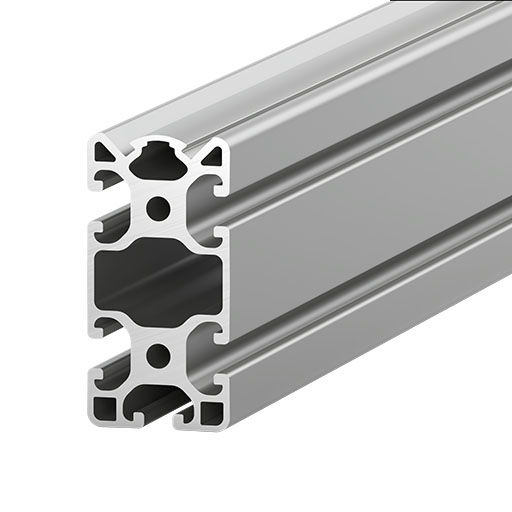

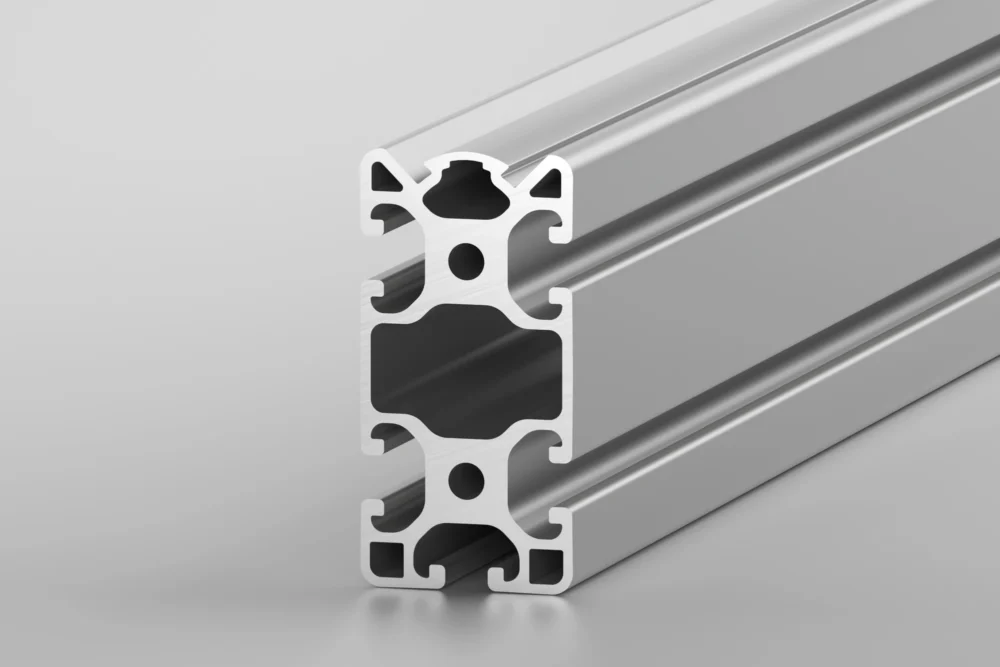

Profile 8 80×40 1N D30 light, natural
Konfigureeritud tooteandmed
Midagi ei ole veel genereeritud
Enne hinnapakkumise taotlemist peate oma toote allpool konfigureerima.
Tootekood: 0.0.729.71
Kategooriad: New Products MB Building Kit System, Profiilid ja tarvikud
Silt: Mõõdik
Properties
| Line | Line D30 |
|---|---|
| rida 8 | rida 8 |
| ESD-safe | Jah |
| Ristlõike pindala | A = 11.58 cm2 |
| Inertsmoment, väändemoment | It = 3.81 cm4 |
| Inertsmoment, x-telg | Ix = 17.06 cm4 |
| Inertsmoment, y-telg | Iy = 72,27 cm4 |
| Kaal | m = 3.138 kg/m |
| Delivery unit | cut-off max. 6000 mm |
| Materjal | Al, anodeeritud |

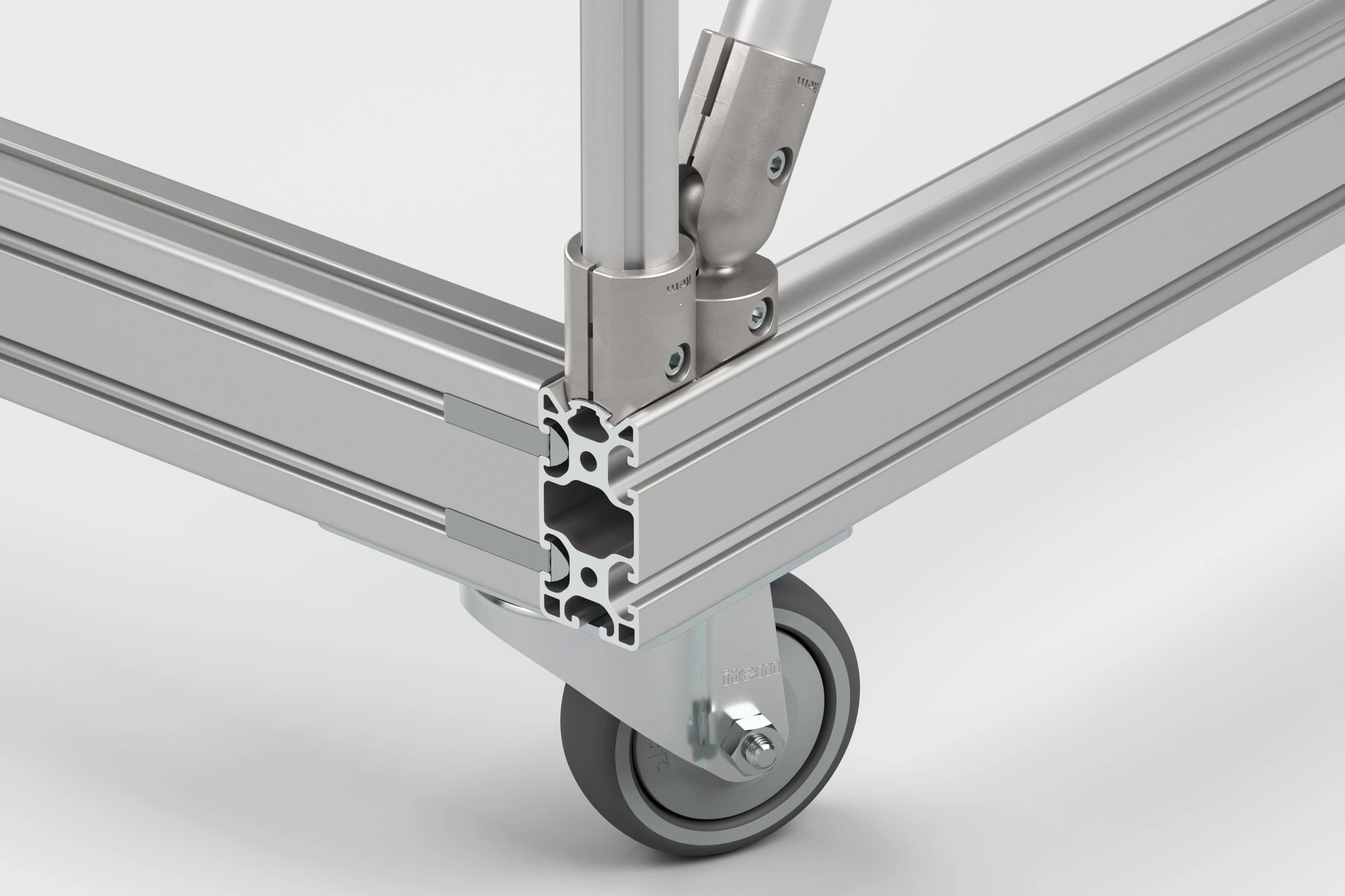

Profile 8 80x40 1N D30 light is a universal construction profile made of high-quality anodized aluminium in the modular dimension of Line 8 that also has a Line D30 profile flank. This means you can now use Fasteners D30 to connect (Profile) Tubes D30 directly to a frame made of rectangular Line 8 profiles – with no need to use adapters. This weight-reduced aluminium profile in the light design variant from item features five open Line 8 profile grooves. The profile contour of the Lean Production Building Kit System fits flush with the top.

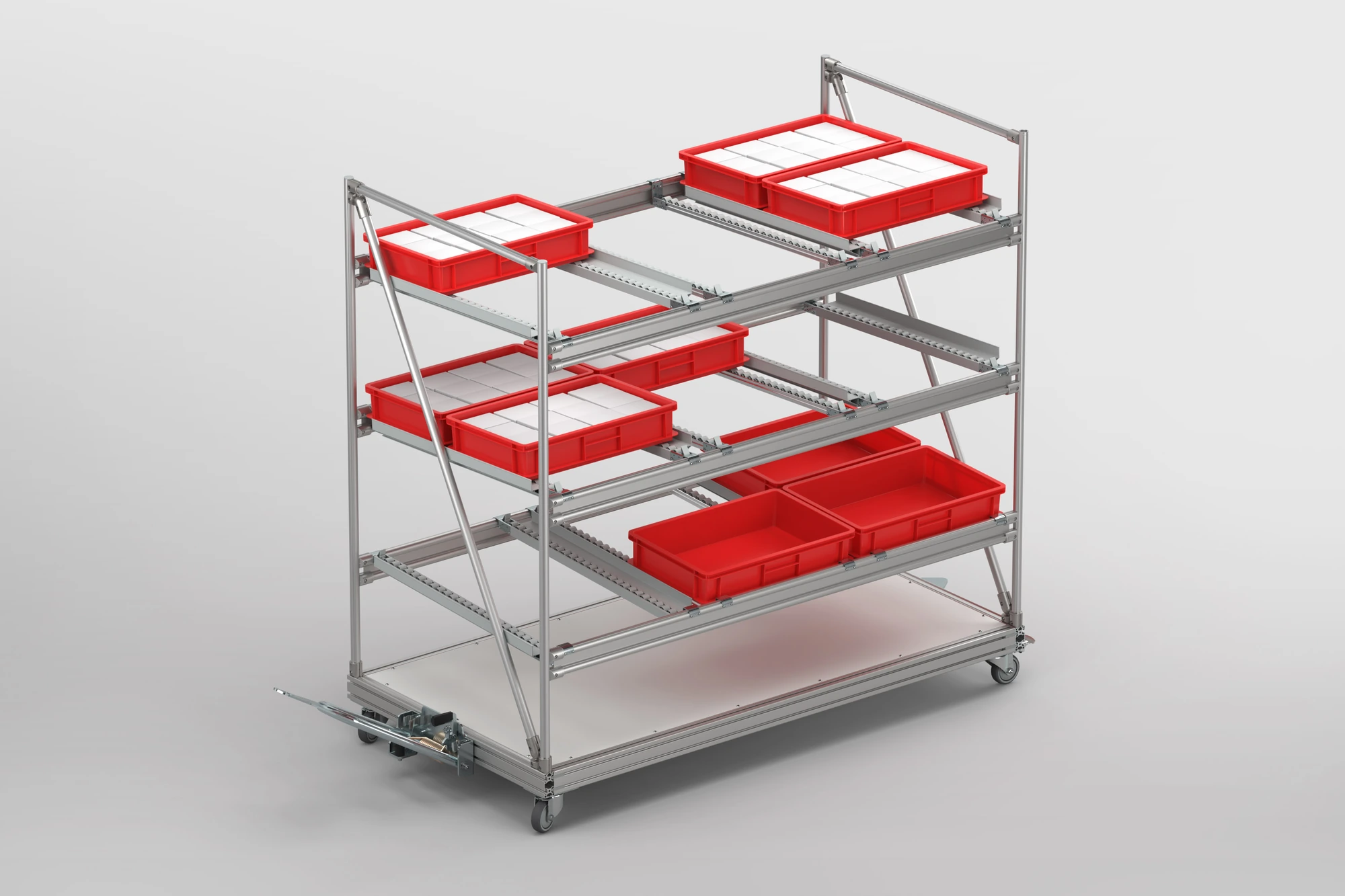

Torsion-resistant Profile 8 80x40 1N D30 light is suitable for building the load-carrying frames of transport trolleys, mobile racks and Base Carts for use with mobile industrial robots. Its geometry makes it easier to create a direct attachment to superstructures and Top Modules made from Profile Tubes D30.

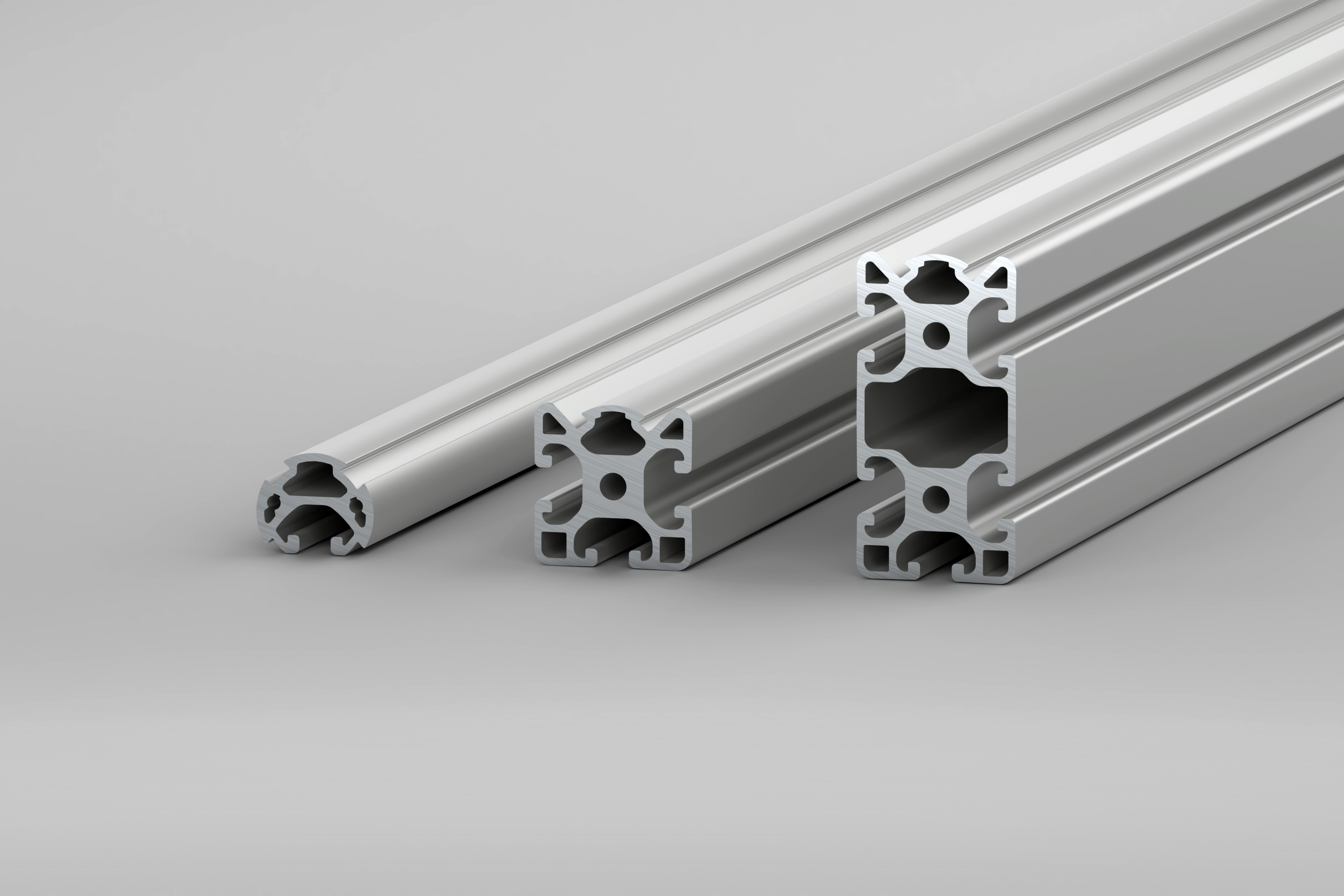

Various aluminium profiles are available as solutions for combining elements of the Lean Production Building Kit System and Line 8 in profile frames – Profile Tube 8 D30 (0.0.663.94), Profile 8 40x40 1N D30 light (0.0.725.24) and Profile 80x40 D30 (0.0.729.71).
