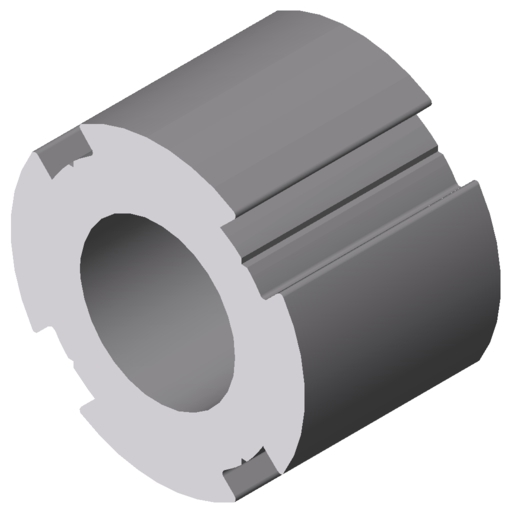

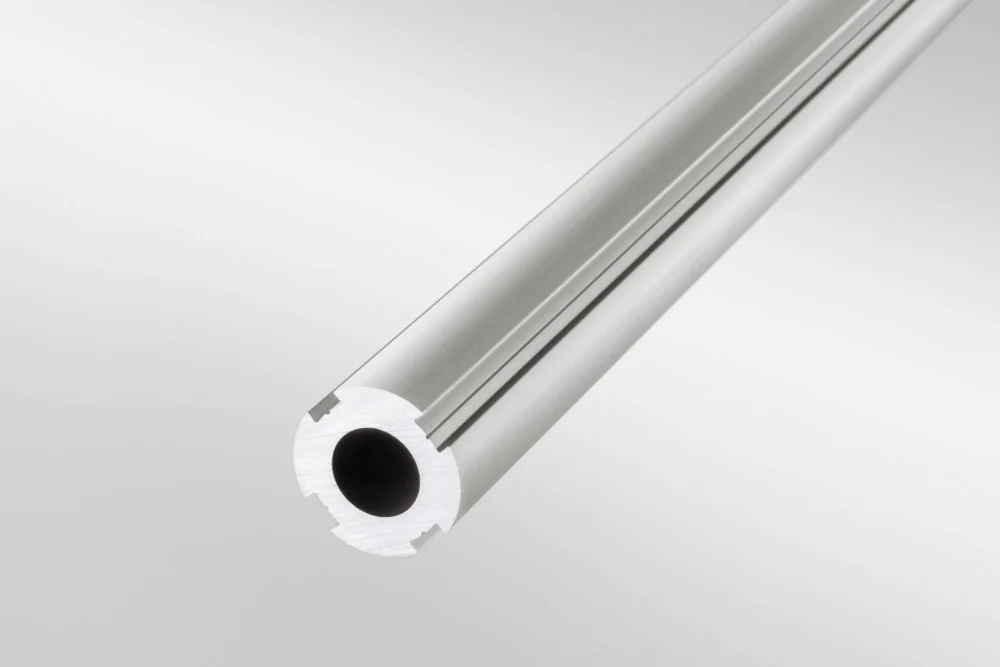

Profile Tube D30 heavy duty, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 4.67 cm2 |
| Moment of Inertia, torsional | It = 5 cm4 |
| Moment of Inertia, x-axis | Ix = 3.06 cm4 |
| Moment of Inertia, y-axis | Iy = 3.06 cm4 |
| Weight | m = 1.21 kg/m |
| Delivery unit | cut-off max. 6000 mm |
| Material | Al, anodized |
| Colour | natural |
Permissible loads for constructions built with Profile Tube D30 heavy duty.
Permissible loads for constructions built with Profile Tube D30-45° heavy duty and Profile Tube D30 heavy duty. The diagram shows the permitted load in relation to support span a. It is based on the maximum permissible deflection set by item, which is 1/100 of the support span. When designing rack structures, please observe the limit values set out in the relevant statutory regulations (e.g. DGUV regulation 108-007 in Germany).
