Profile Tube D30-45° heavy duty, natural

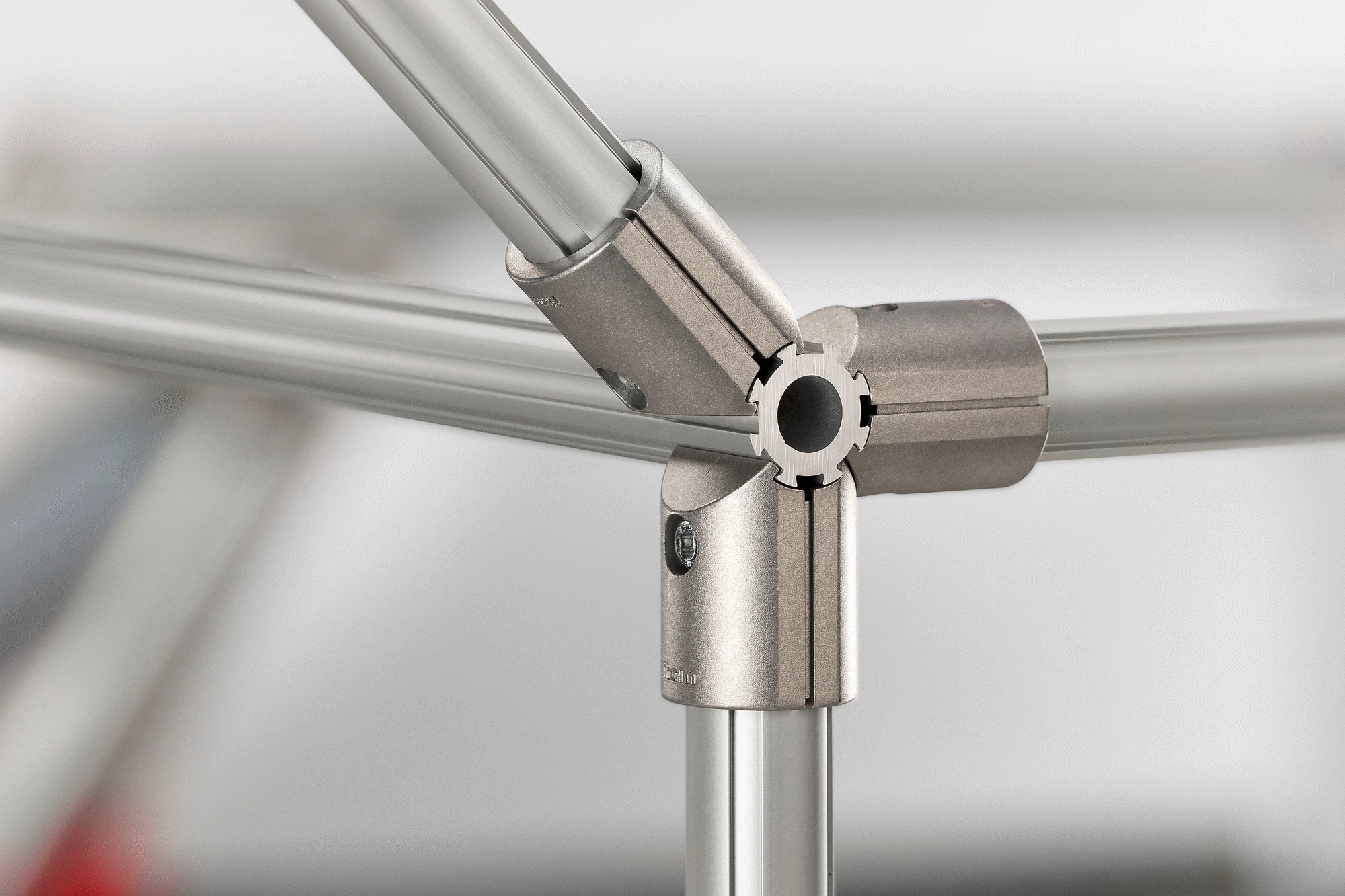

Exceptionally stable and versatile! Profile Tube D30-45° heavy duty features thick walls and a total of eight grooves. This means struts can be attached at angle increments of 45° without having to use special fasteners. In fact, 90° and 135° connections can be combined at the same intersection point. All the same fastening principles apply and all fasteners and components can be used without modification. Profile Tube D30-45° can be ordered in the standard lengths of 3000 and 6000 mm and in custom cut-offs. This makes it easy to find the right size for your warehouse. Profile Tube D30-45° is the ideal solution when there are high requirements for low profile deflection and increased buckling resistance. Heavy-duty threaded inserts that can withstand the highest compressive and tensile loads can be fitted to the end face. The Profile Tube for more angles! Thanks to a total of eight grooves, Profile Tube D30-45° heavy duty offers outstanding versatility. It allows users to attach struts at an angle of 45° without requiring special fasteners. In fact, a 90° and 45° connection can be combined at the same intersection point. The special geometry of the profile ensures maximum freedom and a high bending strength. Thanks to its thick walls, Profile Tube D30-45° heavy duty is also suitable for accommodating higher loads. For example, it can be used to create supporting struts in transport trolleys and Karakuri/LCA solutions to ensure wide-ranging design freedom for a variety of requirements.

Permissible loads for profile designs

Permissible loads for constructions built with Profile Tube D30-45° heavy duty and Profile Tube D30 heavy duty. The diagram shows the permitted load in relation to support span a. It is based on the maximum permissible deflection set by item, which is 1/100 of the support span. When designing rack structures, please observe the limit values set out in the relevant statutory regulations (e.g. DGUV regulation 108-007 in Germany).
