Profile 6 60×30 3N90 light, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 6 | line 6 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 6.3 cm2 |
| Moment of Inertia, torsional | It = 6.04 cm4 |
| Moment of Inertia, x-axis | Ix = 5.77 cm4 |
| Moment of Inertia, y-axis | Iy = 21.97 cm4 |
| Weight | m = 1.7 kg/m |
| Delivery unit | cut-off max. 6000 mm |
| Material | Al, anodized |
| Permissible groove extraction force | F = 500 N |

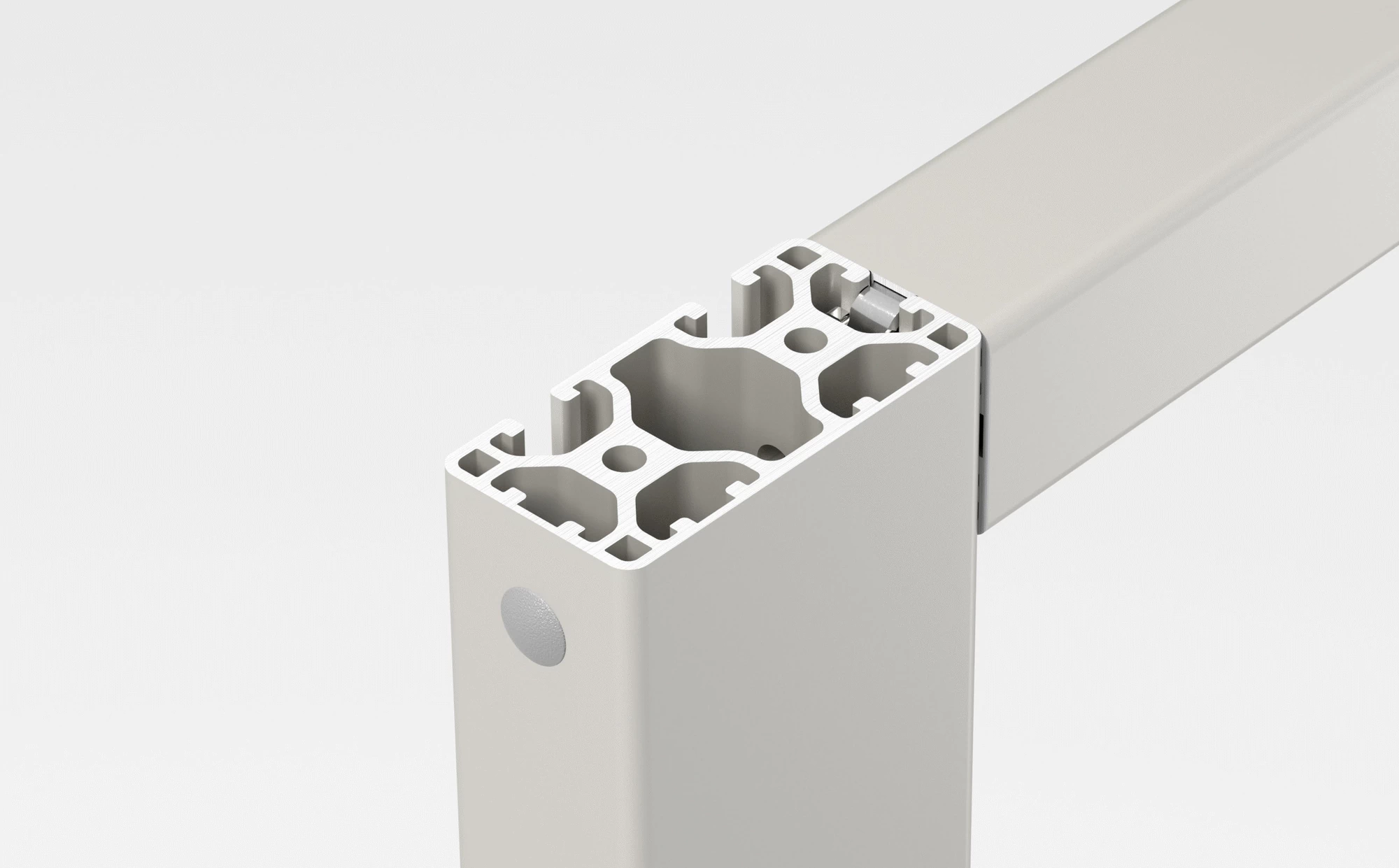

Profile 6 60x30 3N90 light is a universal construction profile made of high-quality anodized aluminium in the modular dimension of Line 6. This weight-reduced aluminium profile in the light design variant from item features three open Line 6 profile grooves. The grooves on one narrow side and one wide side are closed. This aluminium profile can be used to build frames that have easy-to-clean unbroken outer surfaces.
The profiles in Line 6 are available in standard and light design variants. Due to additional cavities, a Profile 6 60x30 light weighs around 28 percent less than a Profile 6 60x30 in the same length. The area moments of inertia against profile deflection and the maximum groove load-bearing capacity of the selected profile must be given due consideration in respect of the loads involved. Line 6 profiles from item are available with closed grooves in a variety of arrangements. The profile wall can be opened up partially or completely so that the groove underneath can be used.
