Platform Cleat

2 platform cleat top sections, St, bright zinc-plated 2 platform cleat bottom sections, St, bright zinc-plated 2 compression springs, St, bright zinc-plated 2 Button-Head Screws ISO 7380-M6x45, St, bright zinc-plated

Tootekood: 0.0.651.74 Kategooria: Silt:
Set CAD-format
Platform CleatCADPDFRFQ

Preview

Scope of Delivery

2 platform cleat top sections, St, bright zinc-plated 2 platform cleat bottom sections, St, bright zinc-plated 2 compression springs, St, bright zinc-plated 2 Button-Head Screws ISO 7380-M6x45, St, bright zinc-plated

Properties

line 8line 8
ESD-safeNo
Weightm = 118 g
Delivery unit1 set

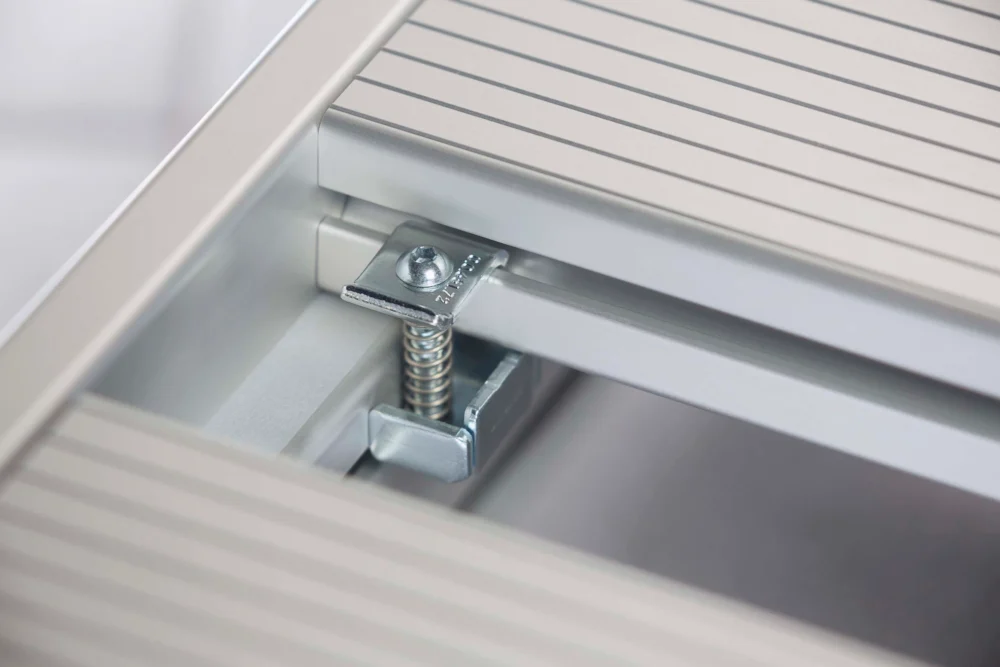

Platform Cleat Platform Cleats are used to create a screw connection between two Step Profiles spaced 10 mm apart and Frame Profile 8 120x40 light. The gap makes platforms easier to clean and ensures liquids can drain away. Platform Cleats are screwed into place from above with no need for profile machining.
Stairways/Plaform Systems
