| Braking Roller D52-112 M6 z16 | CADPDFRFQ |
Preview
Braking Roller D52-112 M6 z16
1 braking roller D52 z16 2 braking roller fixings M6, St, bright zinc-plated 4 T-Slot Nuts V 8 St M6, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912 M6x14, St, bright zinc-plated
Scope of Delivery
1 braking roller D52 z16 2 braking roller fixings M6, St, bright zinc-plated 4 T-Slot Nuts V 8 St M6, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912 M6x14, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 644 g |
| Force perm. | Fper. = 500 N |
| Delivery unit | 1 set |
| Status on delivery | Preassembled |

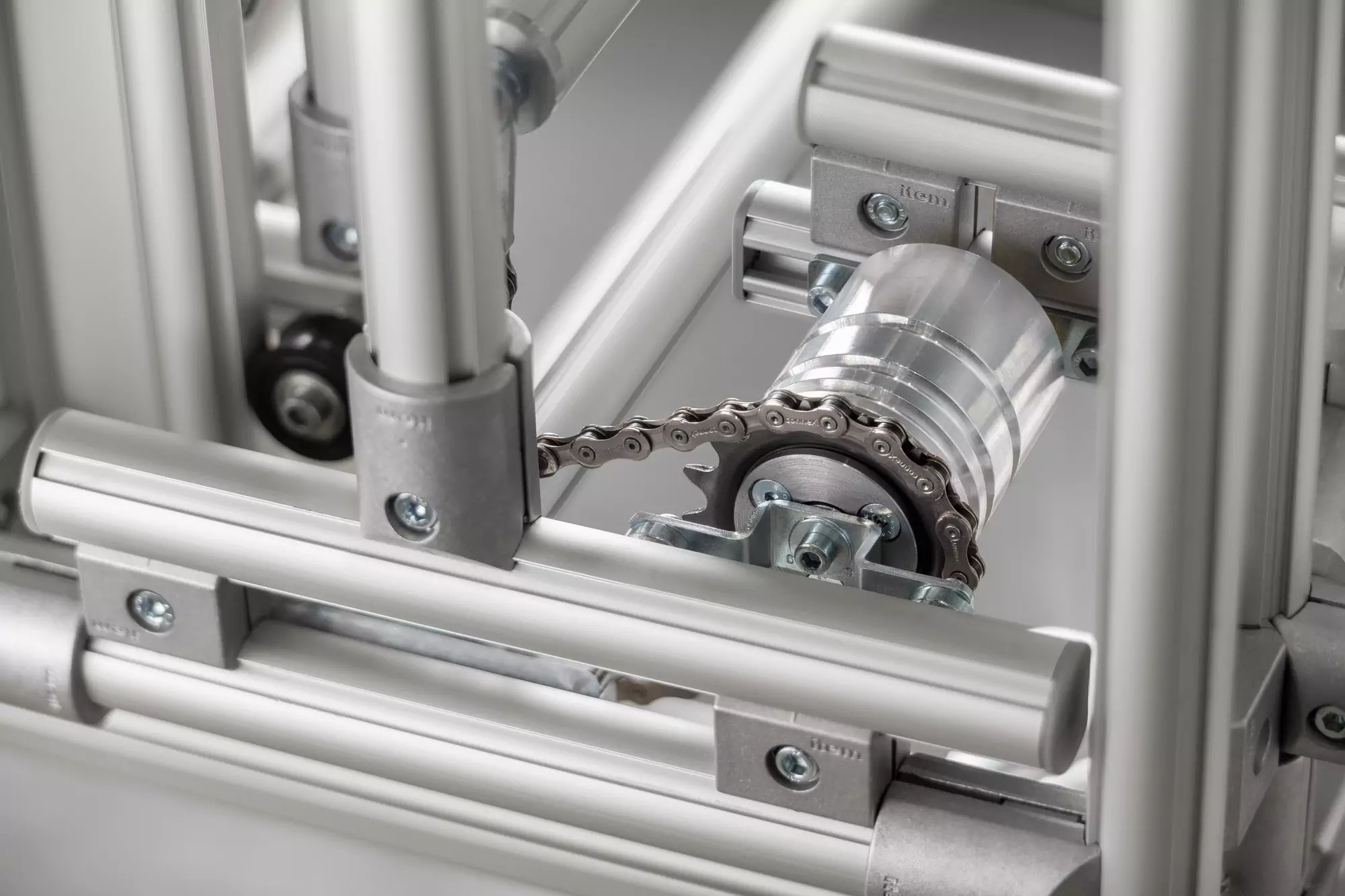

Braking Roller D52-112 M6 z16 features a sprocket wheel and regulates the motion of assemblies that are connected via Chain 1/2". Deceleration increases in line with speed so that the braking roller effectively counteracts strong acceleration in the lift mechanisms of Karakuri/LCA applications. The braking roller is supplied with its sprocket wheel already fitted.

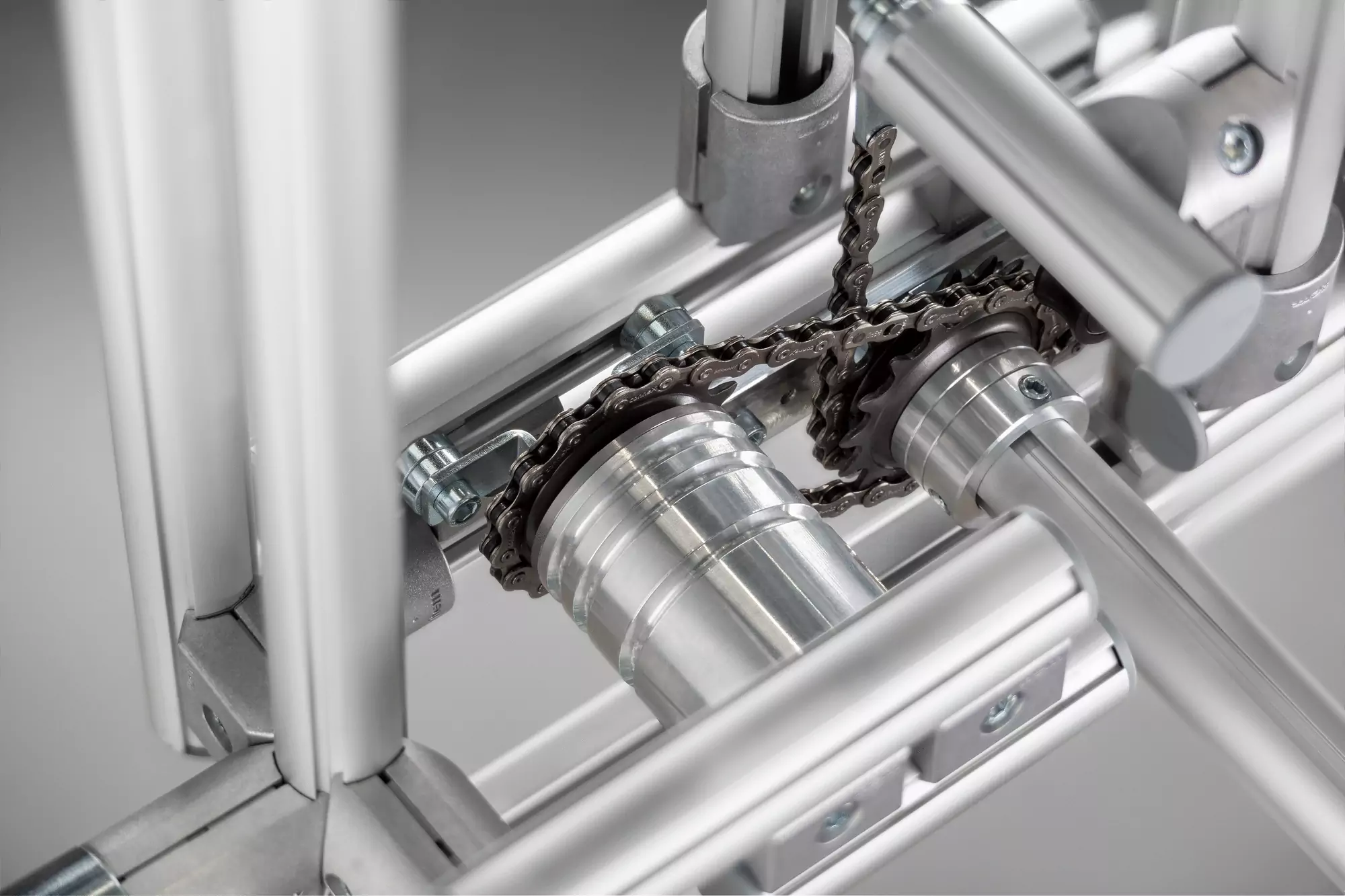

The braking roller with sprocket wheel is installed between two profiles that each have a Line 8 groove. Fixings are included in the scope of supply. The aluminium housing also features three indentations so that cables can be run around the braking roller, too.
