Parallel Fastener 8

2 clamping elements, Al, anodized natural Housing, PA-GF, black Compression spring Tensioning screw, St, bright zinc-plated

Tootekood: 0.0.476.58 Kategooria: Silt:
Set CAD-format
Parallel Fastener 8CADPDFRFQ

Preview

Scope of Delivery

2 clamping elements, Al, anodized natural Housing, PA-GF, black Compression spring Tensioning screw, St, bright zinc-plated

Properties

line 8line 8
ESD-safeYes
Weightm = 21 g
Delivery unit1 set

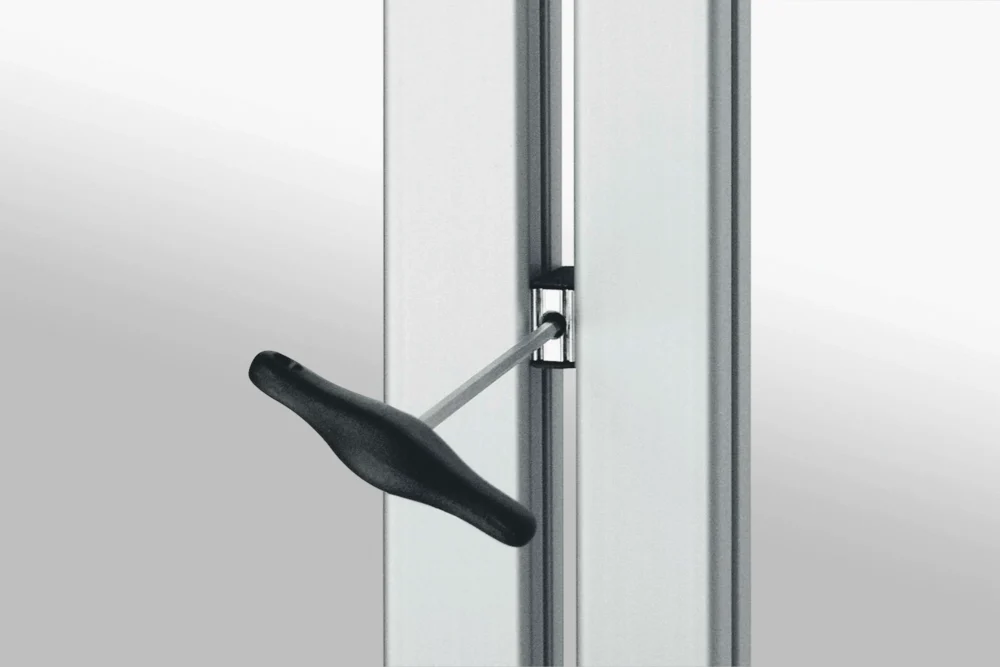

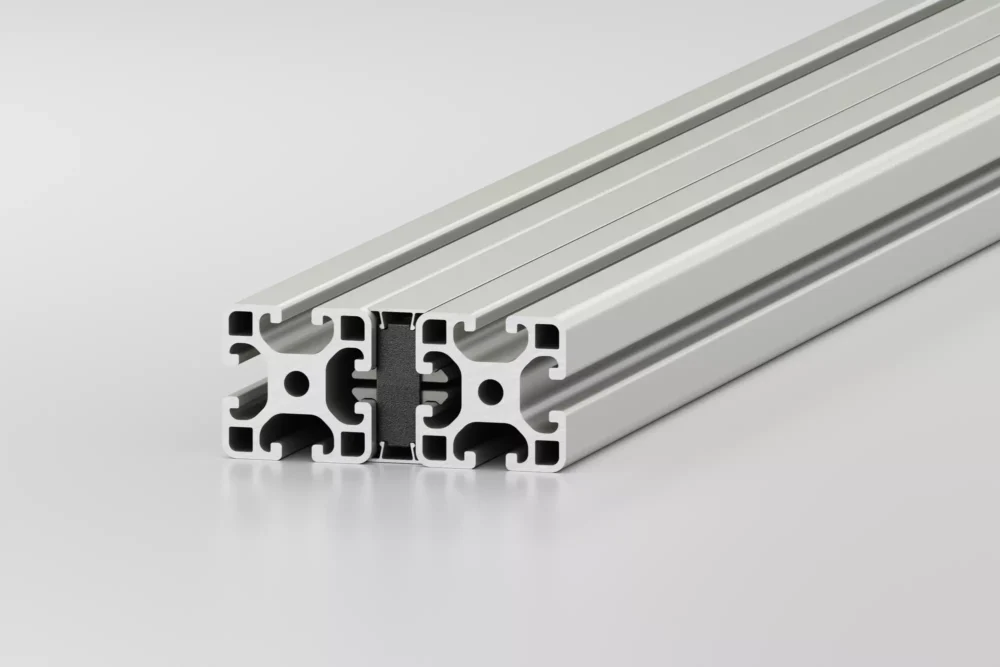

Element for fastening two parallel Line 8 Profiles at a distance of 12 mm. Parallel Fastener 8 is very easy to use: Both halves of the spring loaded fastener engage in the profile grooves facing each other. This fixes the profiles in position. The fastener is then clamped by tightening an internal screw.
Max. torque for the tensioning screw: M = 2.5 Nm

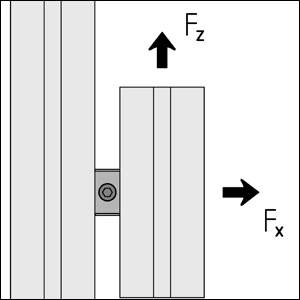

Permissible loading force per Fastener: F x = 1,000 N F z = 100 N
MB Building Kit System
