Paneel-Fixing ribad D30, hall sarnane RAL 7042-ga

Konfigureeritud tooteandmed

Midagi ei ole veel genereeritud

Enne hinnapakkumise taotlemist peate oma toote allpool konfigureerima.
Tootekood: 0.0.681.64 Kategooria: Silt:
Määrake CAD-vorming
0.0.681.64

Eelvaade

Properties

LineLine D30
ESD-safeEi
Kaalm = 119 g/m
Delivery unitcut-off max. 3000 mm
MaterjalPE-HD
Colourhall sarnane RAL 7042 värviga

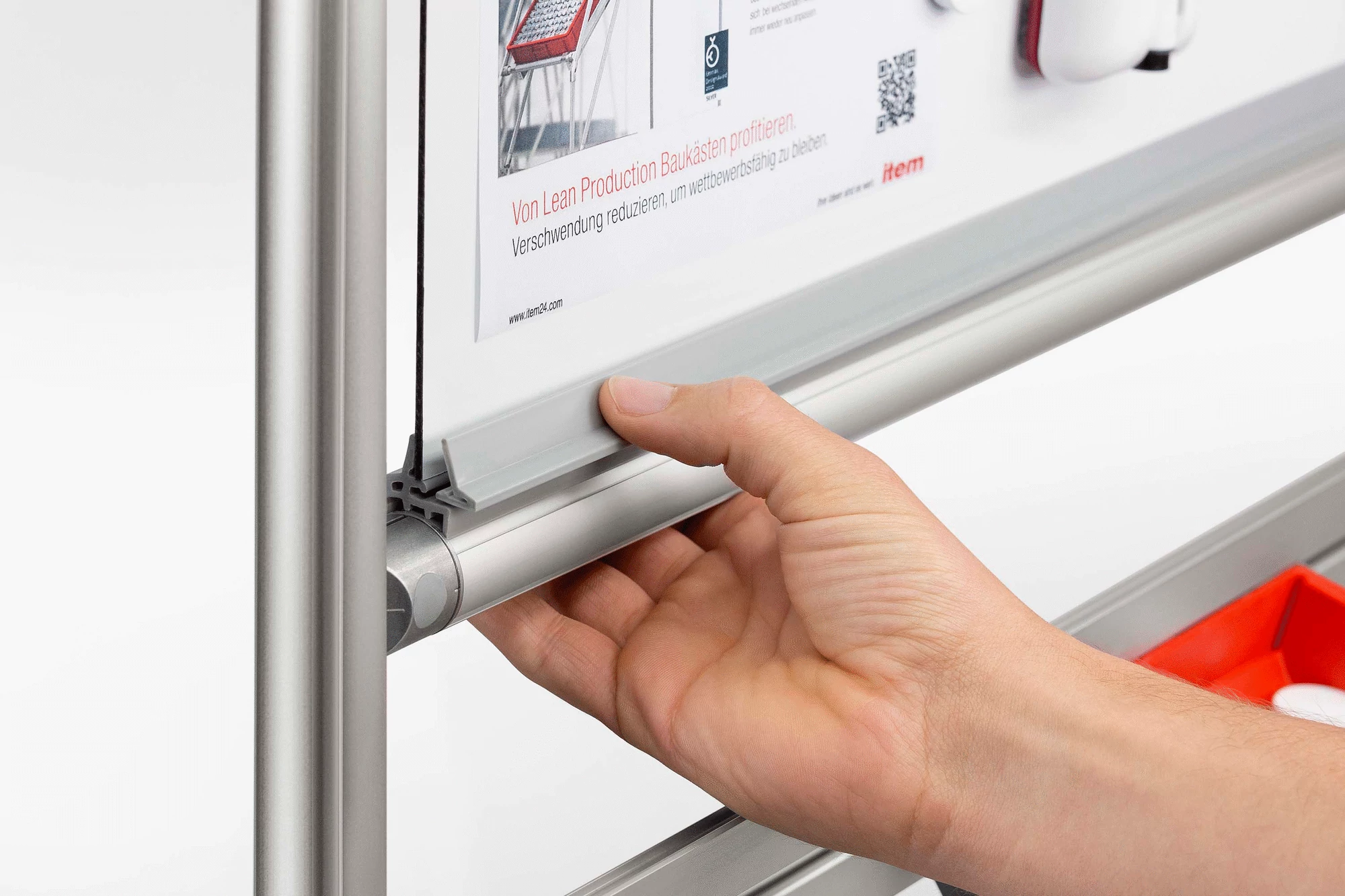

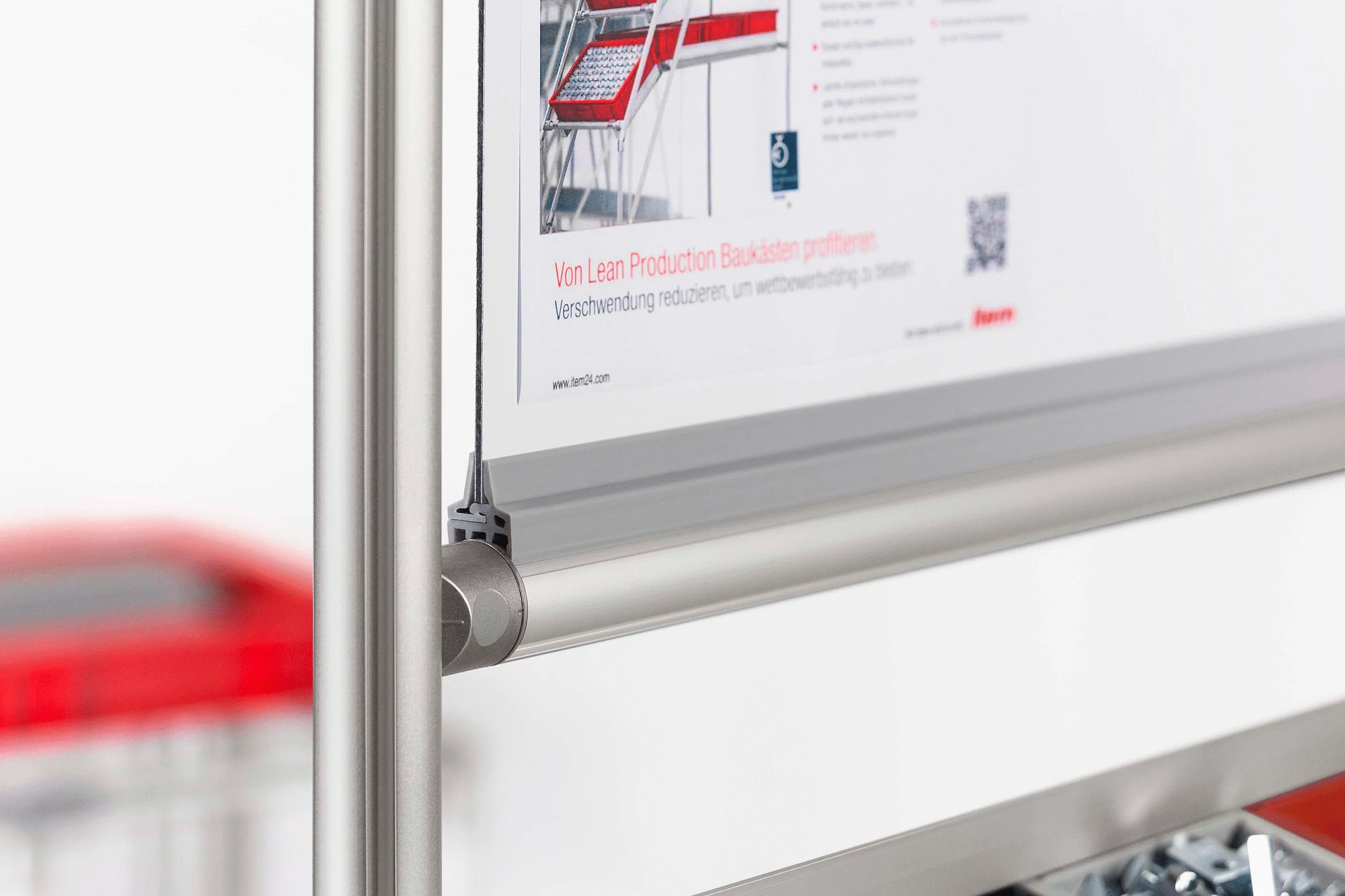

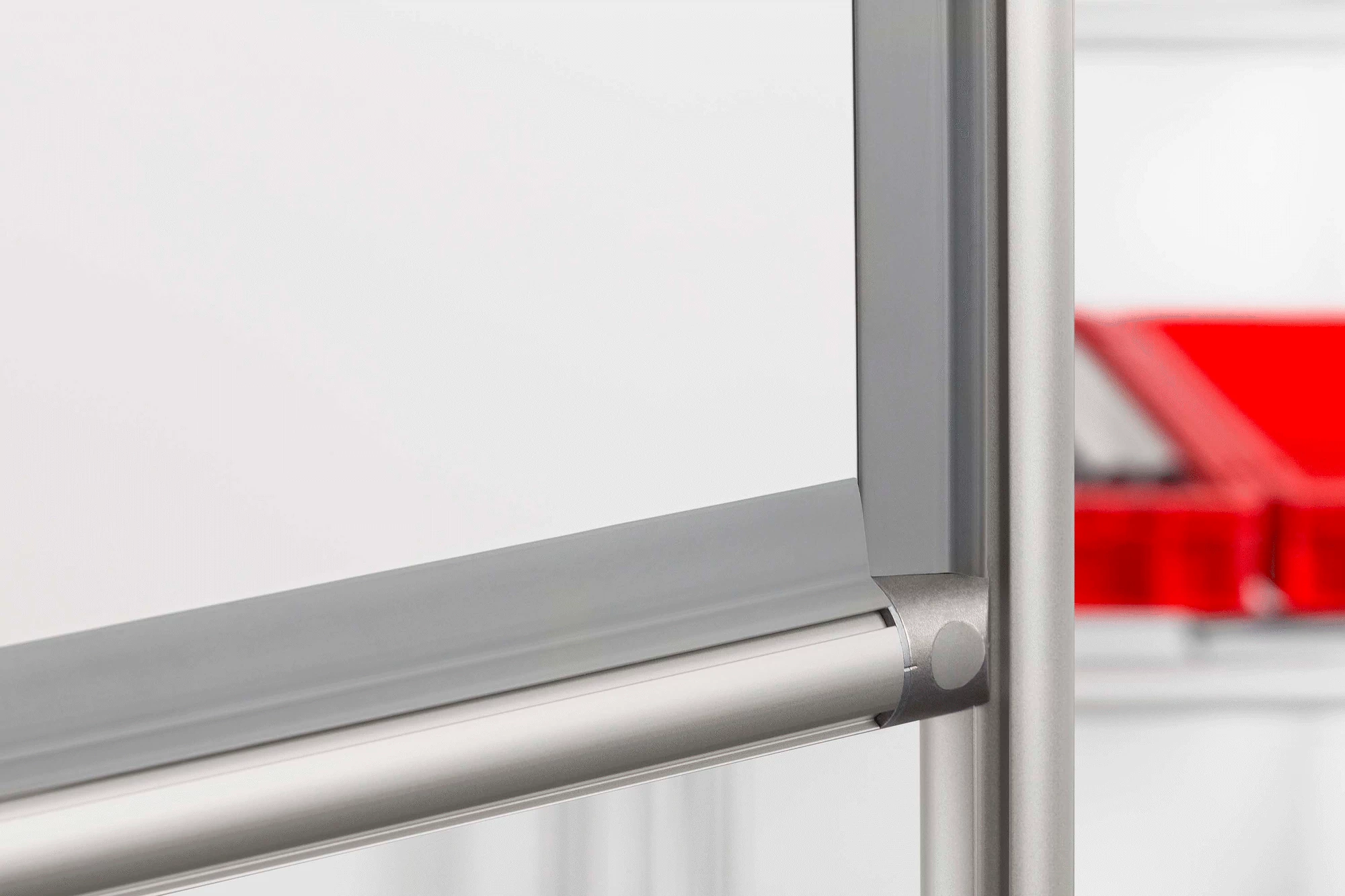

For no-fuss panel fixing! To make it easier to assemble panels, Panel-Fixing Strip D30 comprises two parts. The main element of the Panel-Fixing Strip is clipped onto the Profile Tube D30. The panel element is then easily inserted into position. Panel-Fixing Strip D30 1-4mm is then pressed in at the side as the second element. The rattle-free panel fixing is then complete! Panel-Fixing Strip D30 creates an all-round, virtually sealed fixing for panels in a thickness between 1 and 4 mm. The plastic prevents direct contact between the panel elements and the supporting profile. This helps to lower noise levels. The Panel-Fixing Strips can be cut to size using the item Multi-Purpose Pliers. The first time they are used, Panel-Fixing Strip D30 and Panel-Fixing Strip D30 1-4mm should be ordered together in identical quantities. They can then be ordered separately as spare parts.
