| Määrake CAD-vorming |
|---|
Eelvaade
Paneel-Fixing Profiil D30 3-5mm, hall sarnane RAL 7042-ga
Konfigureeritud tooteandmed
Midagi ei ole veel genereeritud
Enne hinnapakkumise taotlemist peate oma toote allpool konfigureerima.Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Ei |
| Kaal | m = 97 g/m |
| Delivery unit | cut-off max. 3000 mm |
| Materjal | PP |
| Colour | hall sarnane RAL 7042 värviga |

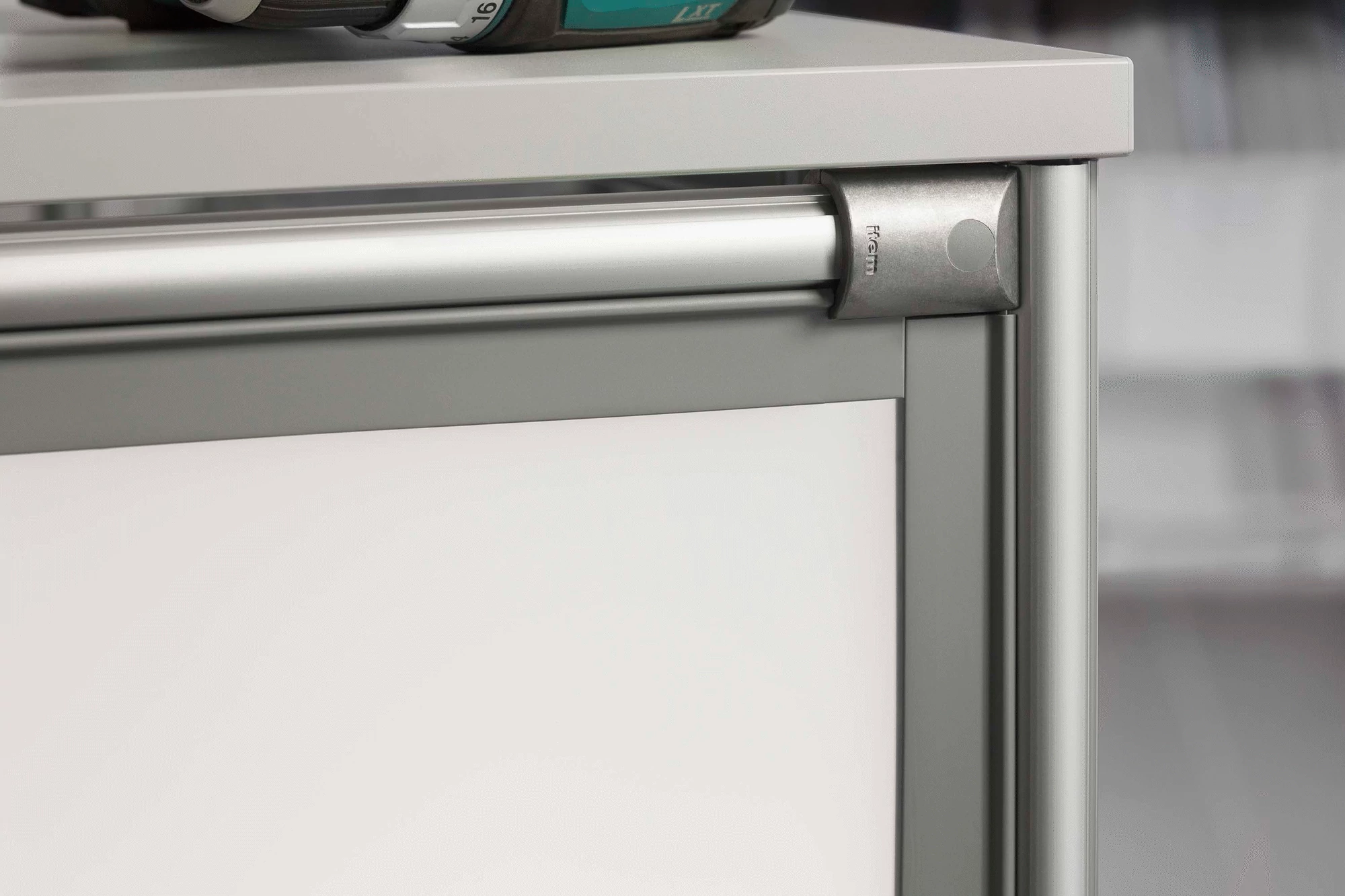

The quickest way to fasten a panel. The Panel-Fixing Profile is pushed onto a Profile Tube D30 and a panel element that is between 3 and 5 mm thick is slotted into it. Job done! Fitting these profiles around all the edges of the panel produces the necessary holding force. And the all-round, virtually sealed fastening also provides added protection from splashes and dirt. The Panel-Fixing Profile stops the panel element coming into direct contact with the support profile, which helps reduce noise levels. The Panel-Fixing Profile can be easily cut to size using the item Multi-Purpose Pliers. The black colouring of the plastic shows that the product has an electrostatically dissipative (ESD) design.
