Panel-Clamping Strip 10 Al, natural

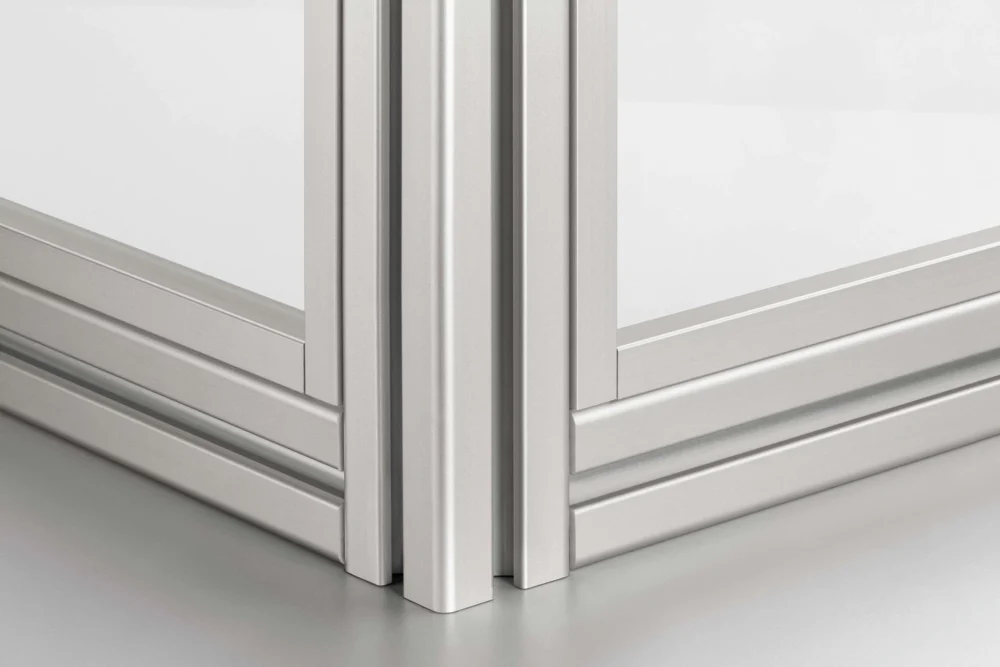

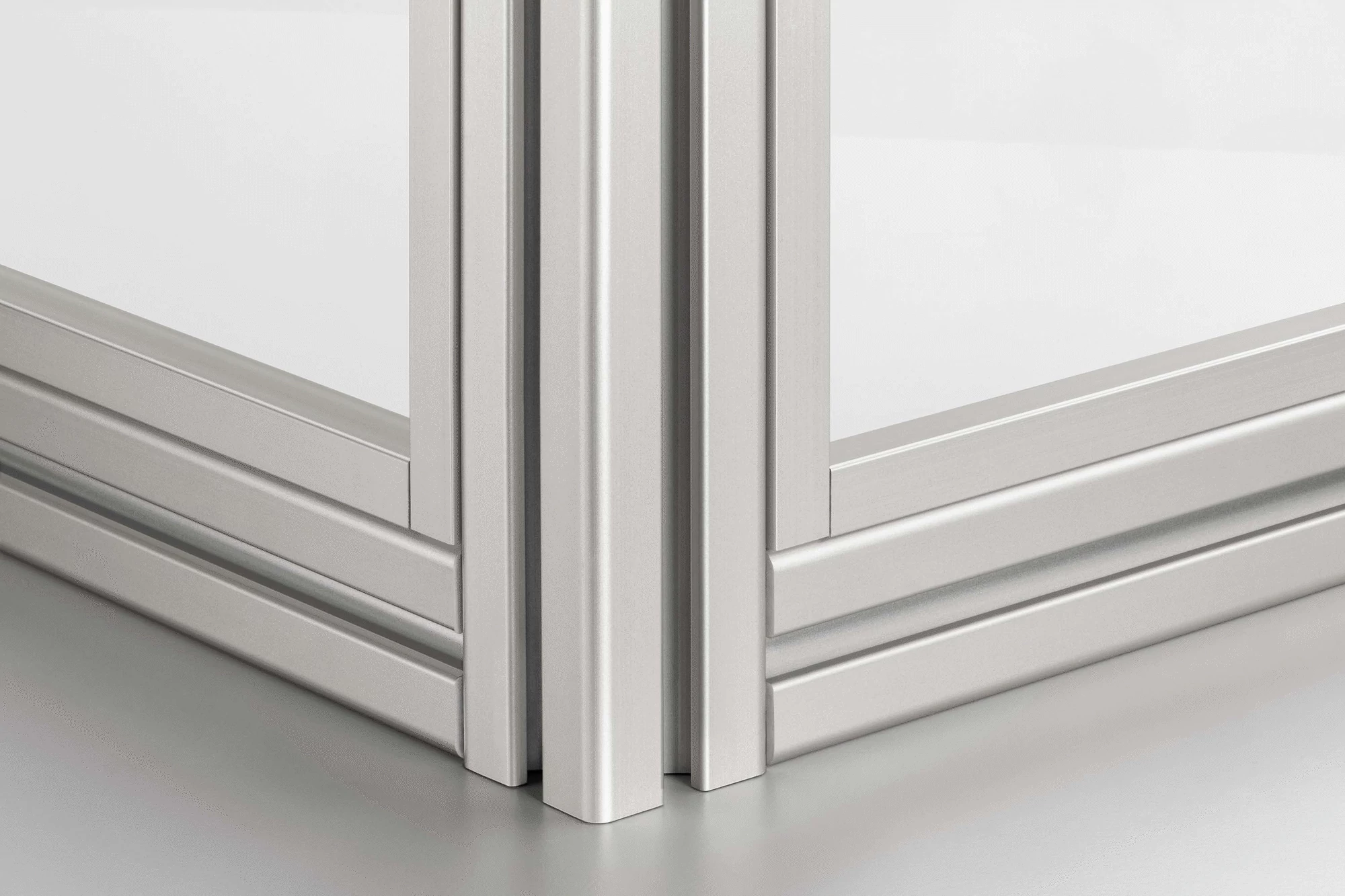

Simply retrofit a panel into a closed profile frame. Panel-Clamping Strips 10 are ideal for retrofitting panel elements (preferably made of Acrylic Glass, PET-G or Polycarbonate) into a closed profile frame. Apart from straight saw cuts, no further machining of the panel element or Panel-Clamping Strips is required if the profile frame is connected with Central-Fastening Sets 10. The Panel-Clamping Strip consists of two components. The first of these, an aluminium strip, locates into the profile groove and holds the panel element in place. A second strip, of flexible plastic, is then used to secure both the panel element and the aluminium strip in the groove. If necessary, the plastic strip can be levered out in order to remove the panel element from the frame.

The Panel-Clamping Strips secure the panel element so that it is offset from the outer edge of the profile by 2 mm . This produces a smooth outer wall for protective enclosures and helps reduce turbulence caused by air flows.
