| Mounting Box K76 M45 3 Gang, grey | CADPDFRFQ |

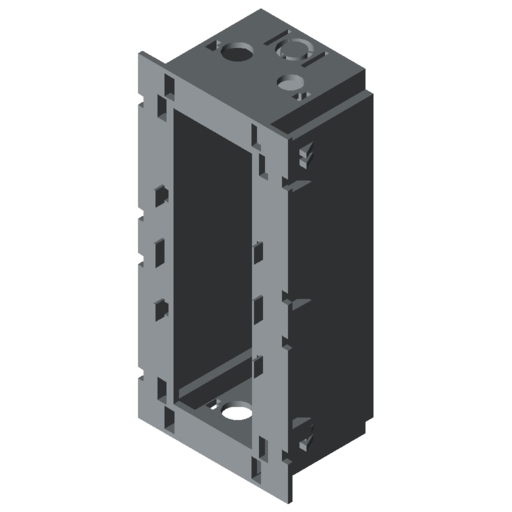

Preview
Mounting Box K76 M45 3 Gang, grey
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 103 g |
| Delivery unit | 1 pce. |
| Material | PA |
| Colour | grey |

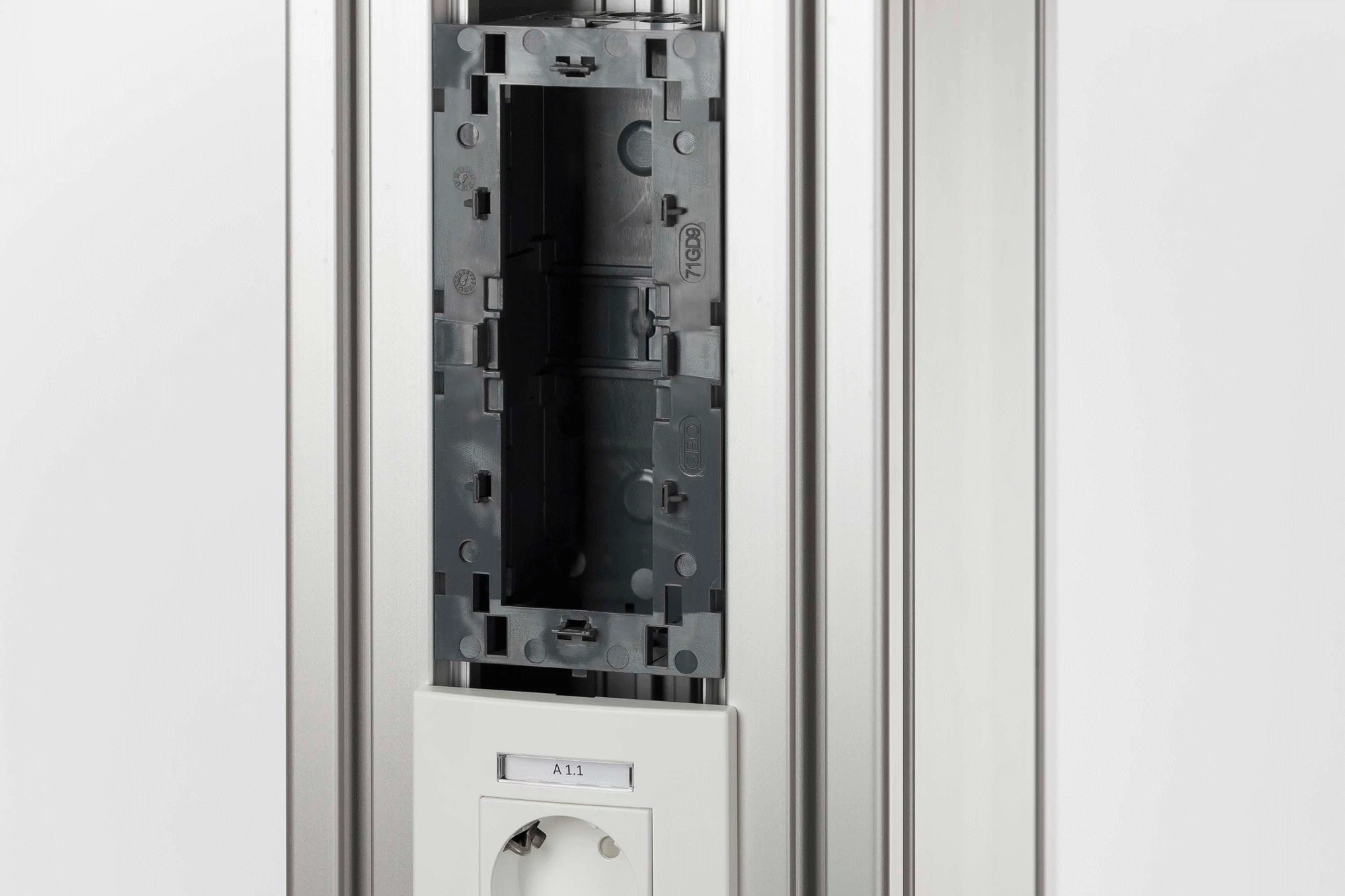

The universal solution for fitting M45 installation devices to the item installation profiles. The front-locking Mounting Box can be inserted at any point on the cable conduit. The lower part of the Mounting Box can be folded back and even removed so that cables can be connected quickly. The feed openings are designed to accommodate cables up to 14 mm in diameter. The Mounting Boxes have been designed to support the speedy installation of Sockets, Switches and connections based on the Modul 45 (M45) system.
