Direct-Fastening Set 8, bright zinc-plated
Fastener, cast steel Countersunk Screw DIN 7991-M6x20, St Hexagon Socket Head Cap Screw DIN 7984-M6x14, St Spacer sleeve, POM, black T-Slot Nut 8 St M6
Scope of Delivery
Fastener, cast steel Countersunk Screw DIN 7991-M6x20, St Hexagon Socket Head Cap Screw DIN 7984-M6x14, St Spacer sleeve, POM, black T-Slot Nut 8 St M6
Properties
| line 8 | line 8 |
|---|---|
| Property | bright zinc-plated |
| ESD-safe | Yes |
| Weight | m = 37 g |
| Delivery unit | 1 set |
| Tightening torque, bright zinc-plated | Mbz-p = 5.5 Nm |

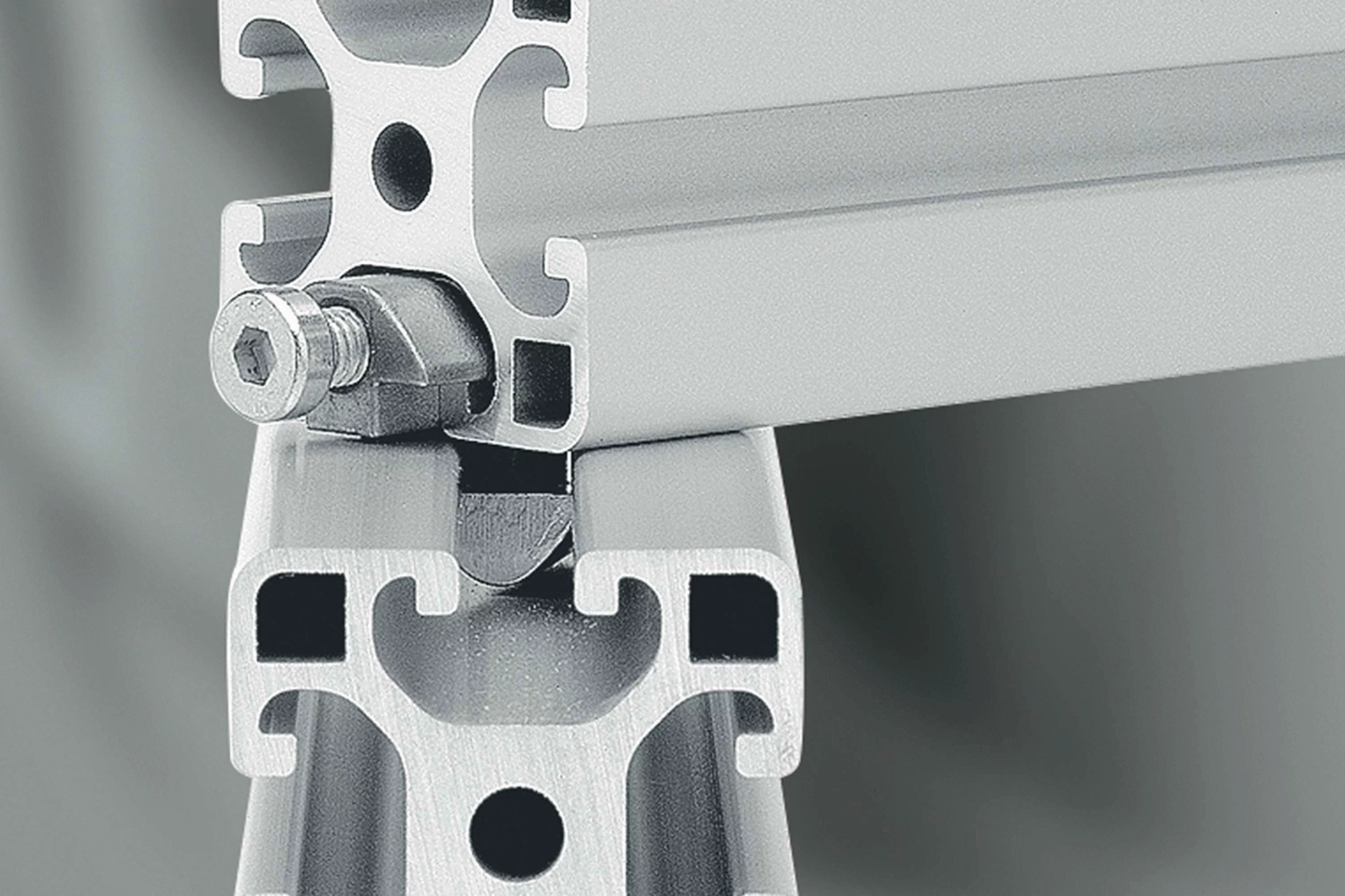

Power-lock connection (without machining) of two Profiles 8 that touch along their outer faces. The profiles can also run in parallel over a certain distance. Both profiles can be moved in the direction of the groove. The Direct-Fastening Set is particularly suitable for connecting the profiles of ball-bush block guides with other profiles, so that the profiles can be moved and no machining is required. Note: Where anodized surfaces are to be fitted together, we recommend greasing the contact points. This minimises the level of noise generated.
Installation note: Loosen the Cap Screw to maximise the adjustment range of the wedge and gently tighten the Countersunk Screw. Push the profiles together and tension the Direct-Fastening Set by tightening the Cap Screw.
