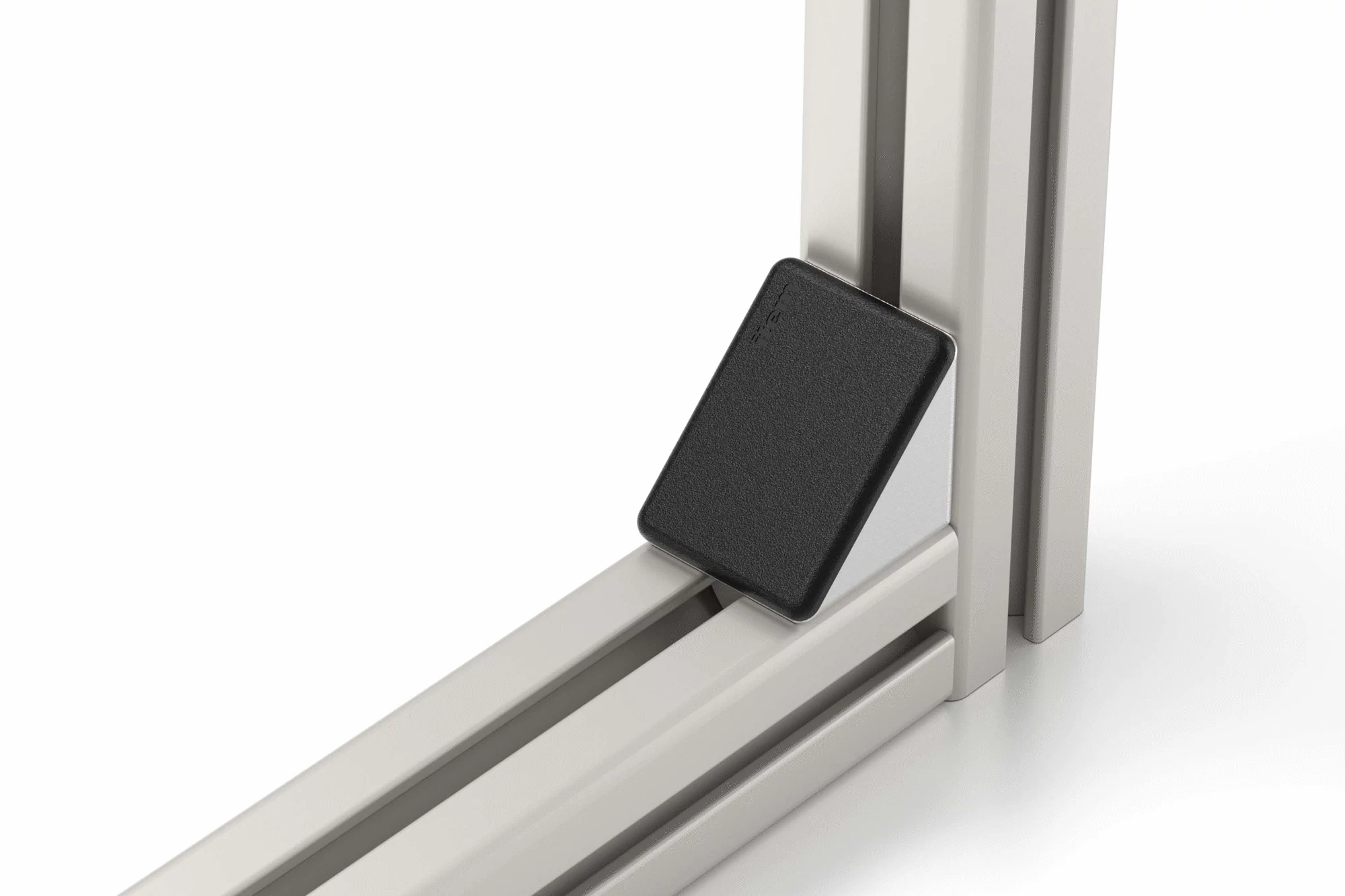

Angle Bracket Set 6 30×30

Angle Bracket 6 30×30 Zn, die-cast zinc, RAL9006 Angle Bracket Cap 6 30×30, PA, black 2 Button-Head Screws ISO 7380-M6x14, St, bright zinc-pl. 2 Washers 10.5×10.5×1.3, St, bright zinc-plated 2 T-Slot Nuts 6 St M6, bright zinc-plated

Tootekood: 0.0.419.67 Kategooria: Silt:
Set CAD-format
Angle Bracket Set 6 30×30CADPDFRFQ

Preview

Scope of Delivery

Angle Bracket 6 30x30 Zn, die-cast zinc, RAL9006 Angle Bracket Cap 6 30x30, PA, black 2 Button-Head Screws ISO 7380-M6x14, St, bright zinc-pl. 2 Washers 10.5x10.5x1.3, St, bright zinc-plated 2 T-Slot Nuts 6 St M6, bright zinc-plated

Properties

line 6line 6
ESD-safeNo
Weightm = 66 g
Delivery unit1 set
For power-lock connection (without machining) between profiles, reinforcing profile connections or for fastening a range of components to profiles.
Angle Brackets are ideal for connecting cable conduits. The rounded internal edge prevents damage to the cables.
When used to reinforce the joints of large profiles or conduits, several Angle Brackets can be used in parallel. Note: Ensure the maximum permissible tensile load on the Profile Groove is not exceeded! For Angle Brackets of Lines 6, 8 and 12, special square washers are used to improve the application of the clamping force.
MB Building Kit System
