Angle Fastener 8 80×40-45°/40

Angle Fastener 8 Zn, die-cast zinc, RAL 9006, white aluminium 4 Button-Head Screws ISO 7380-M8x18, St, bright zinc-plated 4 washers ISO 7089 – 8 – 200 HV, bright zinc-plated 2 T-Slot Nuts 8 St M8, bright zinc-plated a = 87.0 mm b = 8.5 mm

Tootekood: 0.0.688.70 Kategooria: Silt:
Set CAD-format
Angle Fastener 8 80×40-45°/40CADPDFRFQ

Preview

Scope of Delivery

Angle Fastener 8 Zn, die-cast zinc, RAL 9006, white aluminium 4 Button-Head Screws ISO 7380-M8x18, St, bright zinc-plated 4 washers ISO 7089 - 8 - 200 HV, bright zinc-plated 2 T-Slot Nuts 8 St M8, bright zinc-plated a = 87.0 mm b = 8.5 mm

Properties

line 8line 8
ESD-safeNo
Weightm = 470 g
Delivery unit1 set

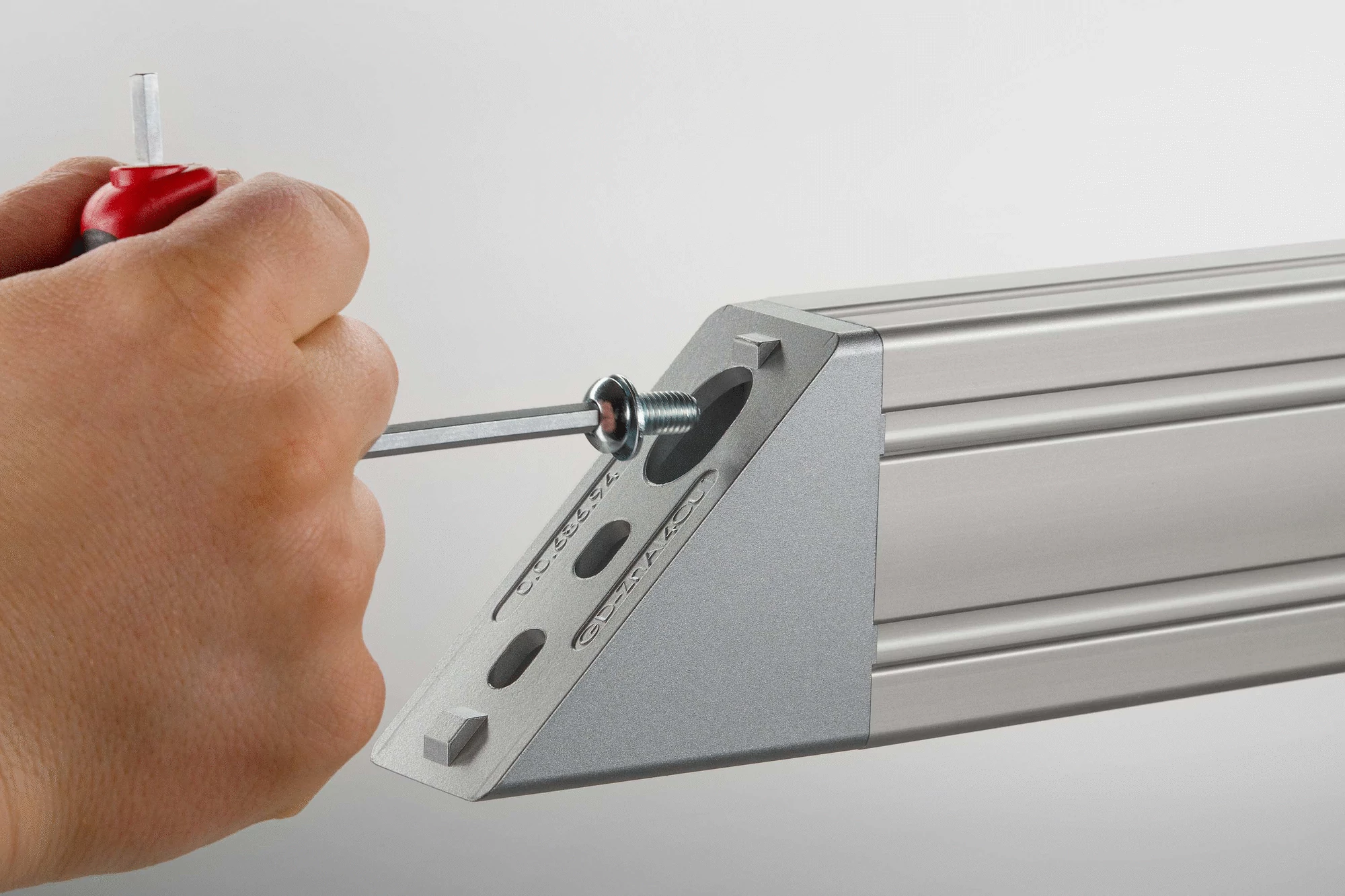

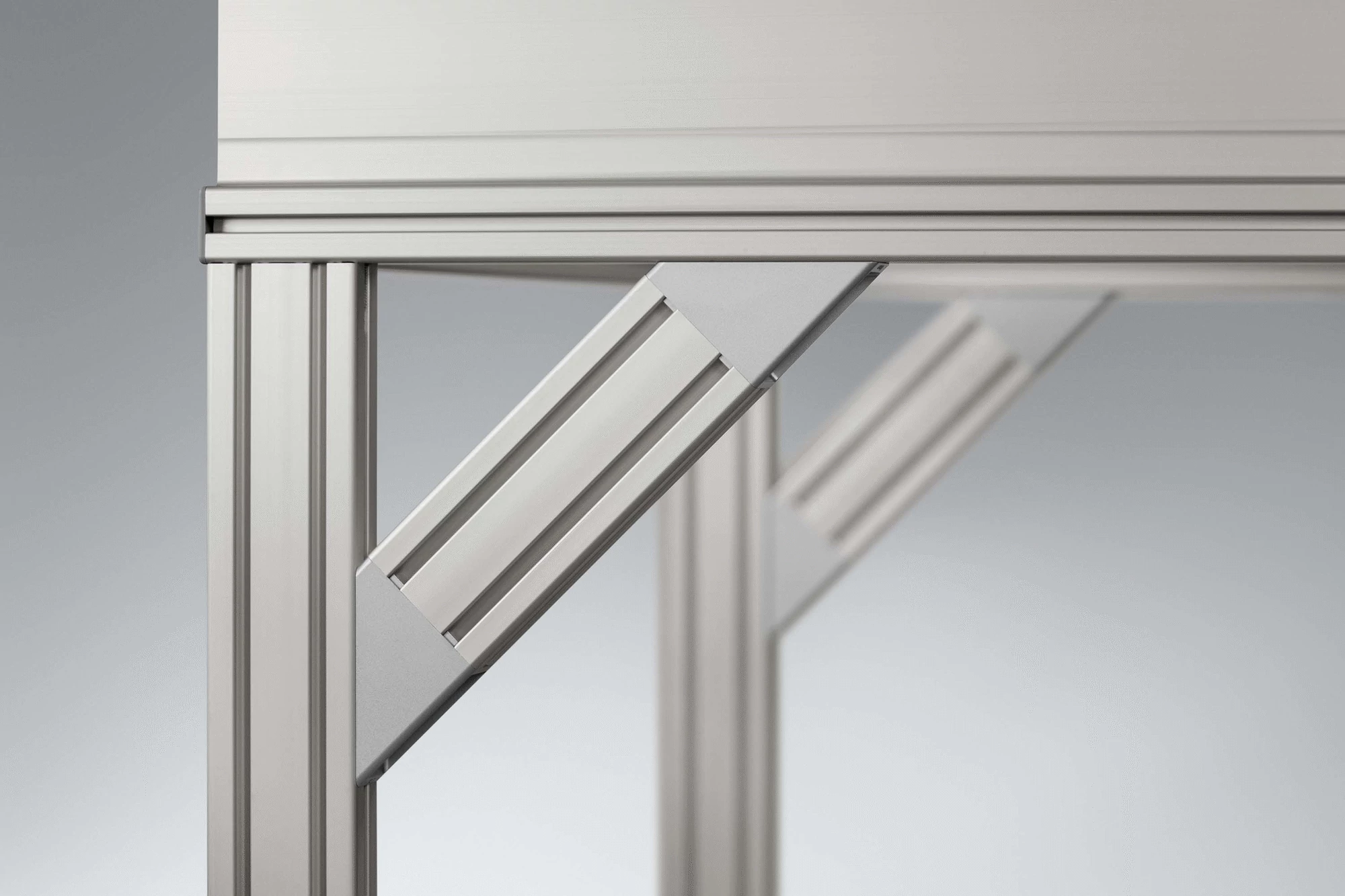

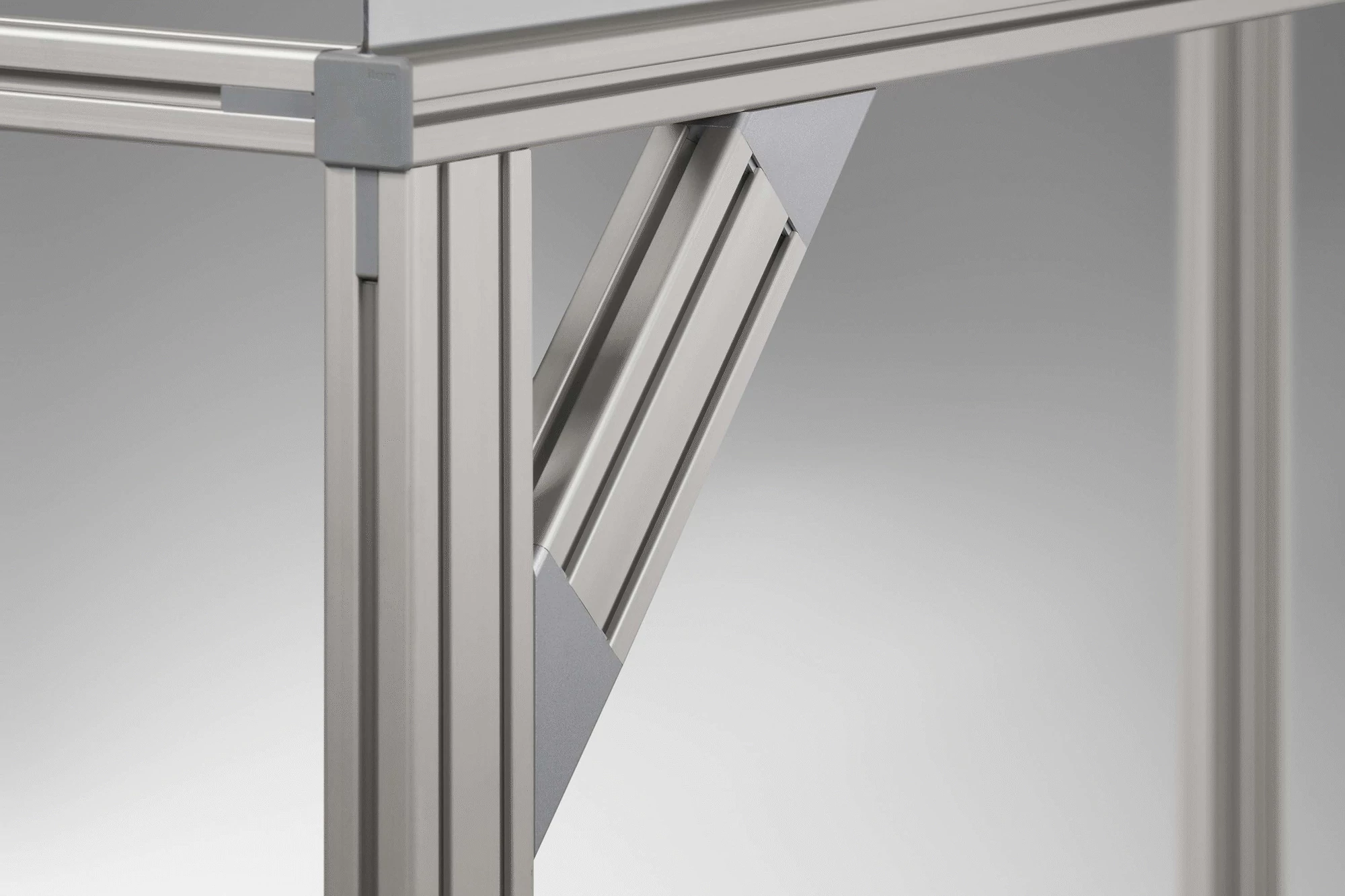

More hold and less hassle! item Angle Fasteners are used to make 45° struts in next to no time. Simply screw an Angle Fastener to the core bore on each end of a profile and then attach to the frame – no mitre cuts required. The fasteners can also be retrofitted. item Angle Fasteners are ideal for building trusses, diagonal struts and for adding rigidity to frames. The following variants are available to suit various support struts and frames: Angle Fastener 6 30x30-45° for attaching a Profile 6 30x30 to a Line 6 groove (0.0.688.68) Angle Fastener 8 80x40-45°/80 for attaching a Profile 8 80x40 to two Line 8 grooves in a horizontal arrangement (0.0.688.69) Angle Fastener 8 80x40-45°/40 for attaching a Profile 8 80x40 to a Line 8 groove in a vertical arrangement (0.0.688.70) Angle Fastener 8 40x40-45° for attaching a Profile 8 40x40 to a Line 8 groove (0.0.677.56)

Calculating strut length L: a = 88.1 mm b = 8.1 mm c = 111.7 mm
