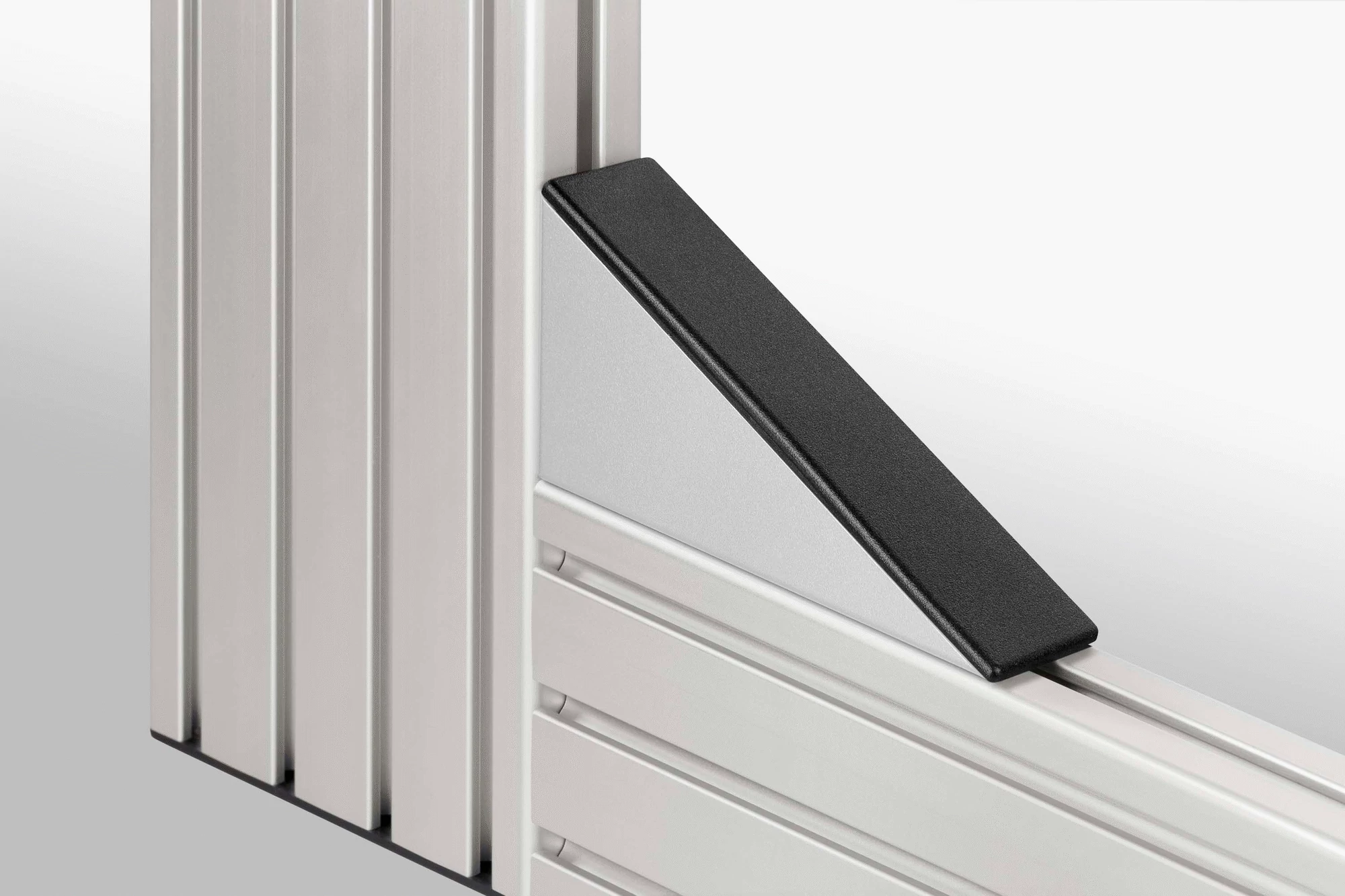

Angle Bracket 8 160×80 Zn, white aluminium, similar to RAL 9006

For power-lock connection (without machining) between profiles, reinforcing profile connections or for fastening a range of components to profiles.

Angle Brackets are ideal for connecting cable conduits. The rounded internal edge prevents damage to the cables.

When used to reinforce the joints of large profiles or conduits, several Angle Brackets can be used in parallel. Note: Ensure the maximum permissible tensile load on the Profile Groove is not exceeded! For Angle Brackets of Lines 6, 8 and 12, special square washers are used to improve the application of the clamping force. F < 2,000 N ^ F x l < 150 Nm The load-carrying capacity is to be checked to ensure both conditions are met.
