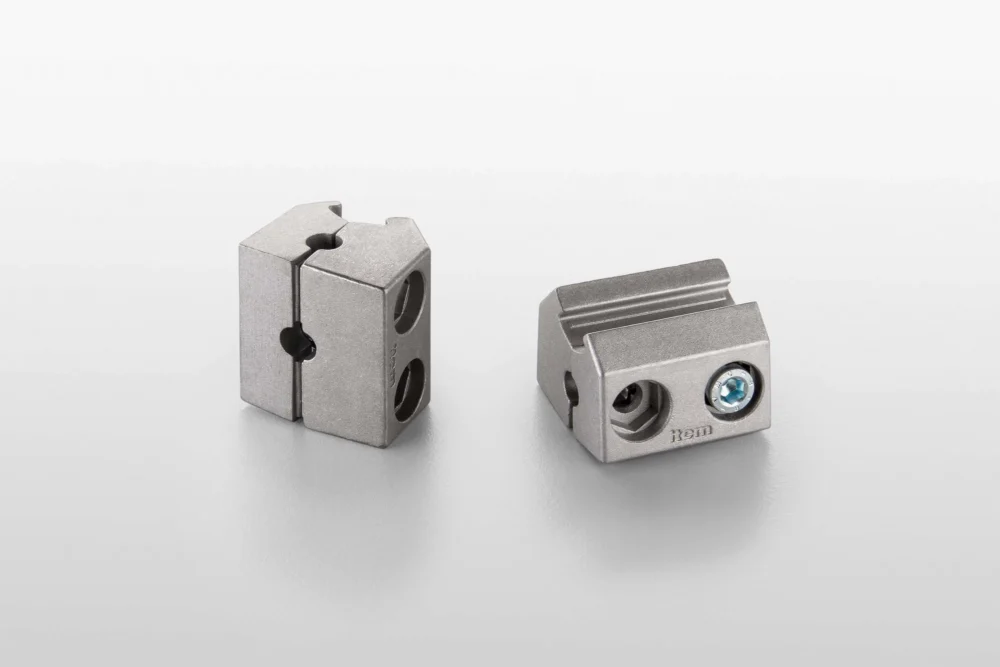

Multiblock D30
Multiblock D30 half M6 K, die-cast aluminium, natural Multiblock D30 half M6 G, die-cast aluminium, natural Square nut DIN 557-M6-5, St, bright zinc-plated 2 hexagon nuts DIN 934 M6-I8I, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912-M6x22, St, bright zinc-plated
Scope of Delivery
Multiblock D30 half M6 K, die-cast aluminium, natural Multiblock D30 half M6 G, die-cast aluminium, natural Square nut DIN 557-M6-5, St, bright zinc-plated 2 hexagon nuts DIN 934 M6-I8I, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912-M6x22, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 71.5 g |
| Delivery unit | 1 set |
| Material | Al, anodized |

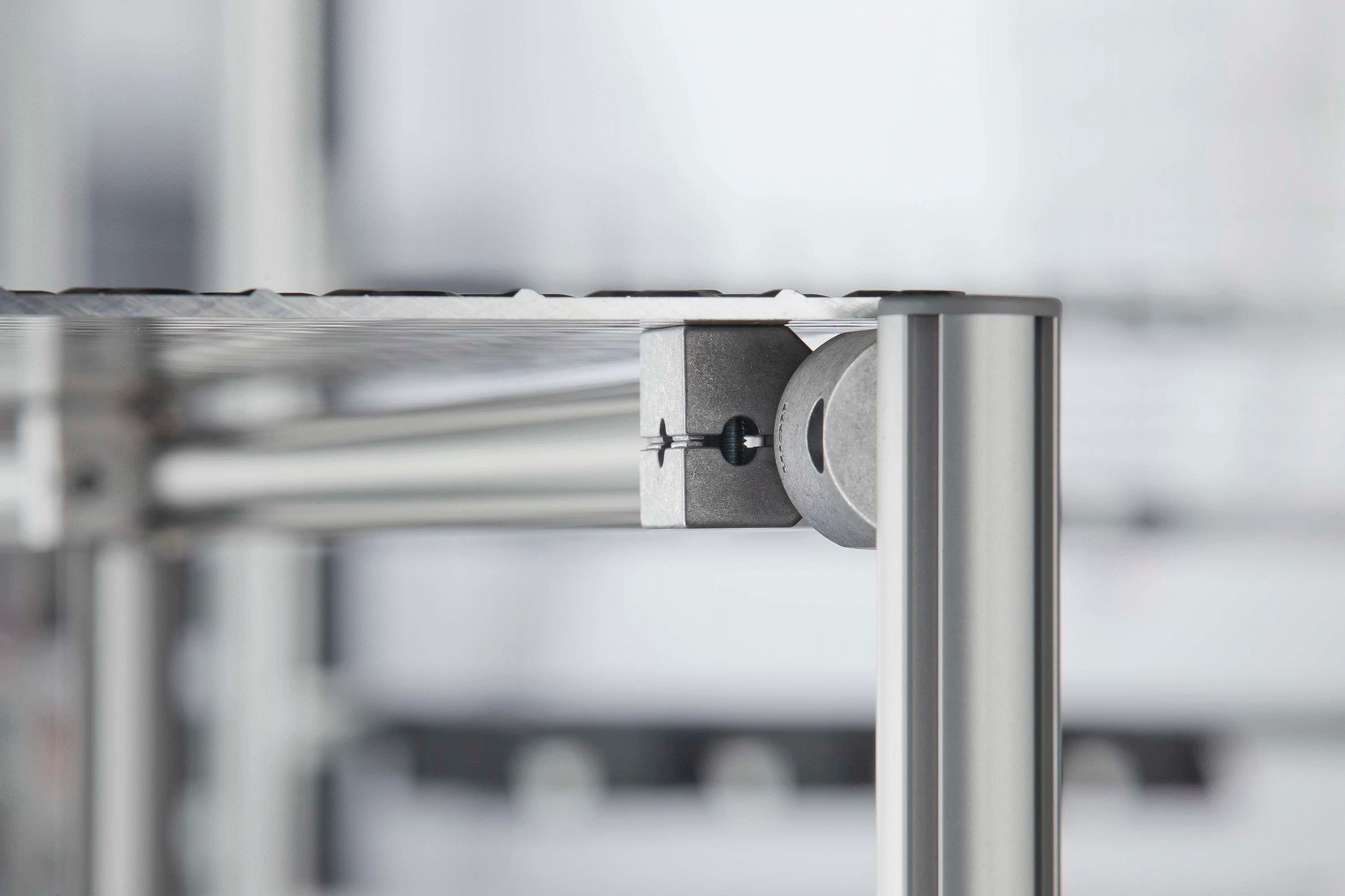

The all-rounder for fastenings of all types: Strong Multiblock D30 made of aluminium can be used to reliably connect panel elements and all sorts of components. Attachments can be screwed to five sides. The two halves of Multiblock D30 have different heights, which ensures the fixing can be made with the perfect fit. Levels can be varied depending on how the fastener is oriented, which is useful when compensating for the height difference associated with Fastener D30, for example. Multiblock D30 is fastened to a Profile Tube D30 or Profile 6 D30. A Tube Adapter D30 is required to fit it to a Tube D30. Caps D30 F can be used to cover over the screw fixings of Multiblock D30. Up to four can be used on each Multiblock.
1. Fastening a panel to a vertical profile
2. Fastening a panel along the length of a profile, clearance 0 and 5 mm
3. Fastening a panel along the length of a profile, clearance 20 mm
