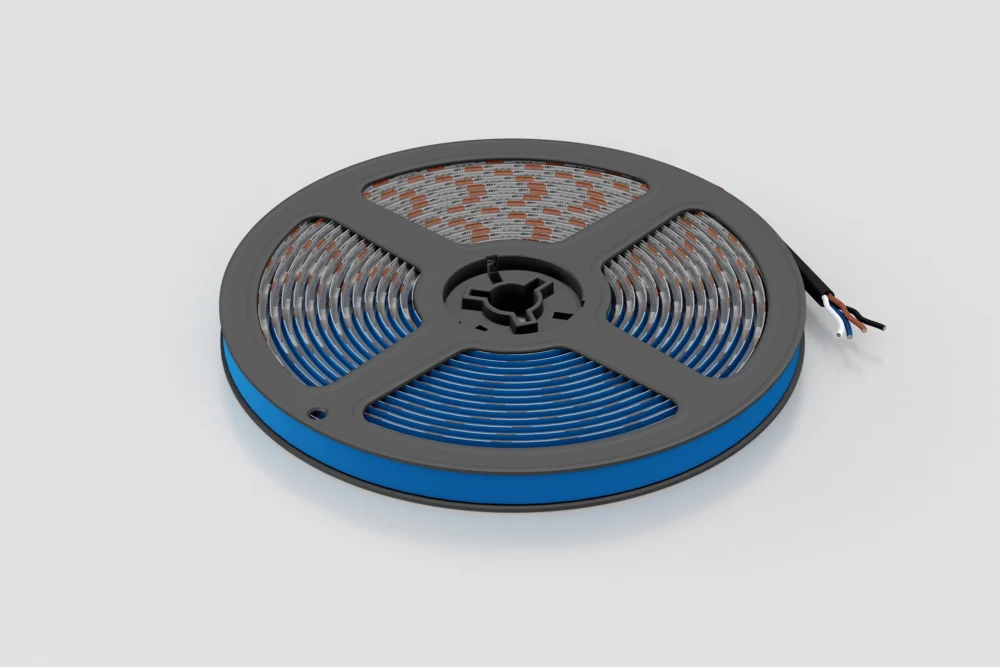

| Multi-Segment RGB LED Strip 6m | CADPDFRFQ |
Preview
Properties
| ESD-safe | No |
|---|---|
| Weight | m = 235 g |
| Ambient temperature (during operation) | -20 °C … +70 °C |
| Protection class | IP 65 |
| Supply voltage | . = 12 VDC |
| Lifetime | Lh = 50.000 h (L80/B10) |
| LED power | 7,5 W/m |
| Delivery unit | 1 pce., length 6000 mm |
Multi-Segment RGB LED Strip 6m is a flexible strip of LEDs that can be used to signal statuses in production and logistics operations. The LED strip can be connected to Multi-Segment RGB LED Strip Controller IO-Link 24VDC (0.0.721.35) using Connector M12 4P (0.0.718.00). The LED strip is controlled via custom parametrisation within the controller’s predefined operating modes.
The LED strip can be shortened in sections of 17 mm and is installed in a Line 8 groove using LED Casing Profile 8 (0.0.718.15) and LED Casing Profile 8 14x5, Cap (0.0.719.68).
