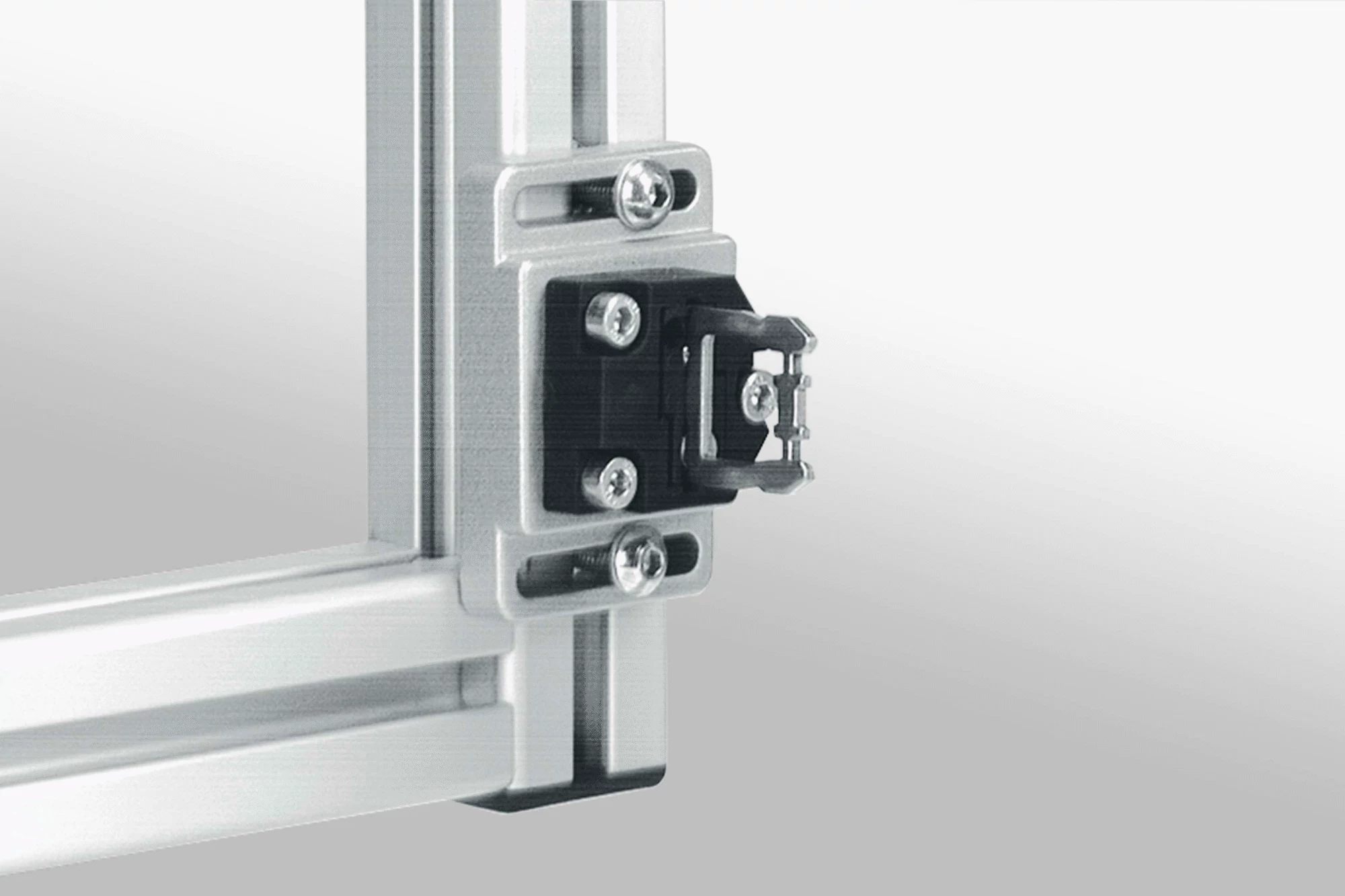

Movable Actuator for Security Limit Switch / Lock compact

Compact Security Limit Switch and Security Lock for electrical and mechanical securing of swing, lifting and sliding doors. When the actuator is pressed in, the contact is closed. The Security Lock, working on the zero-current principle, also locks the actuator at the same time when appropriately wired. This mechanically prevents the doors from being opened even in the event of a power failure or impermissible operating states. In the event of an emergency, the Security Lock can be opened without power using the supplied triangular socket wrench.

The actuator is available in two models – the fixed design is suitable for medium-sized sliding and swing doors (door width greater than 500 mm and smaller than 1000 mm), while the movable actuator is recommended for swing doors of width < 500 mm (angle compensation) and for particularly large doors. Design complies with EN ISO 13849-1

Fastening Set 6-8 is suitable for universal fastening of the Security Limit Switch/Security Lock compact and the actuator to Profiles 6 and/or 8. The slots allow customised adaptation to the direction of actuation and the position of the elements in relation to each other.
