| Slide Link D30 220 | CADPDFRFQ |

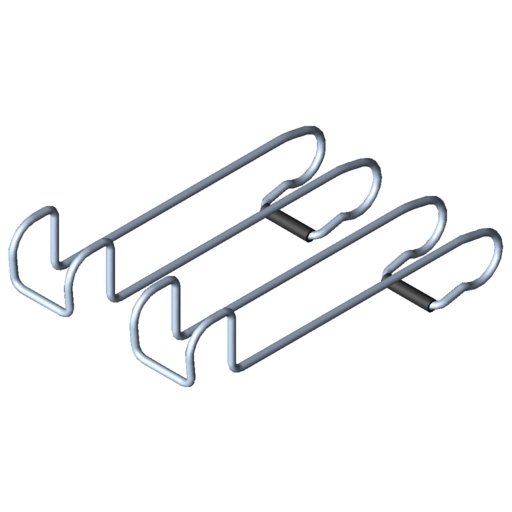

Preview
Slide Link D30 220

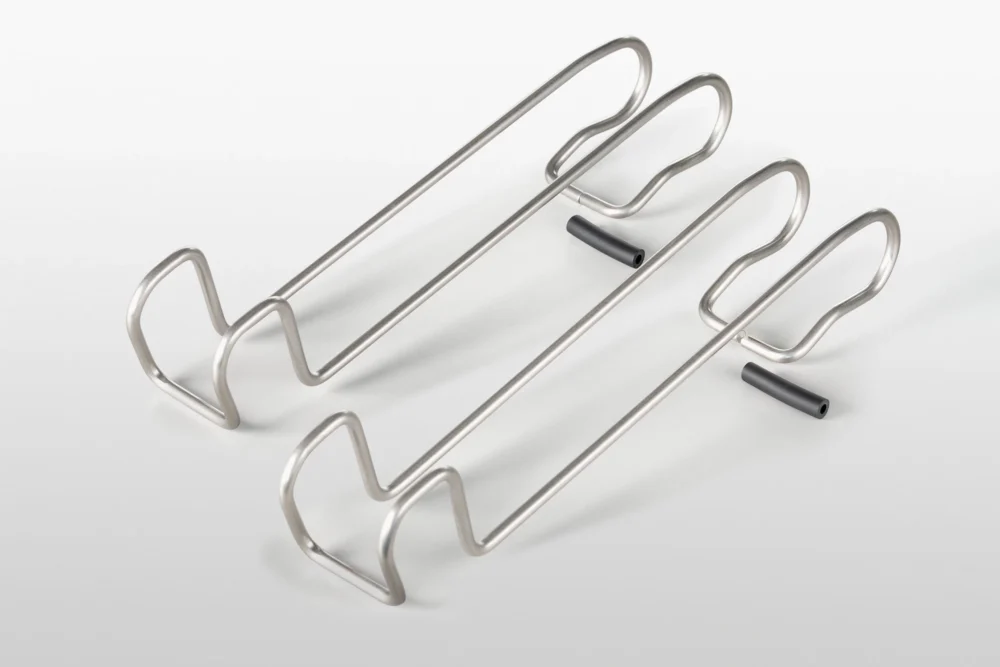

2 Slide Links 220, St, stainless 2 tubing cut-offs, CR, black l = 220 mm
Scope of Delivery
2 Slide Links 220, St, stainless 2 tubing cut-offs, CR, black l = 220 mm
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 280 g |
| Delivery unit | 1 set |

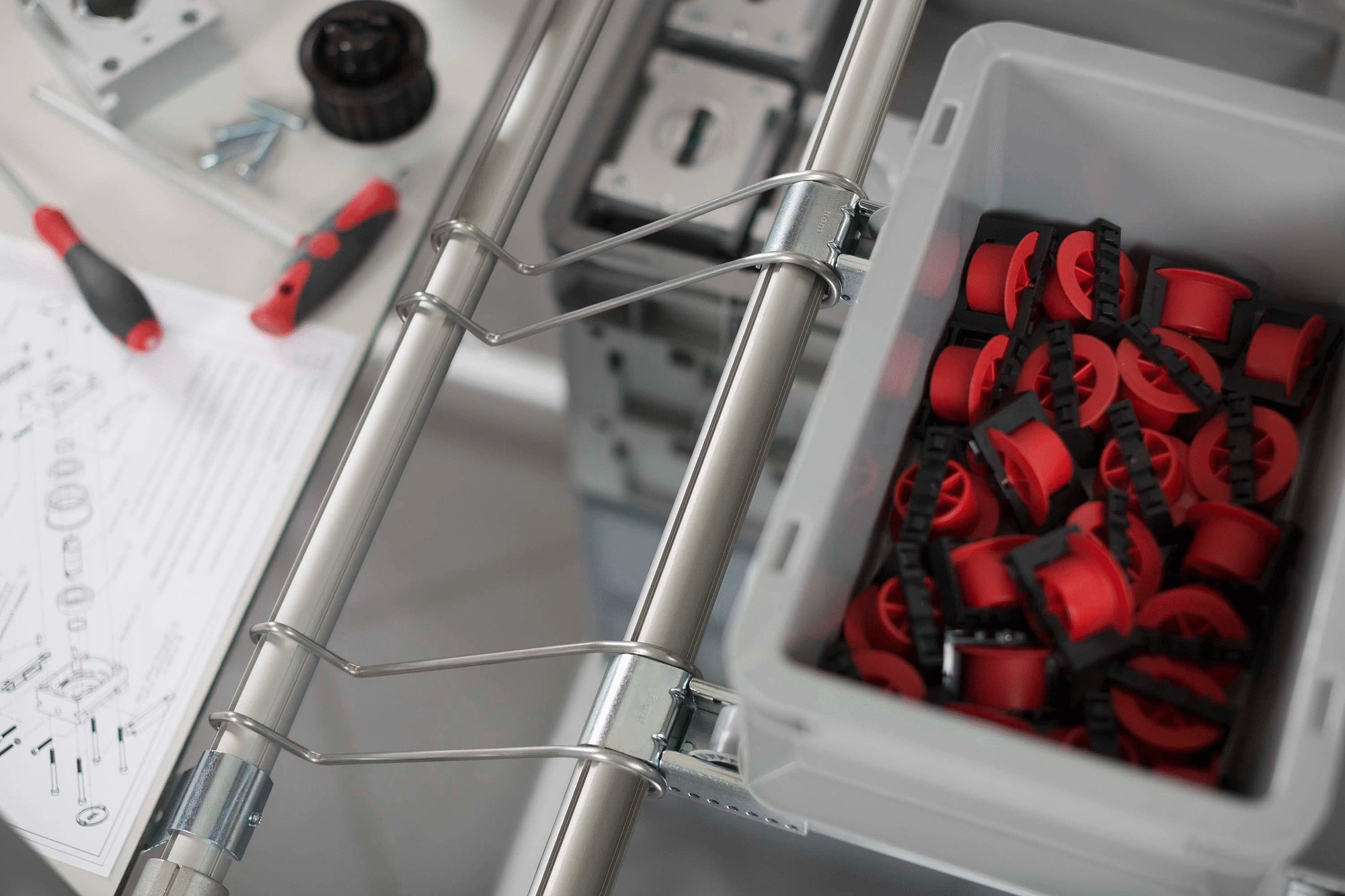

Getting containers close to hand really can be this easy: As they reach the end of the conveyor line, small load carriers glide over Slide Links D30 on the last stretch and are securely held in place by the integrated stop. These steel elements are available to suit containers with a depth of 200, 300 or 400 mm in the direction of travel. Slide Links D30 are incredibly easy to install. They are simply hung between two (profile) tubes. The top end can be fitted over Roller Conveyor Fastening Brackets that are 40 mm wide and have already been screwed into place. This means they can also be used to retrofit an angled removal point.
The length of the Slide Links has been matched to the dimensions of transport boxes. An additional section of tubing secures the top ends of the wire against lateral movement.
