| Table-Top Fastening Bracket D30 | CADPDFRFQ |
Preview

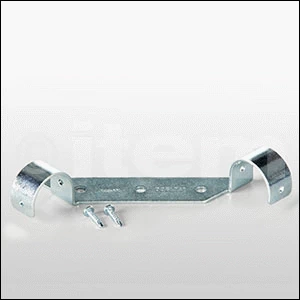

Table-Top Fastening Bracket D30
Sheet material, St, bright zinc-plated 2 Button-Head Screws, self-tapping 3.9×16, TX20, St, bright zinc-plated
Scope of Delivery
Sheet material, St, bright zinc-plated 2 Button-Head Screws, self-tapping 3.9x16, TX20, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 91 g |
| Delivery unit | 1 set |
The rapid solution for supporting horizontal panels: Position one Table-Top Fastening Bracket D30 in each corner of a D30 frame and place on top any panel material – that’s all it takes to create strong shelving for storage systems or workpiece carriers, etc. If required, Table-Top Fastening Bracket D30 can also be screwed to the panel and (Profile) Tube D30, thereby further stabilising the frame.
The table top is simply slotted into a frame made of Tubes D30 or Profiles D30. Fasteners D30 require an all-round gap of 5 mm that should be taken into account when cutting the panel to size.
