| Ball-Bearing Hinge 8 40×40 | CADPDFRFQ |
Preview
Ball-Bearing Hinge 8 40×40

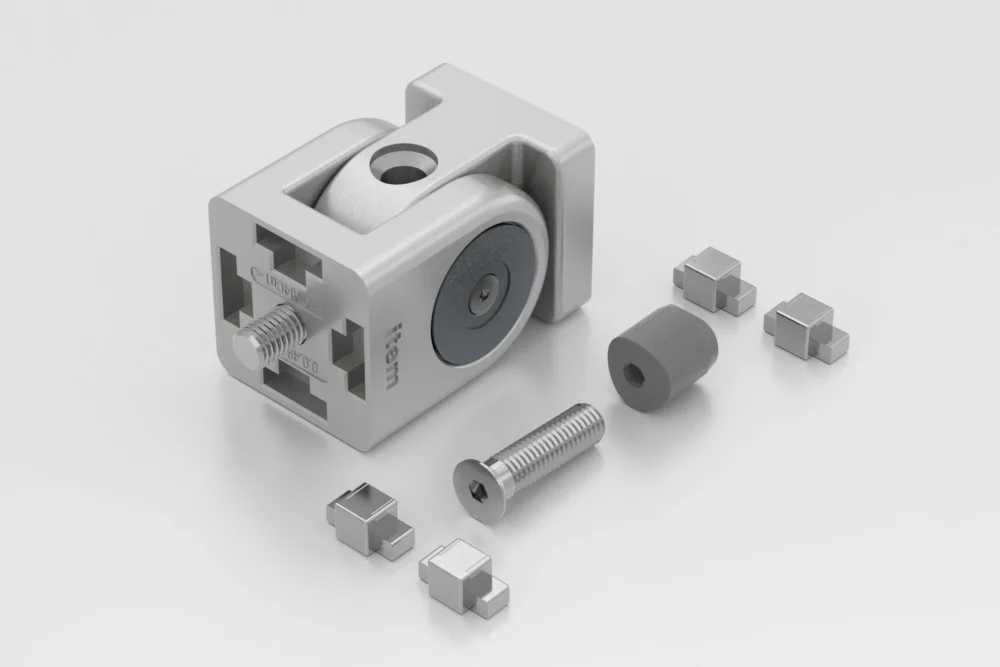

Ball-Bearing Hinge fork, die-cast zinc, RAL 9006 white aluminium Ball-Bearing Hinge bearing block, die-cast zinc, RAL 9006 white aluminium 4 anti-torsion lugs, die-cast zinc 2 fastening screws M8x16, St, bright zinc-plated Cap, PA-GF, grey Retaining screw M8, St, bright zinc-plated
Scope of Delivery
Ball-Bearing Hinge fork, die-cast zinc, RAL 9006 white aluminium Ball-Bearing Hinge bearing block, die-cast zinc, RAL 9006 white aluminium 4 anti-torsion lugs, die-cast zinc 2 fastening screws M8x16, St, bright zinc-plated Cap, PA-GF, grey Retaining screw M8, St, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 510 g |
| Delivery unit | 1 pce. |

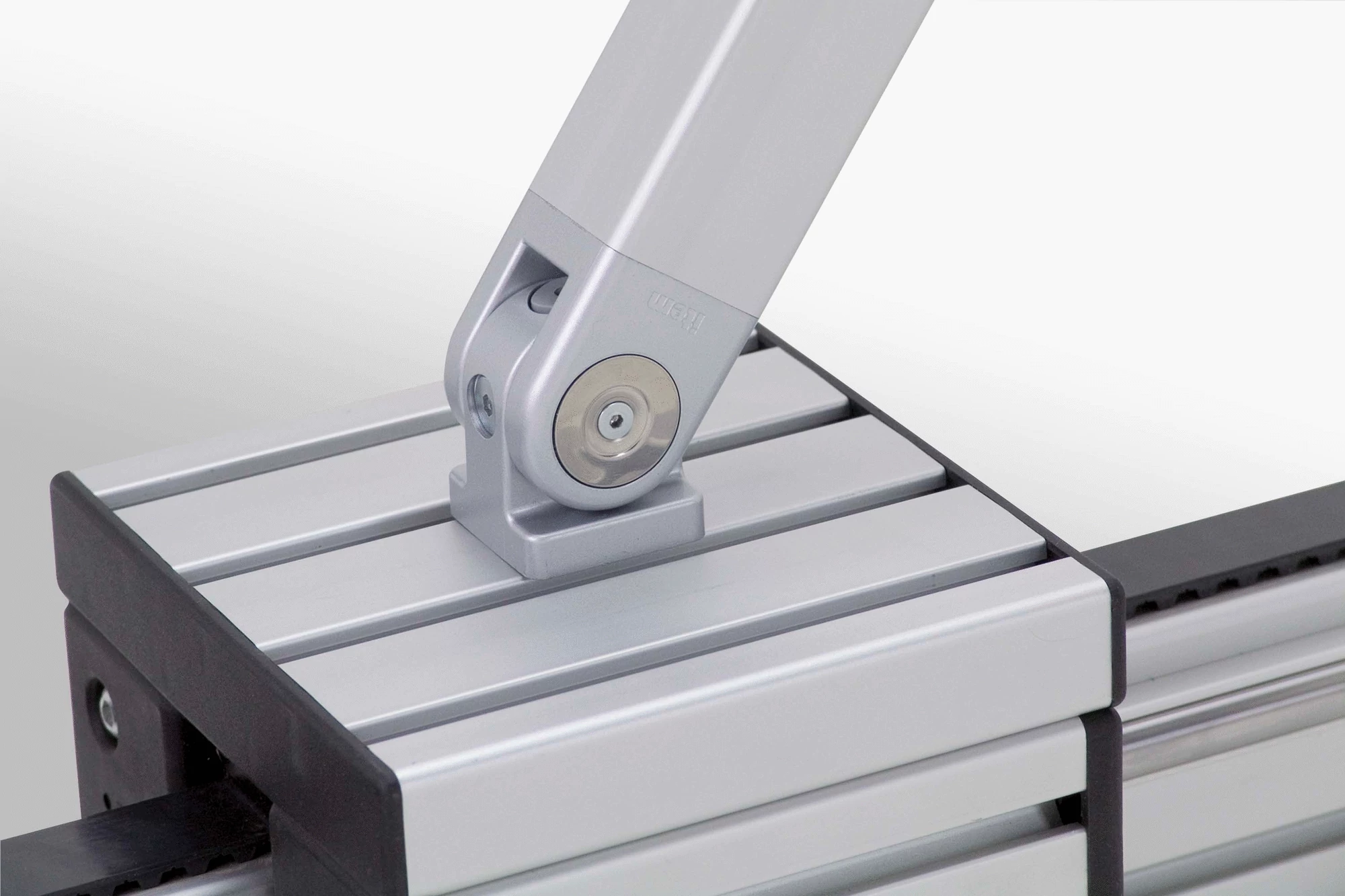

Ball-Bearing Hinge 8 40x40 is a fastening element for profiles that allows swivelling around 180°. The construction features a swivel axis with dual ball-bearing and guarantees high strength and low wear in continuous operation.
The Ball-Bearing Hinge can be screwed to any components using the integrated M8x16 fastening screws. These screws are driven through the holes in the bearing block using a 5 A/F hexagon key. To access the screws, simply remove the retaining screw from the bearing block. The Ball-Bearing Hinge does not need to be disassembled.
Permissible load: F 1max = 2500 N F 2max = 750 N M max = 45 Nm
Where there is a combination of radial (F 1 ) and axial (F 2 ) load, the total load must satisfy the following equation:
