Cap X 8 120×120-45° Al
Cap, AI, white aluminium similar to RAL 9006 3 dome-head screws M8x14, St, bright zinc-plated
Scope of Delivery
Cap, AI, white aluminium similar to RAL 9006 3 dome-head screws M8x14, St, bright zinc-plated
Properties
| Line | line X |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 166 g |
| Delivery unit | 1 set |

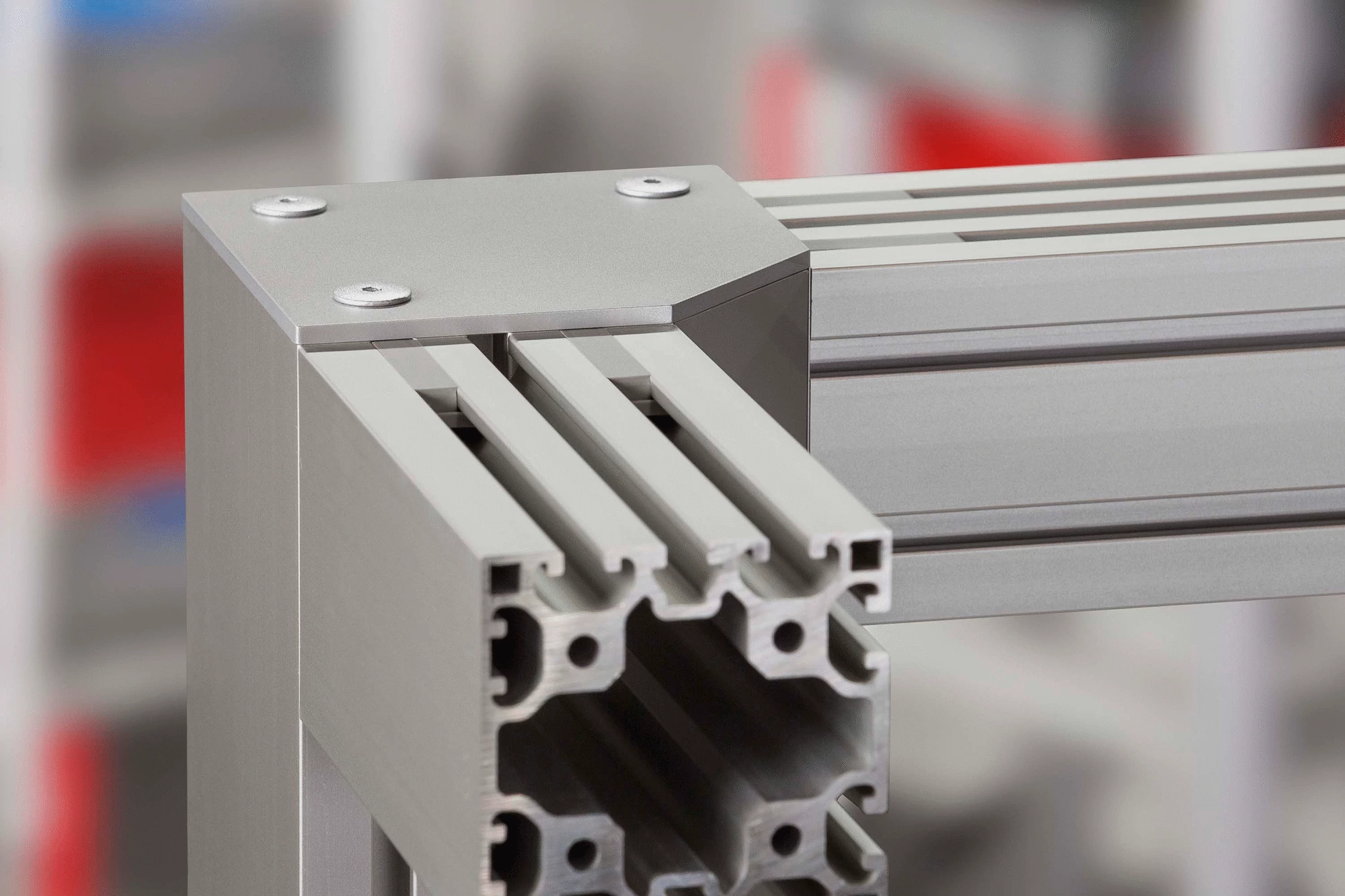

Caps are used to seal off the profiles in Line XMS, covering over cut edges and stopping dirt from penetrating the frame.
Threads need to be tapped into the core bores of the profiles in order to fix the robust aluminium Caps in place.
