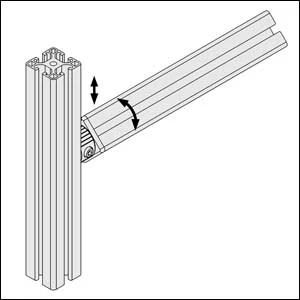

Click-Fastening Set 8 90°

Clamping profile Al, natural Clamping elements, St, stainless Locking strip, St, stainless Hex. Socket Head Cap Screw M6x25, St, bright zinc-plated Tensioning screw M8, St, bright zinc-plated Cap 8 40×40, die-cast zinc, white aluminium

Tootekood: 0.0.606.94 Kategooria: Silt:
Set CAD-format
Click-Fastening Set 8 90°CADPDFRFQ

Preview

Scope of Delivery

Clamping profile Al, natural Clamping elements, St, stainless Locking strip, St, stainless Hex. Socket Head Cap Screw M6x25, St, bright zinc-plated Tensioning screw M8, St, bright zinc-plated Cap 8 40x40, die-cast zinc, white aluminium

Properties

line 8line 8
ESD-safeYes
Weightm = 125 g
Delivery unit1 set

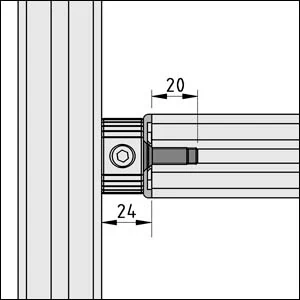

To use Click-Fastening Set 8 90°, the core bore of the Profile 8 connected via the end face must have an M8x20 tapped hole. In this case, the distance between the end face of the profile and the side of the second profile is 24 mm.
