| Bracket 8 D30 | CADPDFRFQ |
Preview
Bracket 8 D30

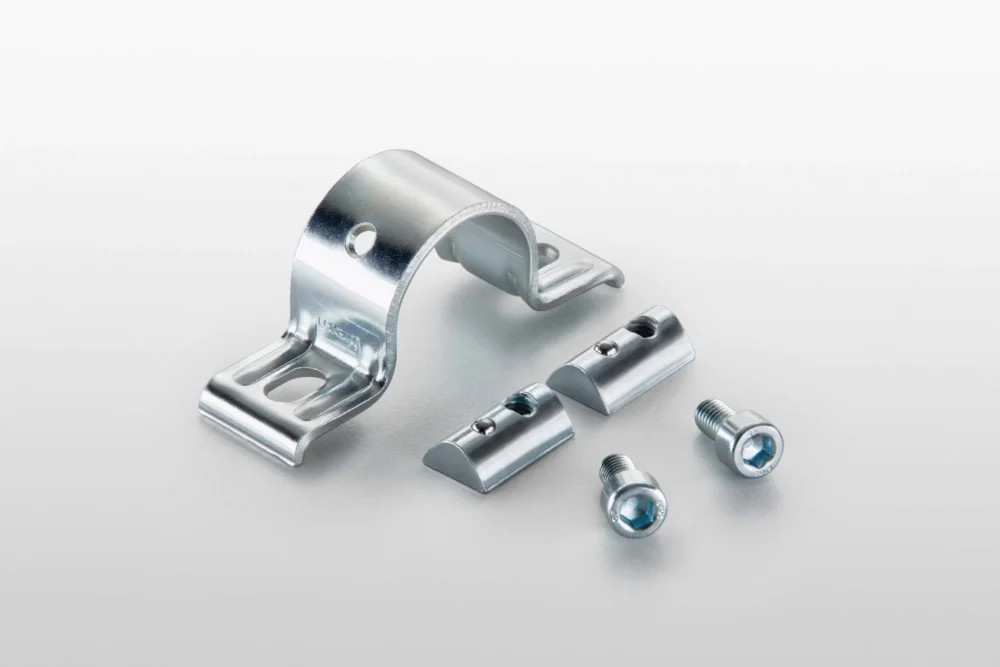

Bracket, St, bright zinc-plated 2 T-Slot Nuts 8 St M6, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912 M6x15, St, bright zinc-plated
Scope of Delivery
Bracket, St, bright zinc-plated 2 T-Slot Nuts 8 St M6, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912 M6x15, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 84 g |
| Delivery unit | 1 set |
| Torque | M = 5 Nm |

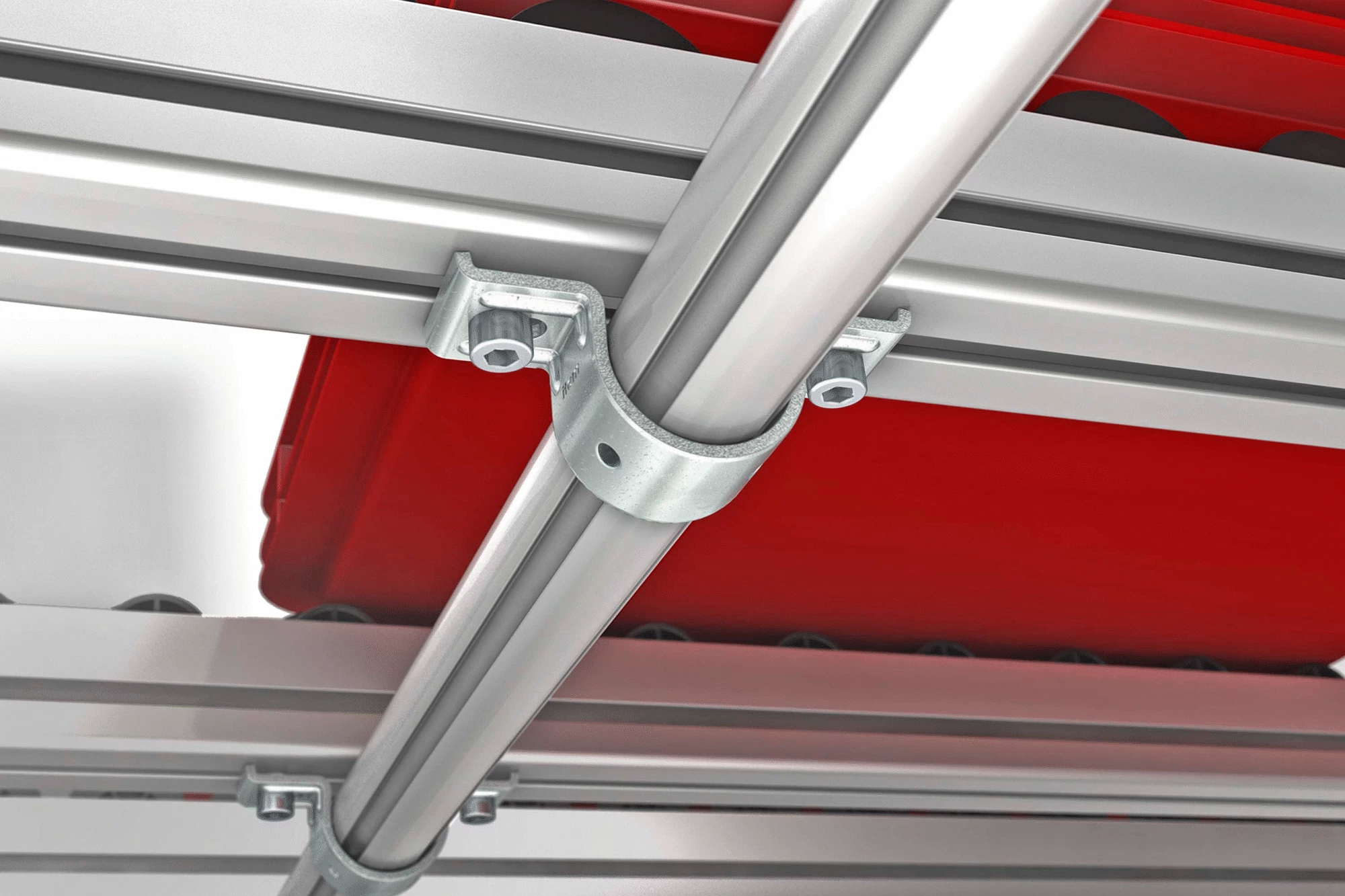

They hold in place without lifting up. Brackets 8 D30 and 6 D30 are used to form a stable connection where a tube of diameter 30 crosses any flat-face profile featuring a Line 8 or 6 groove. The Brackets are very shallow and yet extremely torsion resistant. This makes them ideal for securing Roller Conveyor 6 40x40 E D30 and Castor Rail 8 40x40 to D30 tube constructions, for example. Note: Table-Top Fastening Set D30 should be used when installing panel elements, as its spacer compensates for the height difference caused by Fastener D30.
