Cover Profile 32, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 8 | line 8 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 0.41 cm2 |
| Moment of Inertia, x-axis | Ix = 0.01 cm4 |
| Moment of Inertia, y-axis | Iy = 0.47 cm4 |
| Weight | m = 0.11 kg/m |
| Delivery unit | cut-off max. 3000 mm |
| Material | Al, anodized |
| Colour | natural |
| Resistance Moment, x-axis | Wx = 0.03 cm3 |

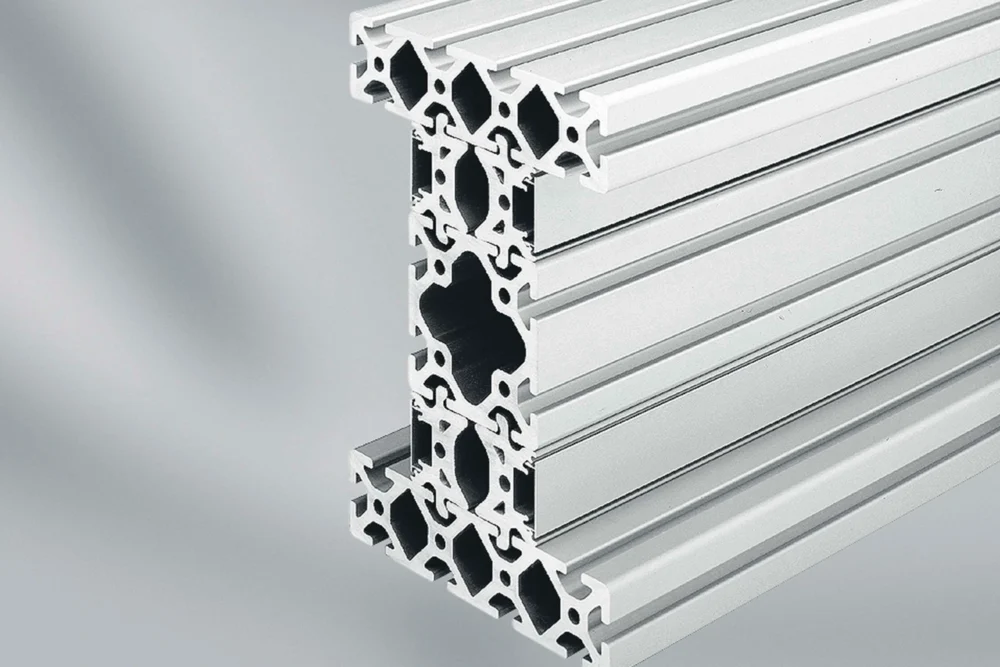

Connection Profile 8 40 is supplied in pairs and machined with 11 mm ⌀ bores (bore spacing 200 mm ) for the fastening screws. The use of Captive Nuts (designed to fix positions and prevent torsion) allows the Connection Profile to be fitted from one side. DIN 912-M10x60, M10x100 or M10x140 Hexagon Socket Head Cap Screws (tightening torque M = 34 Nm ) are inserted at the relevant predetermined positions to join Connection Profiles. The joint and/or screw heads and Captive Nuts can be covered over with a dust-tight Cover Profile 32.
