| Hand Grip Element X D25 | CADPDFRFQ |
Preview
Hand Grip Element X D25
Hand grip, PA-GF, grey Cap for hand grip, PA-GF, grey Cap D25, PA-GF, grey Button-Head Screw ISO 7380-M6x16, St, bright zinc-plated
Scope of Delivery
Hand grip, PA-GF, grey Cap for hand grip, PA-GF, grey Cap D25, PA-GF, grey Button-Head Screw ISO 7380-M6x16, St, bright zinc-plated
Properties
| Line | line X |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 44 g |
| Delivery unit | 1 set |

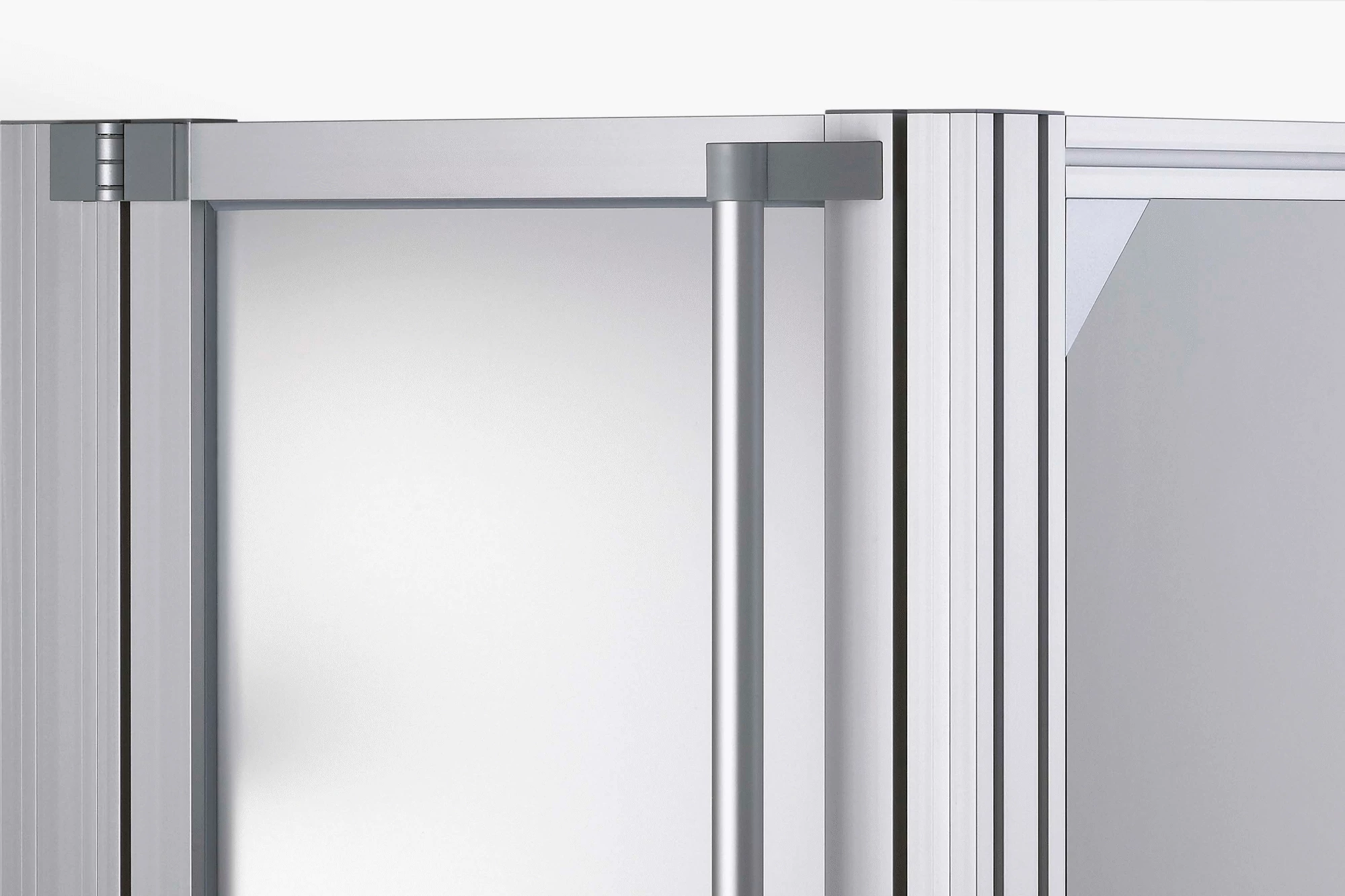

Grip System X D25 consists of Hand Grip Elements X D25 and cylindrical Profile D25. These components can be used to create handles of any length, but the distance between two Hand Grip Elements must not exceed 1000 mm.

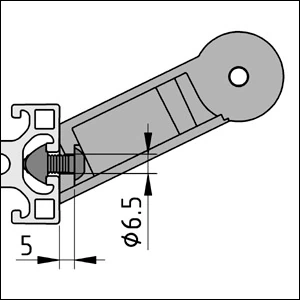

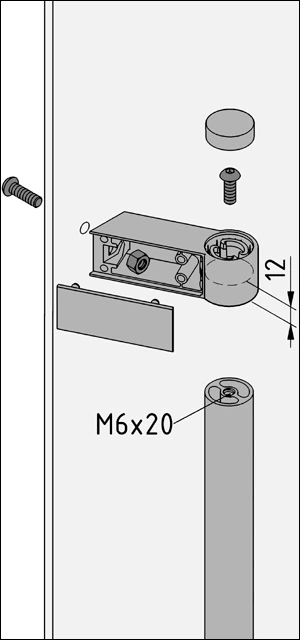

Profile sections D25 are inserted in Hand Grip Element X D25 from one or both sides. Any hole not required is covered using the Cap provided. M6x20 threads are provided in the core bore of the Profile D25 which is then press-fitted in the correct position in the Hand Grip Elements. All M6 screw connections of Hand Grip Element X D25 should be tightened with a torque of M = 4 Nm.

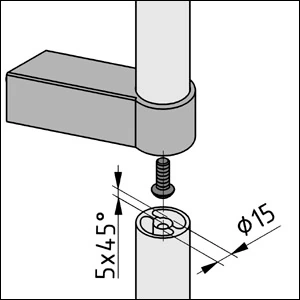

For longer Grip Systems X D25, an additional Hand Grip Element should be used to provide central support. Before being inserted in this Hand Grip Element, the second Profile D25 must be countersunk around the core bore.
