| Handle X 160 PA, grey similar to RAL 7042 | CADPDFRFQ |

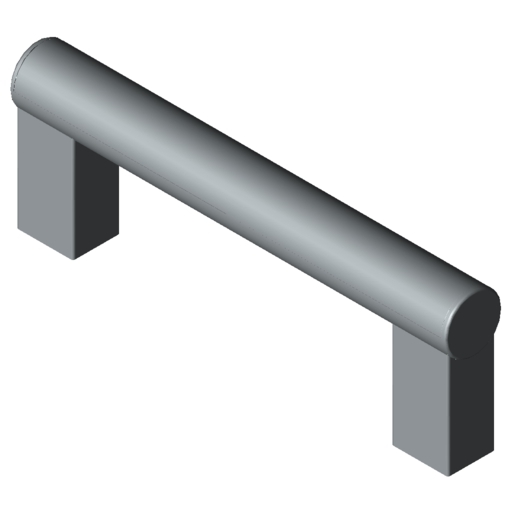

Preview
Handle X 160 PA, grey similar to RAL 7042
Properties
| Line | line X |
|---|---|
| ESD-safe | No |
| Weight | m = 83 g |
| Delivery unit | 1 pce. |
| Material | PA-GF |
| Colour | grey similar to RAL 7042 |

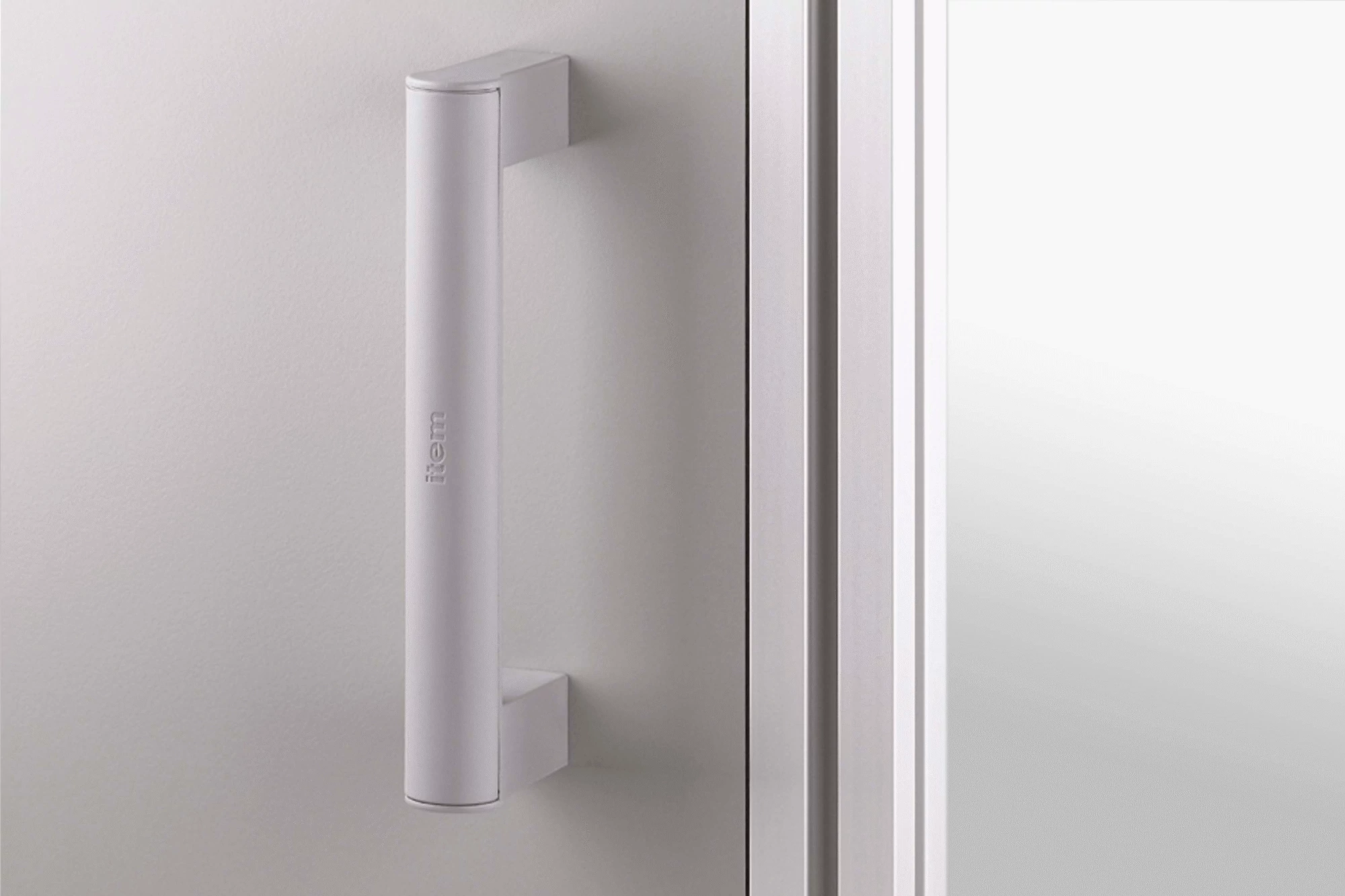

Handle X 160 PA can be fastened from the front or back (hidden) and is suitable for sliding and swing doors. The top part of the grip of Handle X 160 PA is snapped on after the grip has been fitted.
Handle X 160 PA can be attached to profiles using a screw (max. M8) and T-Slot Nut.
An M8 nut can be inserted in the lower part of the grip for fastening from the back of the door.
