Joining Plate Set 8 40 160

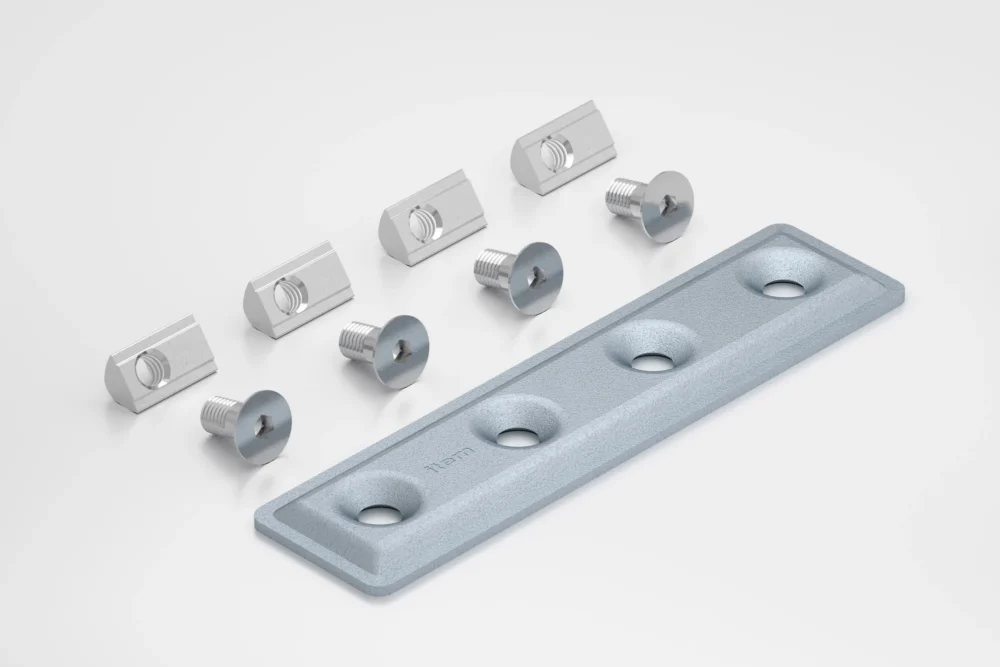

Joining Plate Set 8 40 160 provides additional rigidity for a right-angled profile connection in a frame. This robust, rectangular steel plate is fastened to the Line 8 grooves of profiles from the outside. The Joining Plate Set can be used as an additional means of compensating for displacement forces at connection points on transport trolleys, racks and machine bases.

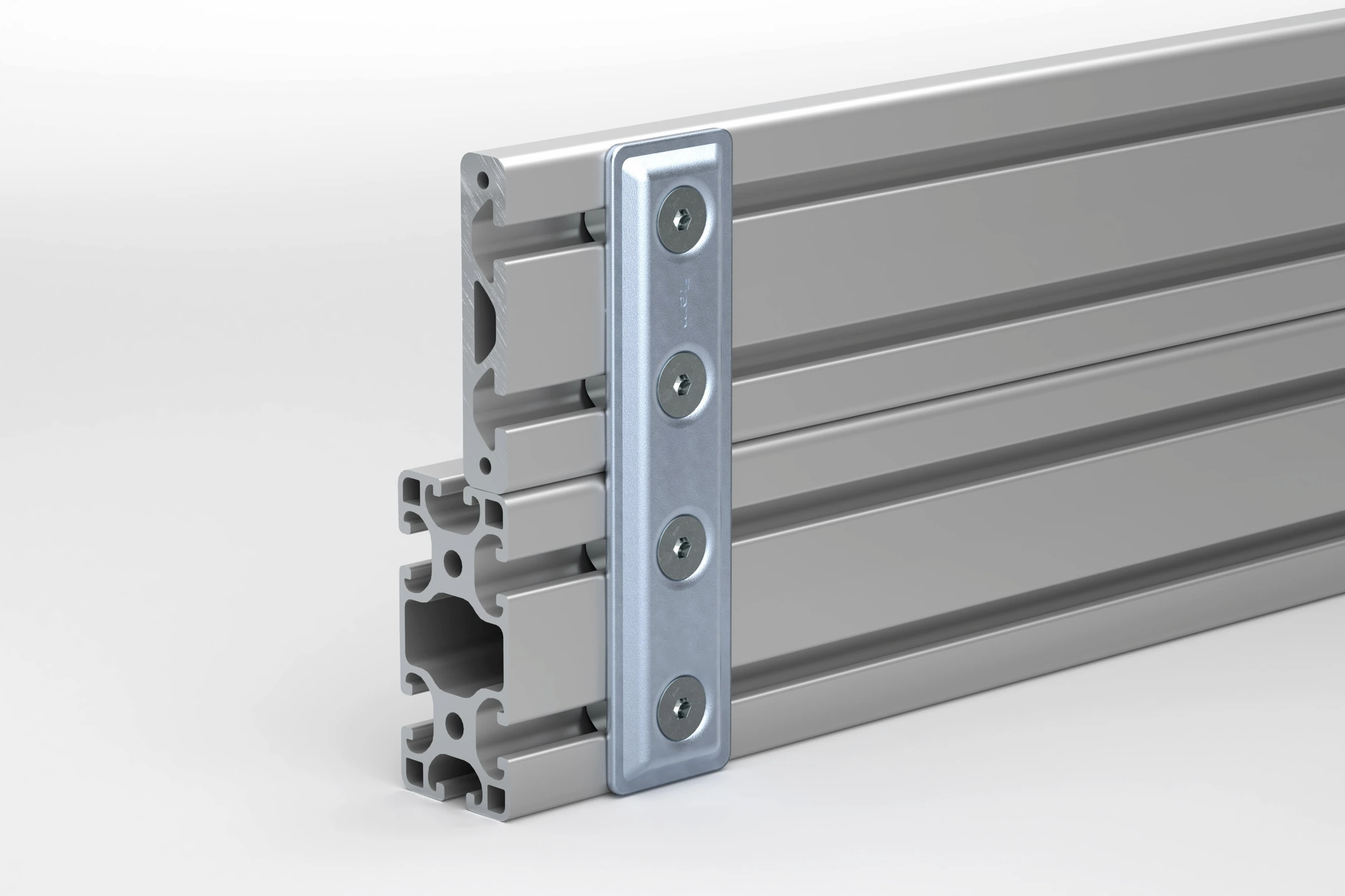

Joining Plate Set 8 40 160 can also be used to connect profiles that run in parallel with each other. This enables you to couple together machine modules or reinforce profiles that are under particular strain.

item Joining Plates reinforce profile frames and enhance the rigidity of frame constructions. Thanks to their economical use of materials, they are ideal for lightweight construction and retrofitting to pre-existing systems. Joining Plates are attached from the outside to reinforce existing connections, do not require any additional machining and are screwed to Line 8 grooves. Countersunk holes result in a flat surface, with no risk of injury from protruding screw heads. Note: item Joining Plate Sets are not intended as a substitute for screw-attached fastening sets.
