| Foot Clamp D40 | CADPDFRFQ |
Preview
Foot Clamp D40
Properties
| ESD-safe | Yes |
|---|---|
| Weight | m = 42.9 g |
| Delivery unit | 1 pce. |
| Material | Al |
| Max. load-carrying capacity | F = 5000 N |

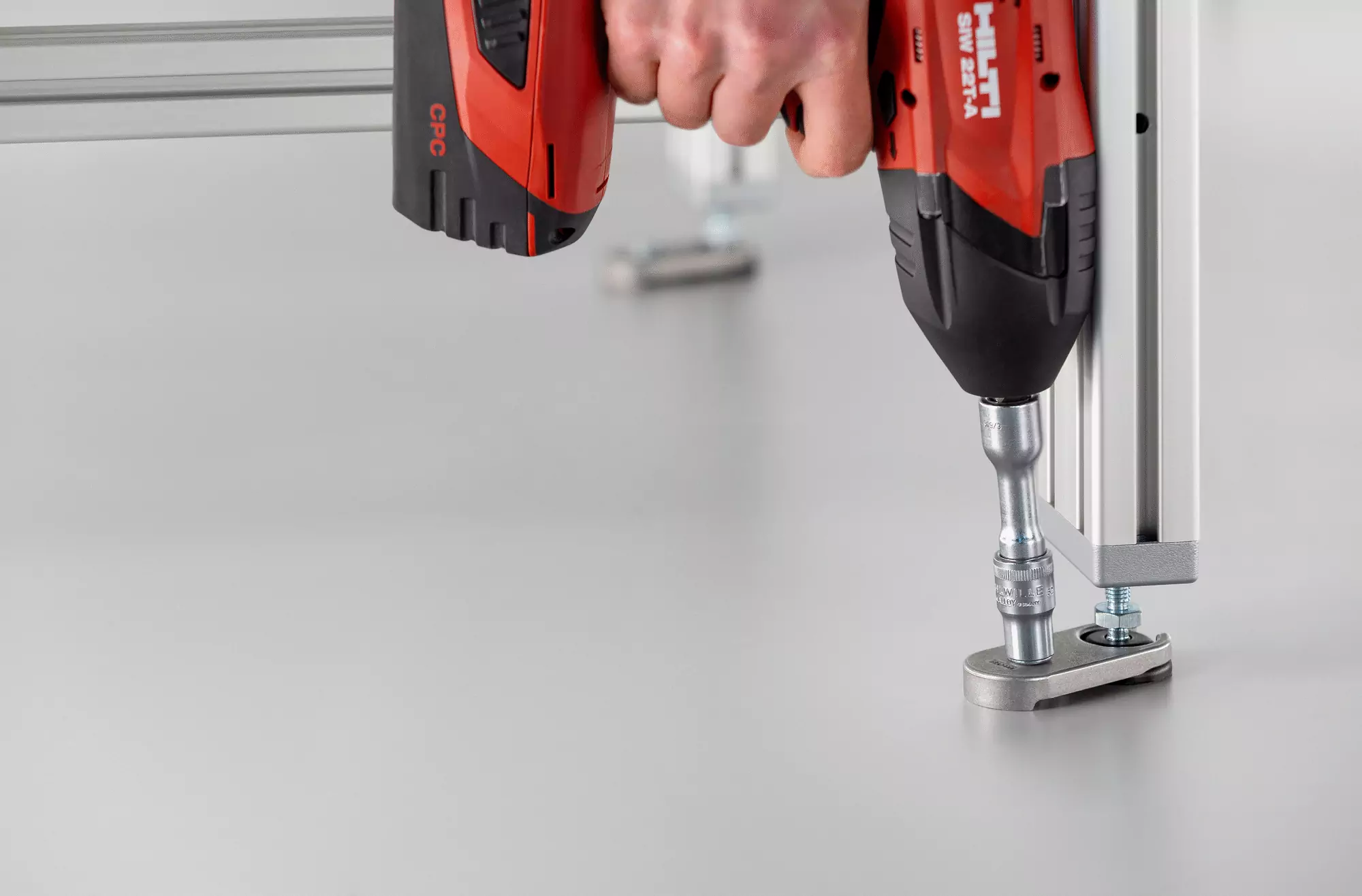

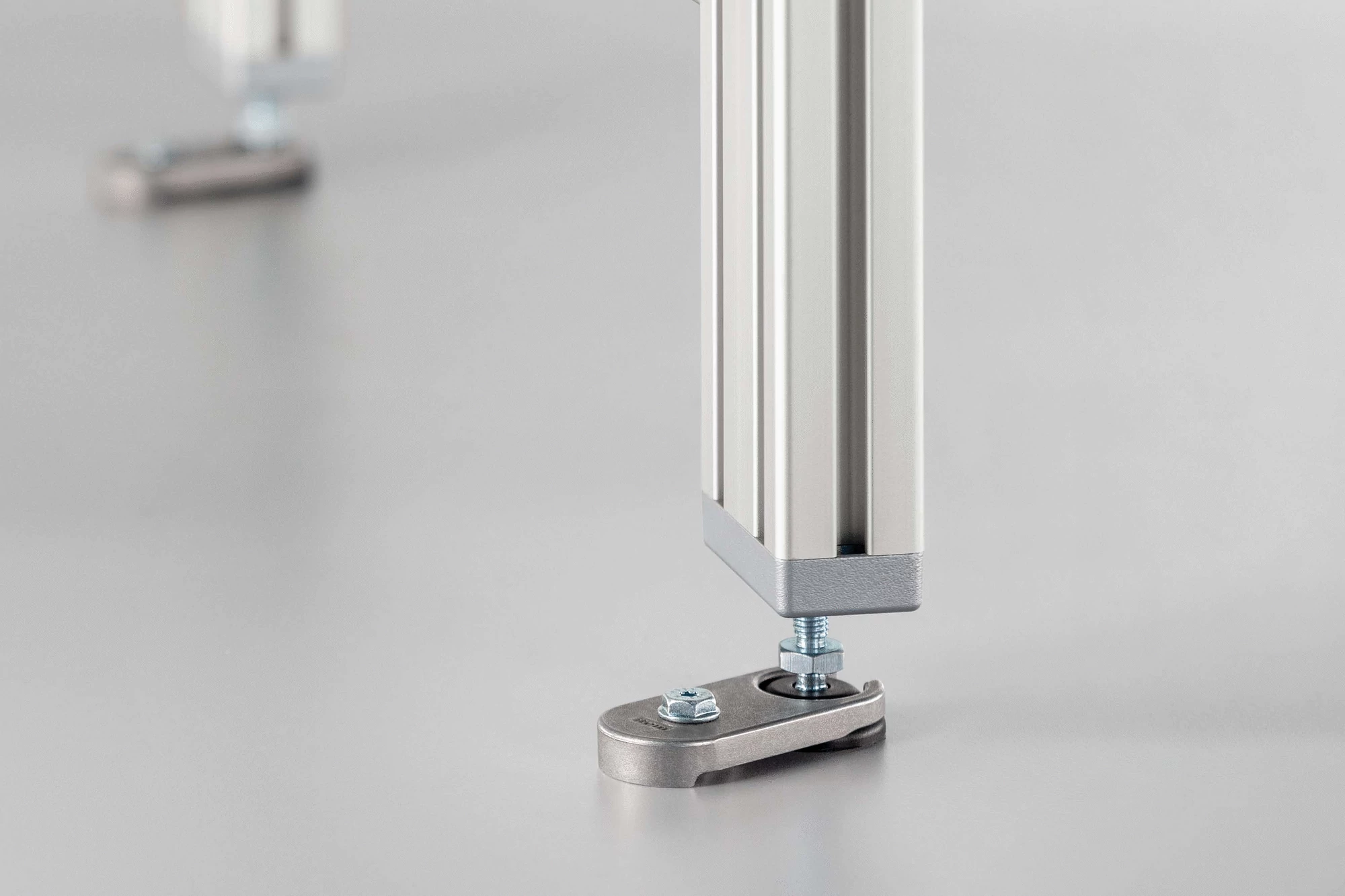

item Foot Clamps D40 anchor racks, factory equipment and machinery securely to the floor. They envelope item Adjustable Feet (D40 diameter) and are fixed to the subfloor using the corresponding item Screw Anchors.
The permissible load for the Foot Clamps at the fastening point is F perm. = 5,000 N.
Foot Clamps can be retrofitted and removed without requiring any modifications to the profile construction. The height adjustment function of the Adjustable Feet is not affected.
