Knuckle Foot X D40, M8x80, grey similar to RAL 7042

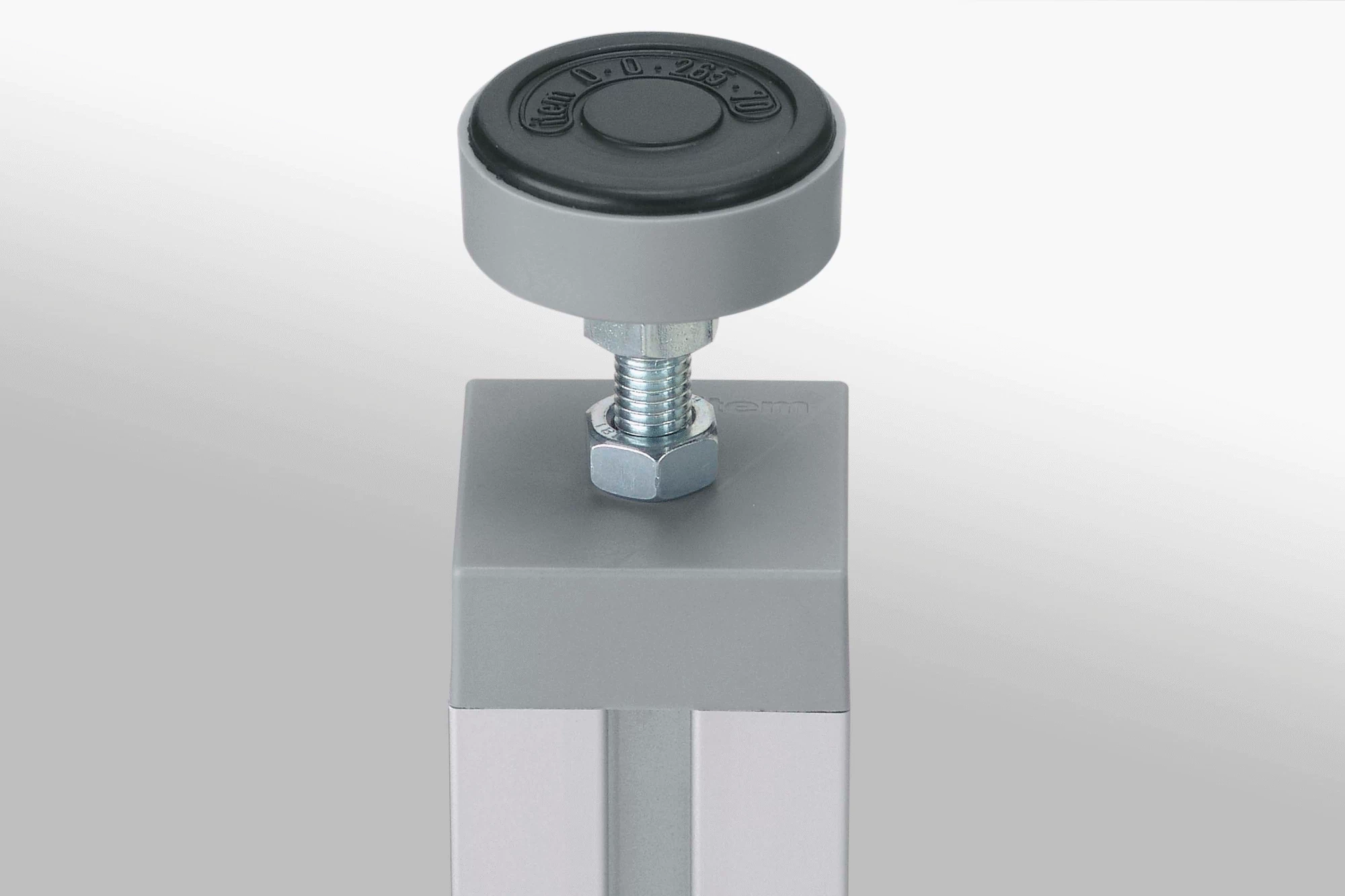

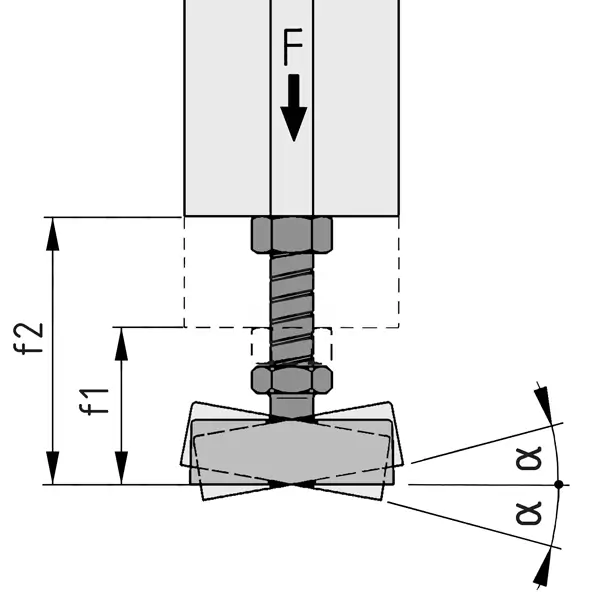

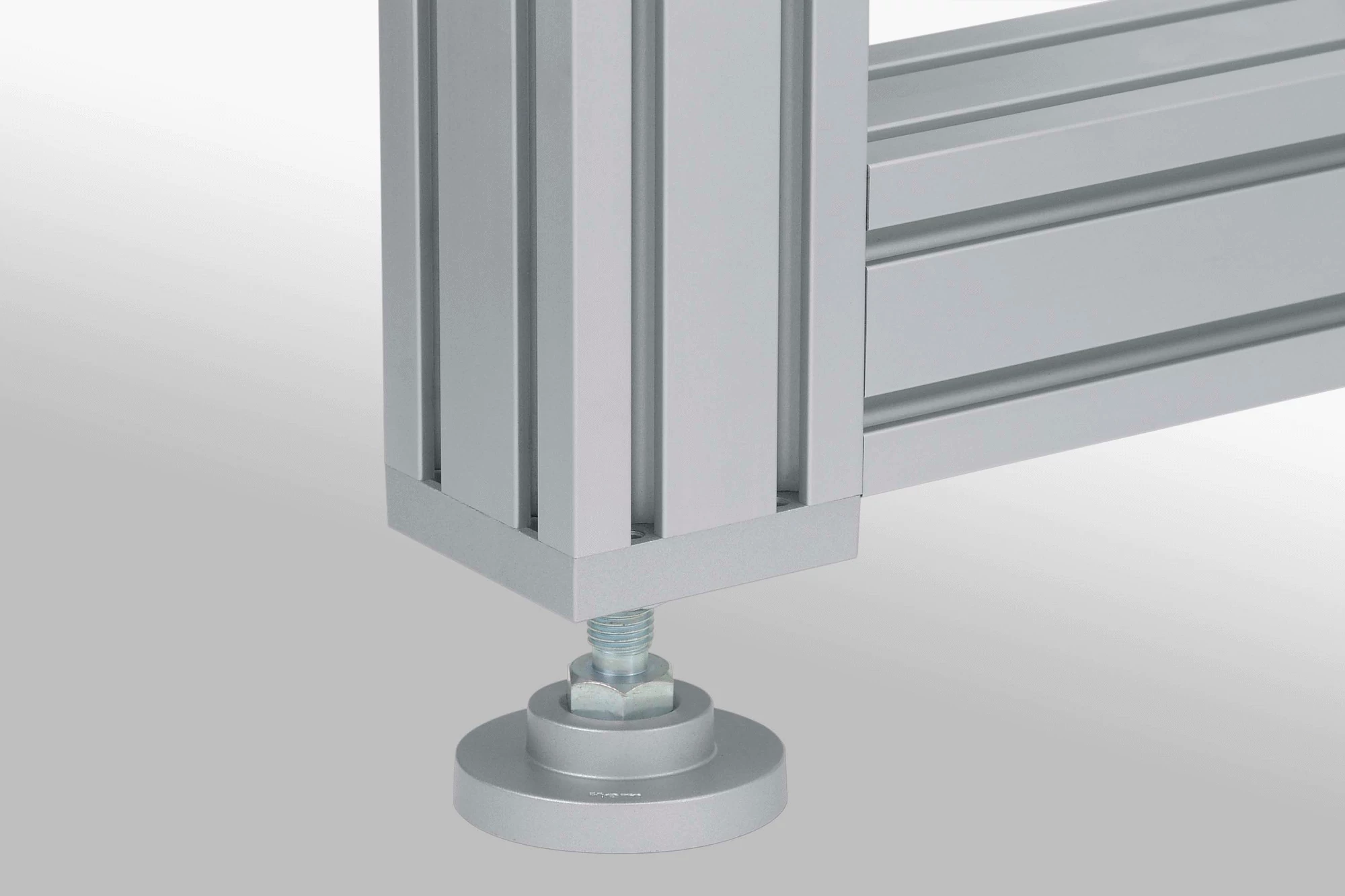

Knuckle Feet X are infinitely adjustable in height and are suitable for all kinds of equipment. Depending on the application, Knuckle Feet can be fitted in the core bores of the profiles or in conjunction with Base Plates/Transport Plates. They can be extended with the appropriate Inserts and Foot Clamps. The minimum foot height is obtained by removing the locking nut. Unevenness is compensated by a ball-and-socket joint. Accessories extend the range of applications of the Knuckle Feet: • Rubber Inserts can be used to immobilize items and protect the floor from damage. They can be retrofitted to the adjustable feet. • The Foot Clamp X D80 is used in conjunction with sets of floor fasteners to attach Knuckle Foot X D80 to the floor or wall.
