Hinge 6/8 40 Zn ESD, matt chrome-plated
Hinge 6/8 40 Zn ESD, matt chrome-plated - Pilt 2

Hinge 6/8 40 Zn ESD, matt chrome-plated

1 hinge half 6 40 Zn, die-cast Al, chrome-plated 1 hinge half 8 40 Zn, die-cast Al, chrome-plated 3 Hinges 8 40 Zn washers, PA6, grey 1 Hinge 8 40 Zn pin, St 1 Countersunk Screw DIN 7991 M6x16, bright zinc-plated 1 Countersunk Screw DIN 7991 M8x18, bright zinc-plated 1 T-Slot Nut 6 St M6 1 T-Slot Nut V 8 St M8

Tootekood: 0.0.728.28 Kategooriad: , Silt:
Määrake CAD-vorming
Hinge 6/8 40 Zn ESD, matt chrome-platedCADPDFRFQ

Eelvaade

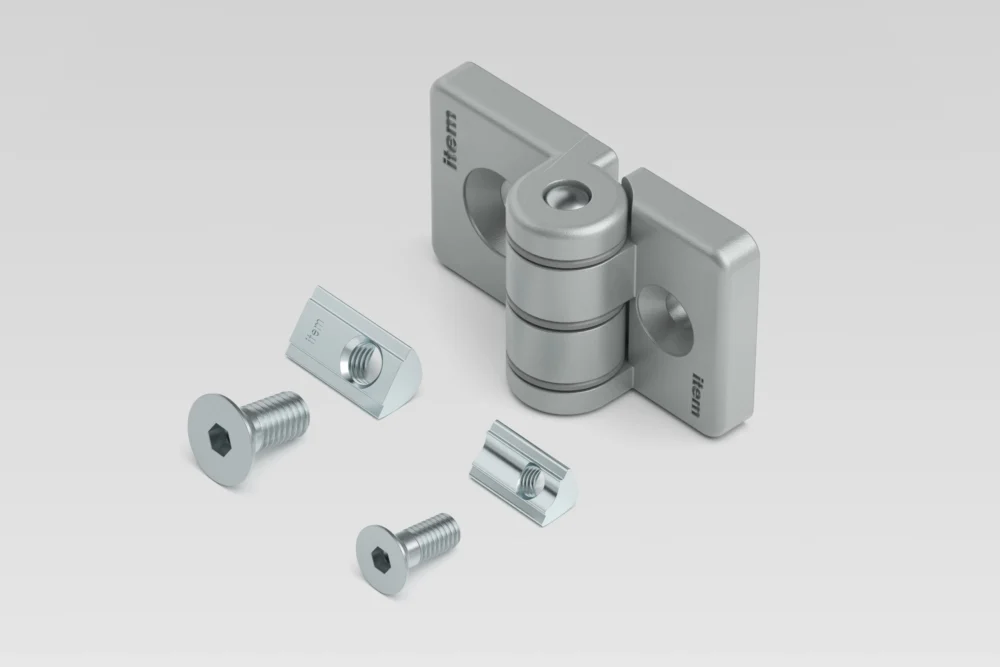

Scope of Delivery

1 hinge half 6 40 Zn, die-cast Al, chrome-plated 1 hinge half 8 40 Zn, die-cast Al, chrome-plated 3 Hinges 8 40 Zn washers, PA6, grey 1 Hinge 8 40 Zn pin, St 1 Countersunk Screw DIN 7991 M6x16, bright zinc-plated 1 Countersunk Screw DIN 7991 M8x18, bright zinc-plated 1 T-Slot Nut 6 St M6, bright zinc-plated 1 T-Slot Nut V 8 St M8, bright zinc-plated

Properties

rida 6rida 6
rida 8rida 8
Kinnisvaramatt chrome-plated
ESD-safeJah
Kaalm = 207 g
Delivery unit1 set
cleanroom suitabilityEi
Presentation2026-03-24T00:00:00

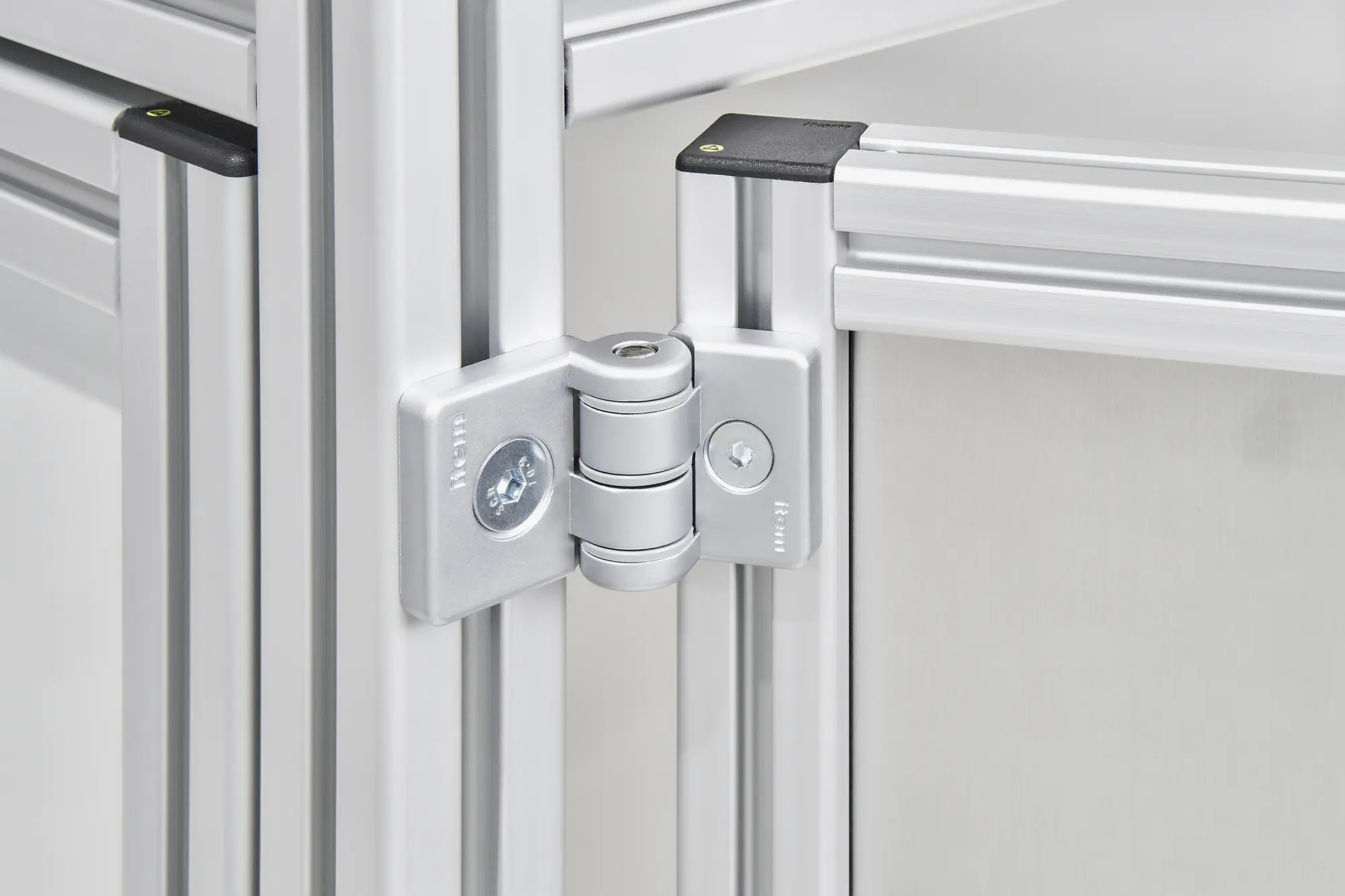

Hinges 6/8 40 Zn ESD from item are joints that allow rotation and connect doors made of Line 6 profiles to surrounding frames made of Line 8 profiles. They can be fitted so that doors and hatches can be opened from the right or left side, they incorporate anti-torsion features and are ESD safe. These robust hinges are quick to fit and cover a wide range of applications. They are equally suitable for use on the doors of safety fixtures as they are for fitting to simple hatches. They can be fastened to a groove or – after removing the anti-torsion features – directly to a panel element.
The anti-torsion features can be removed with a screwdriver. This means the product can be screwed to panel elements and other components that do not have a profile groove.
