| Sprocket Wheel z16 D34.8-5.2 | CADPDFRFQ |
Preview
Sprocket Wheel z16 D34.8-5.2
1 Kettenrad z16 D34,8-5,2, St
Scope of Delivery
1 Sprocket Wheel z16 D34.8-5.2, St
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 40 g |
| Delivery unit | 1 pce. |
| Material | St |

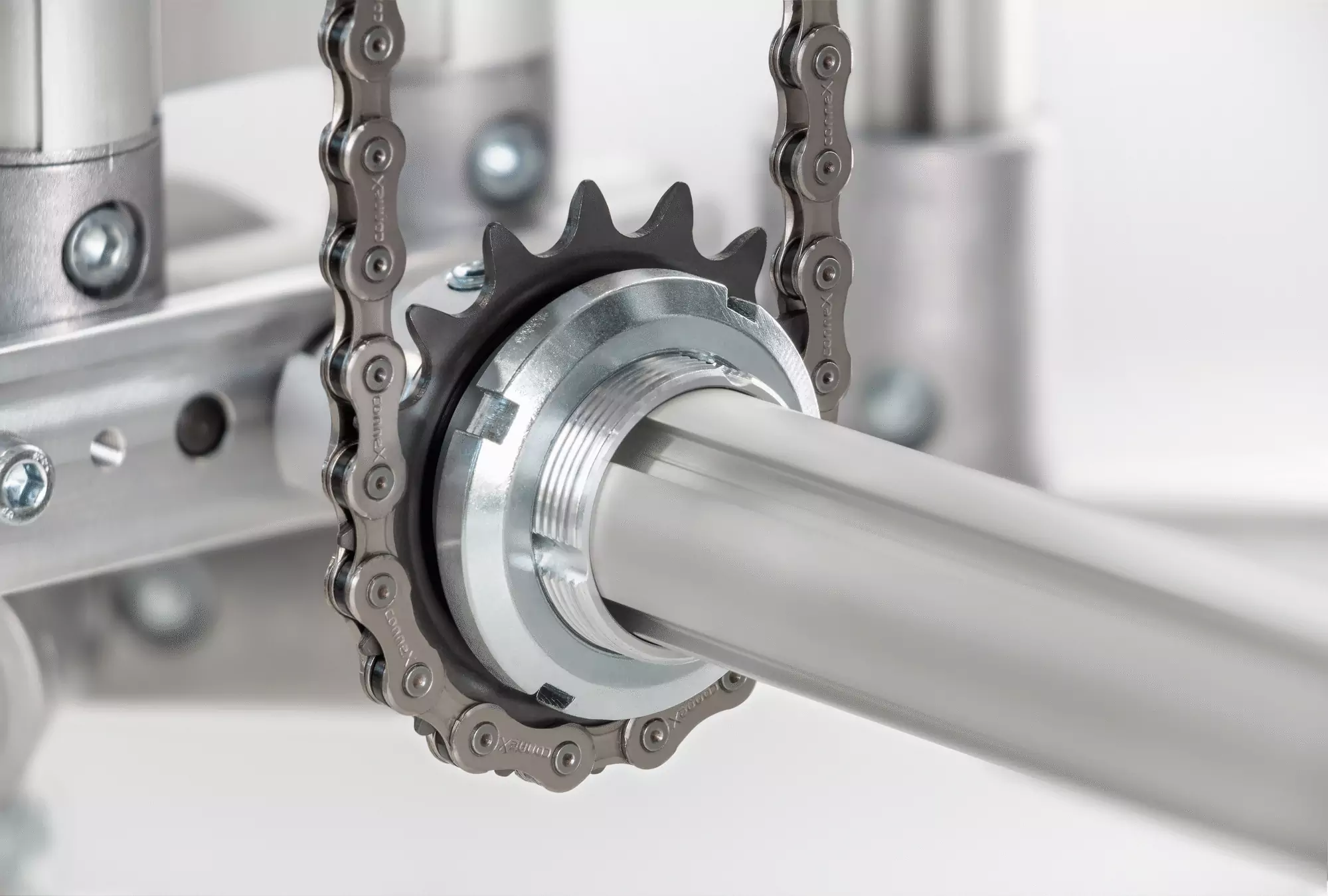

Sprocket Wheel z16 D34.8-5.2 transmits the movement of a Chain 1/2" (0.0.465.17) to a Profile Tube. It is fastened in place using Adapter Sleeve D30-43 M35 (0.0.714.50).
Thanks to the spacer rings included in the scope of supply, one Adapter Sleeve D30-43 M35 can accommodate two Sprocket Wheels. The supporting profile is mounted with Bearing Flange Set 8 D30 120x30 M6 (0.0.715.23) and acts as a synchronisation shaft. Several Adapter Sleeves can be used on the profile for spatially separated power transmission.
Chain 1/2" (0.0.465.17) is an alternative to a cable for Karakuri/LCA applications It is connected to a profile using Chain Fastener 1/2" M6-50 (0.0.708.59). It can be redirected using Pulley D75/D55 (0.0.708.62) and Chain Connector 1/2" 90° (0.0.708.60). Sprocket Wheel z16 D34 (0.0.714.48) is used to transmit forces, and is fitted in place on a Profile Tube D30 heavy duty using Adapter Sleeve D30-43 M35 (0.0.714.50). The Profile Tube itself is fitted to a frame using Bearing Flange Set 8 D30 120x30 (0.0.715.23), which ensures it can rotate freely.
