Grip Cover Profile 5 20×4, black

Hardness 73 Sh A Oil, UV and water resistant

Configurated product data

Nothing generated yet

You must configurate your product below before requesting quote
Tootekood: 0.0.437.03 Kategooria: Silt:
Set CAD-format
0.0.437.03

Preview

Scope of Delivery

Hardness 73 Sh A Oil, UV and water resistant

Properties

line 5line 5
ESD-safeNo
Weightm = 78.2 g/m
Hardness73
Delivery unitcut-off max. 20 m
MaterialTPE
Colourblack

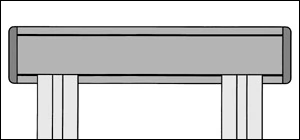

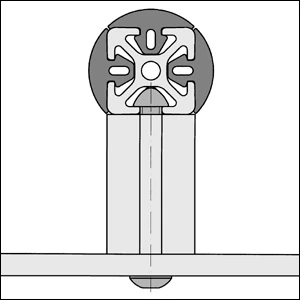

The Grip Cover Profiles can be used to construct Handles of any size from Profiles 5 or 6. The Grip End Caps are screwed into the profile’s core bore using Countersunk Screws DIN 7991 . Grip system 6 is ideal for heavy doors etc .
Discontinuation of the Grip Cover Profile for right-angled profile connections.
Can be connected using Standard or Universal Fastening Set.

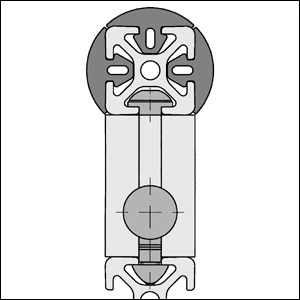

Can be connected from the inside of the door using T-Slot Nut St and Button-Head Screw ISO 7380.
MB Building Kit System
