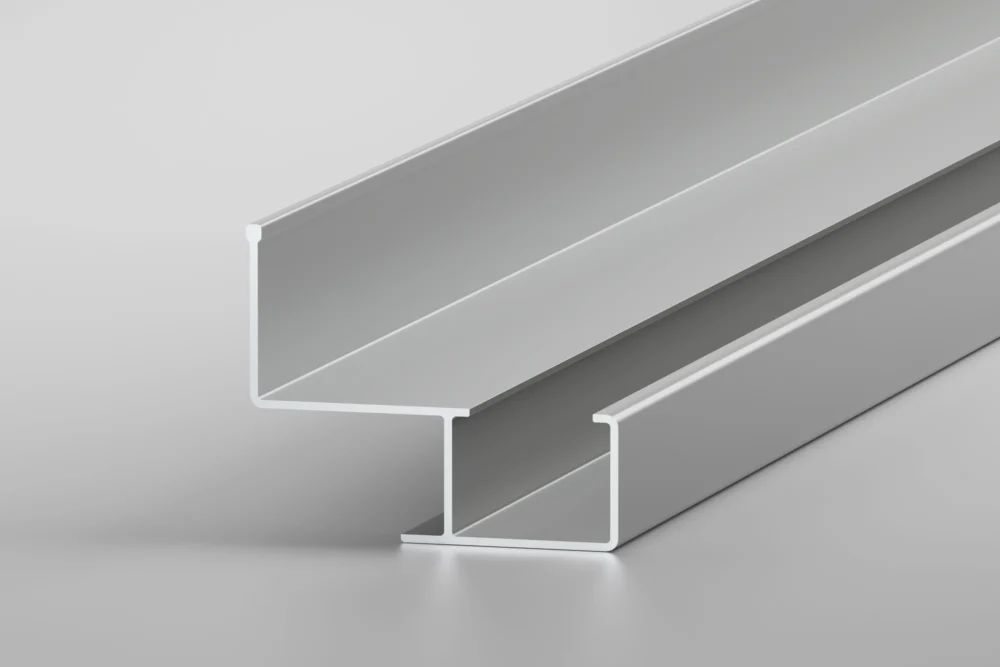

Guide Rail 36×26 e 65, natural
Konfigureeritud tooteandmed
Midagi ei ole veel genereeritud
Enne hinnapakkumise taotlemist peate oma toote allpool konfigureerima.
Tootekood: 0.0.726.89
Kategooriad: Tööpinkide ühendamine, New Products Work Bench System
Silt: Mõõdik
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Jah |
| Kaal | m = 941 g/m |
| Delivery unit | cut-off max. 4500 mm |
| Materjal | Al, anodeeritud |
| Colour | looduslik |
ESD-safe aluminium Guide Rail 36x26 e 65 is a railing that also adds extra rigidity to a Roller Conveyor St D30. The side guidance is spaced 65 mm from the centre of the castors. The anodized surface layer on this robust railing reduces friction and provides long-lasting scratch protection. There is no need to use an additional Slide Strip. The guiding ridge can be positioned on the right or left side of an item Roller Conveyor St D30.
Roller Conveyor St D30 is slotted into Guide Rail 36x26 e. This provides added rigidity for the roller conveyor. Roller Conveyor St Fastening Bracket D30 (0.0.642.47) is used to make the connection to the surrounding frame. Note: Guide Rail 36x26 e 65 enables you to make full use of the installation space in the corner area of a frame. The railing reaches into the area that is left clear because of the Fastener D30. However, the guide rail does not project beyond the frame.
