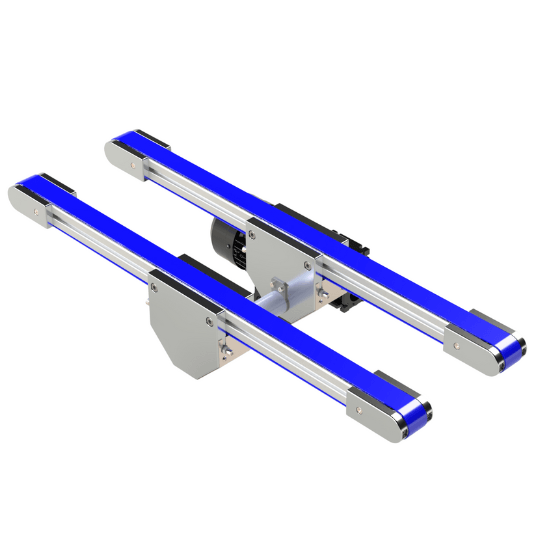

Conveyor 40 Flat Belt – Double Central Drive
Reliable conveyor designed for various applications, available in widths of 40mm, 80mm, 120mm, 160mm, 200mm, 250mm, 300mm, 400mm, 500mm with a central drive system.
For CAD-files other than SolidWorks, please contact Aluflex.
| Cad SolidWorks | |||
| Artikelnummer | Lenght min/max | Width min/max | Download SolidWorks CAD |
| BC40C-D | 400 - 6000 m | 40, 80 mm |  |
| Conveyor Load Data | |||||
| Conveyor | Conveyor System | Motor Position | Belt Speed | Max Total Load (Non-accumulating) | Max Total Load (Accumulating) |
| BC40C-40 | Flat belt conveyor 40-40 | Central Drive | 2-37 m/min | 15 kg | 40 kg |
| BC40C-80 | Flat belt conveyor 40-80 | Central Drive | 2-37 m/min | 25 kg | 60 kg |
| General Technical Data | |
| Conveyor width (A) | 40, 80 |
| Belt width | A - 10 |
| Lenght (L) | 400 - 6000 mm |
| Lenght (L1) | Central Motor Position C/C standard |
| Koormus | 0-100 kg |
| Kiirus | 0-37 m/min |
| Pulley Diameter | 44 mm |
| Belt Type | Wide assortment available upon request |
| Plate under belt | Aluzink std / stainless steel |
| Motor Technical Data | |
| Mootor | Asynchronous 230/400V, 50Hz |
| Cable | Delivered without motor cable |
| Protection rate motor | IP69K |
| Ümbritseva õhu temperatuur | - 20 to +40 ° C |
| Gear speed | 2,3/3,1/3,7/4,6/6,2/7,4/9,2/12/18,5/24/37 m/min |
We offer knife edge solutions for belt conveyors in widths of 40, 80, 120, 160, 200, 250, 300, 400 and 500 mm. For central driven conveyors, knife edge solutions can also be provided at both ends. If you require knife edge solutions for conveyors wider than 500 mm, please contact us at Aluflex.
