| Castor D160 fixed PU 140×110 | CADPDFRFQ |
Preview

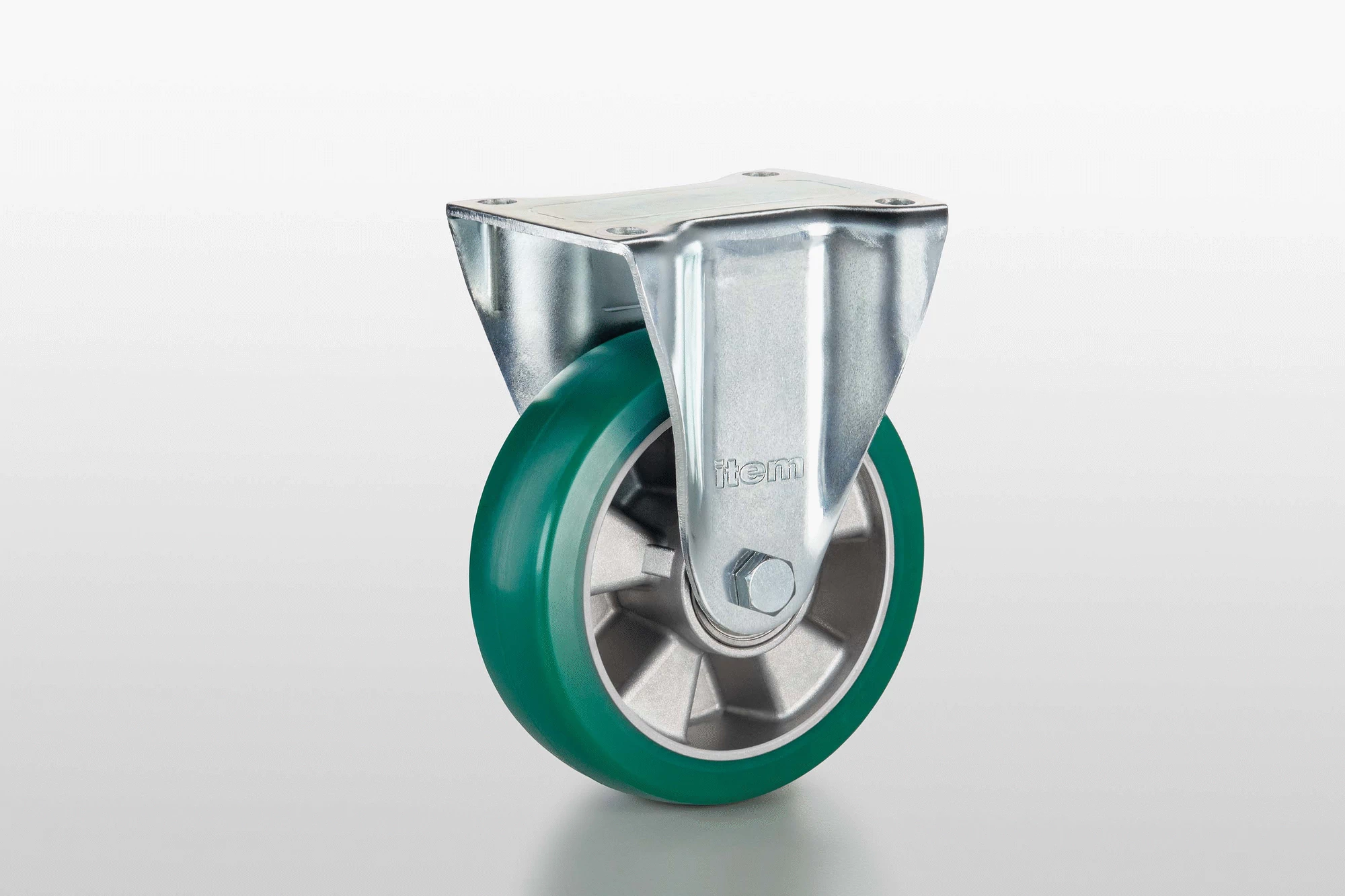

Castor D160 fixed PU 140×110
Casing, St, bright zinc-plated Wheel axle with ball bearing Wheel body, Al Tyre, PU, 75 Sh A, green Load-carrying capacity 550 kg/Castor at max. 4 km/h Load-carrying capacity 280 kg/Castor at max. 6 km/h Load-carrying capacity 200 kg/Castor at max. 10 km/h Load-carrying capacity 450 kg/Castor at max. 16 km/h not including travelling over obstacles
Scope of Delivery
Casing, St, bright zinc-plated Wheel axle with ball bearing Wheel body, Al Tyre, PU, 75 Sh A, green Load-carrying capacity 550 kg/Castor at max. 4 km/h Load-carrying capacity 280 kg/Castor at max. 6 km/h Load-carrying capacity 200 kg/Castor at max. 10 km/h Load-carrying capacity 450 kg/Castor at max. 16 km/h not including travelling over obstacles
Properties
| Line | Line D30 |
|---|---|
| line 10 | line 10 |
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 2.4 kg |
| Delivery unit | 1 pce. |

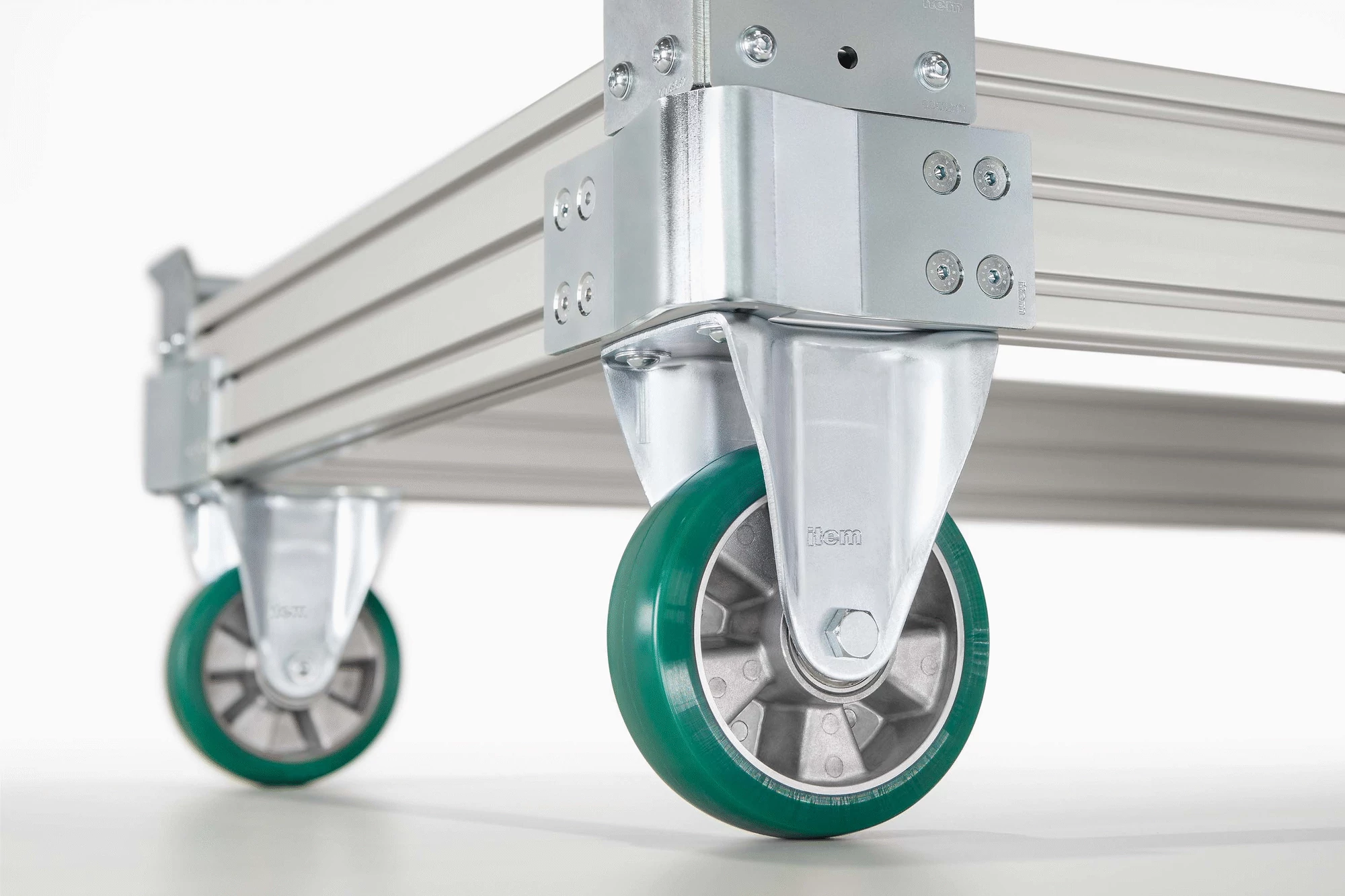

The Castors for high speeds! The D160 PU 140x110 series of Castors from item (Castor diameter: 160 mm) is suitable for transport tasks that need to be fast. Tugger trains benefit from the damping action and abrasion resistance of the polyurethane tyres, with slight unevenness in floor surfaces accommodated internally. The PU Castor range is intended for speeds of up to 16 km/h and includes Swivel Castors, Swivel Castors with double brake and Fixed Castors. The maximum load-carrying capacity of the Castors is around 550 kg. The operational load-carrying capacity is speed-dependent and has been tested to DIN EN 12532 and DIN EN 12533. Thanks to the wide connecting plate with four holes, the Castors can be fastened directly to the grooves of the support frame. Fastening Set 8 for Castor swivel/fixed 140x110 (0.0.670.18) is used to install the Castors. For reliable straight running, Castors D160 PU swivel 140x110 can also be temporarily converted into Fixed Castors using an additional Swivel Lock (0.0.670.48).
