Kaablijuhtimisprofiil 8 40×16, hall sarnane RAL 7042-ga
Konfigureeritud tooteandmed
Midagi ei ole veel genereeritud
Enne hinnapakkumise taotlemist peate oma toote allpool konfigureerima.Properties
| Line | Tööpinkide süsteem |
|---|---|
| ESD-safe | Ei |
| Ristlõike pindala | A = 3.3 cm2 |
| Kaal | m = 0.46 kg/m |
| Delivery unit | cut-off max. 2000 mm |
| Materjal | PVC |
| Colour | hall sarnane RAL 7042 värviga |

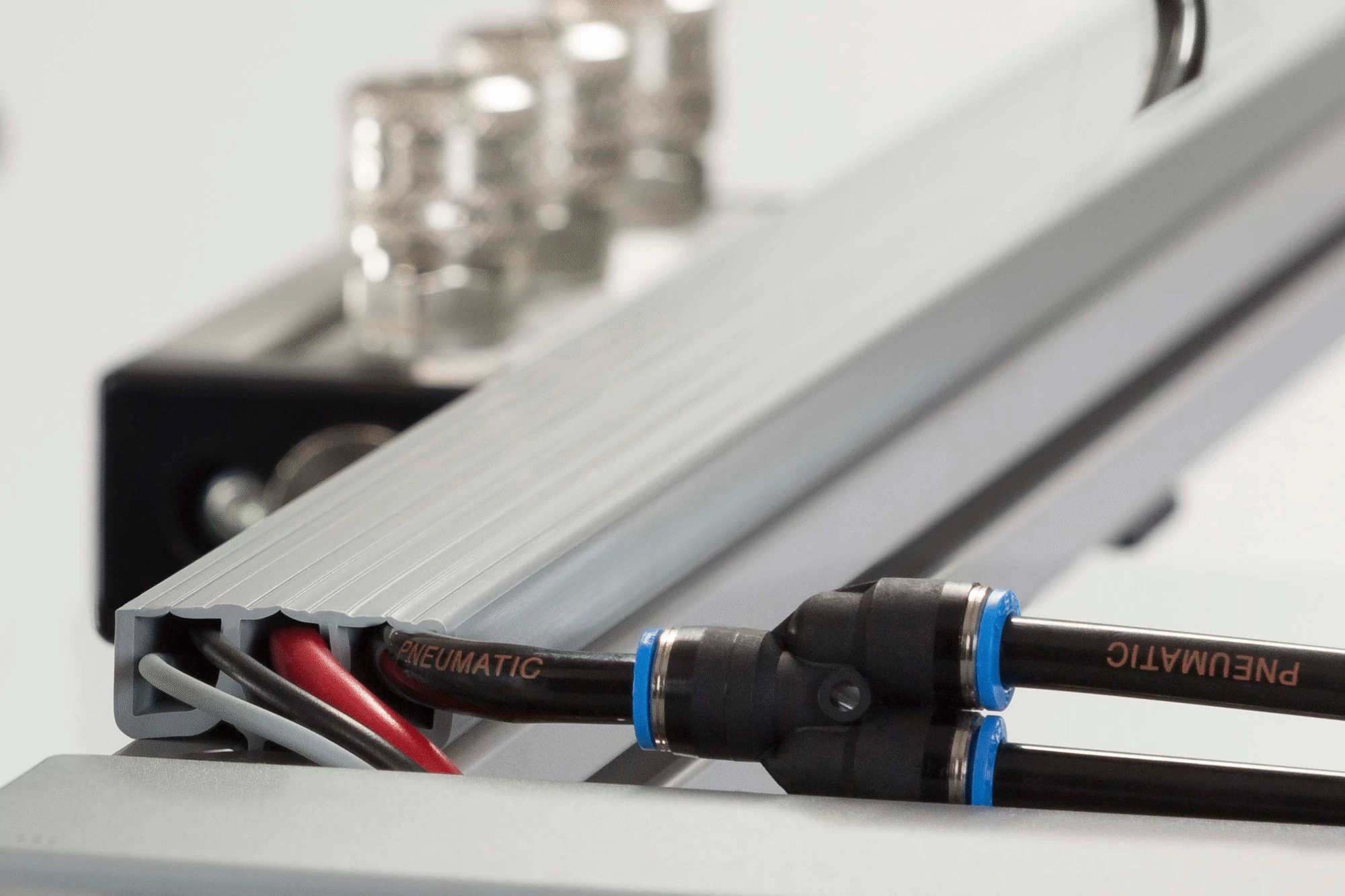

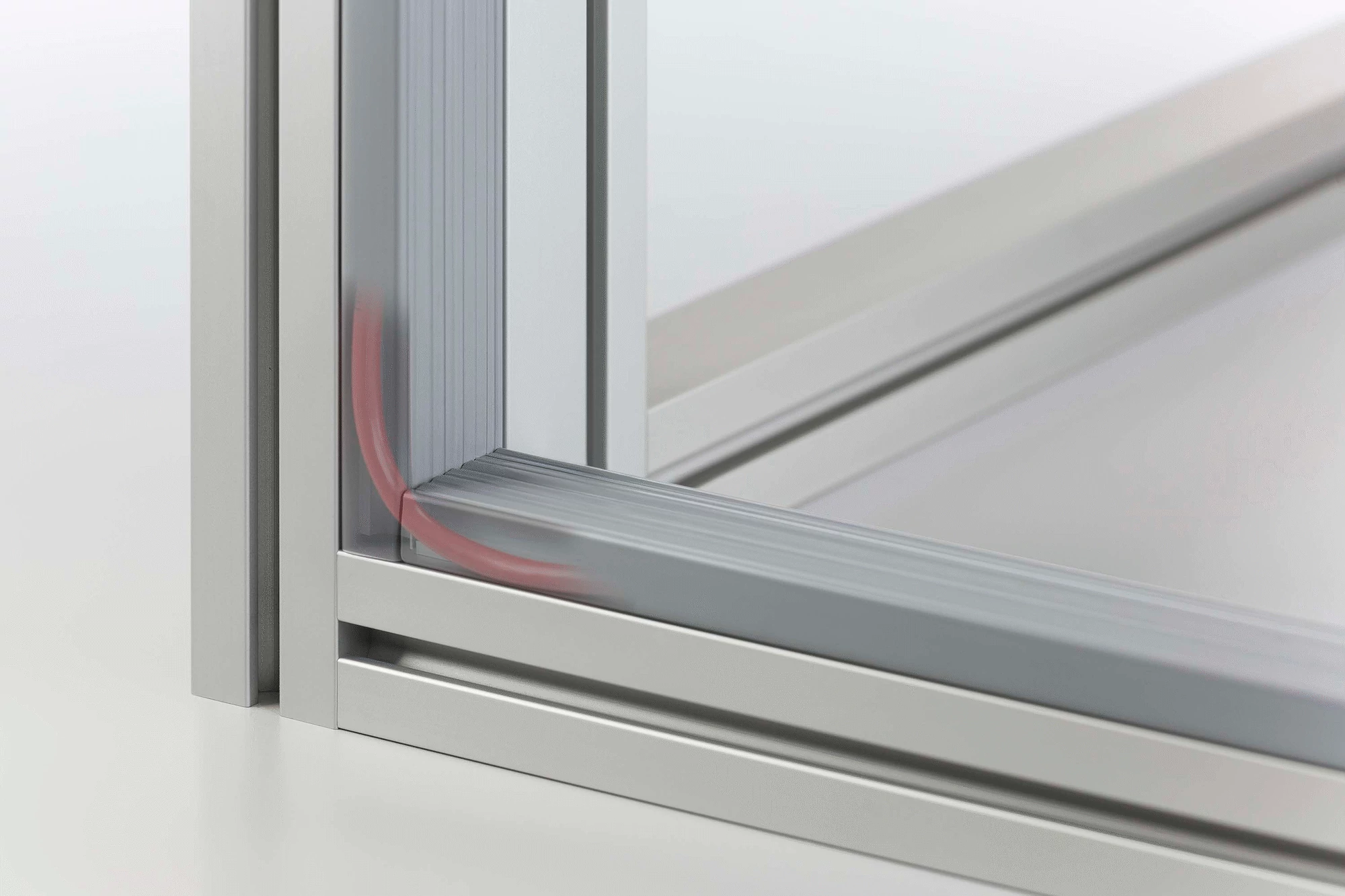

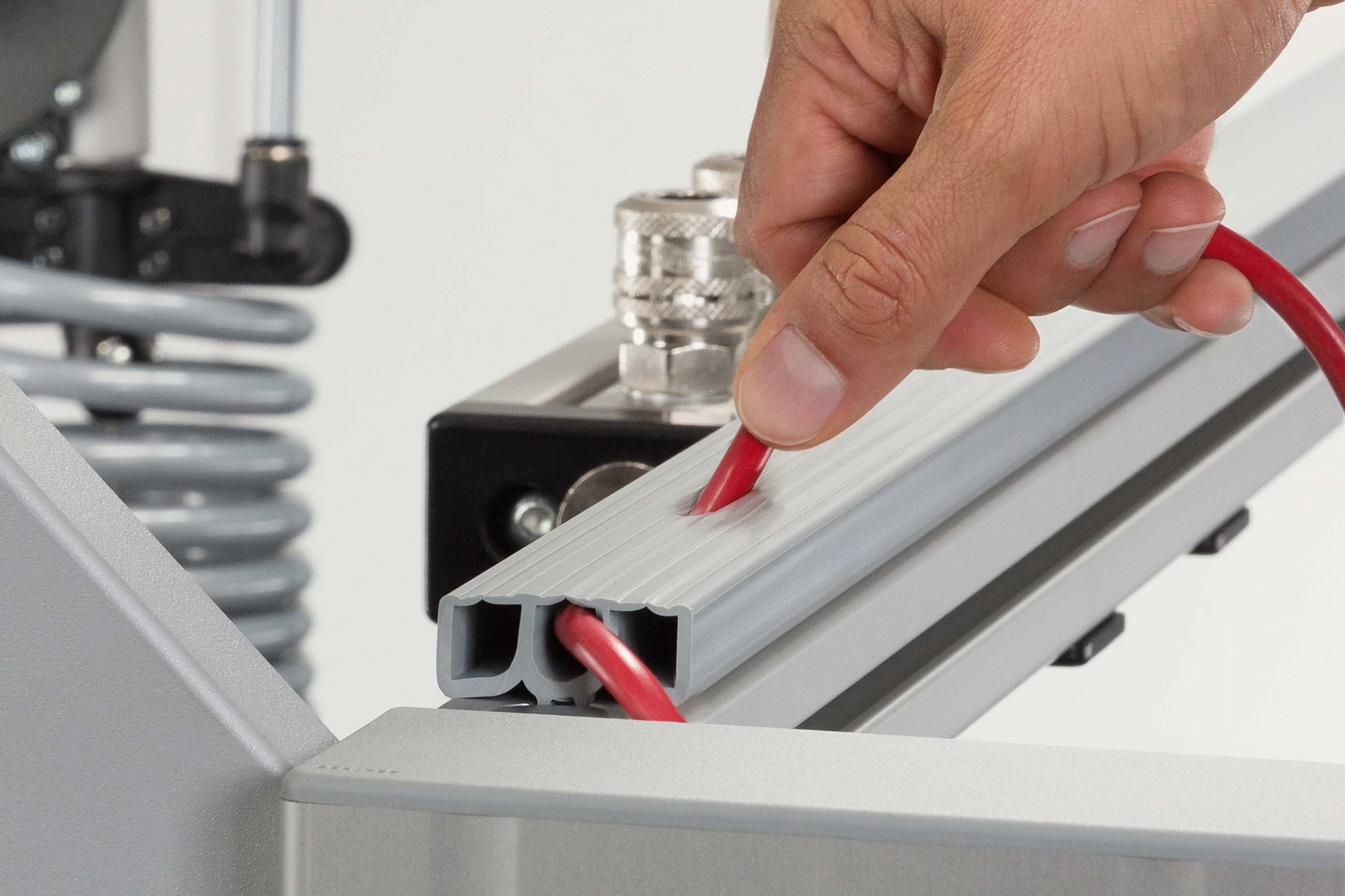

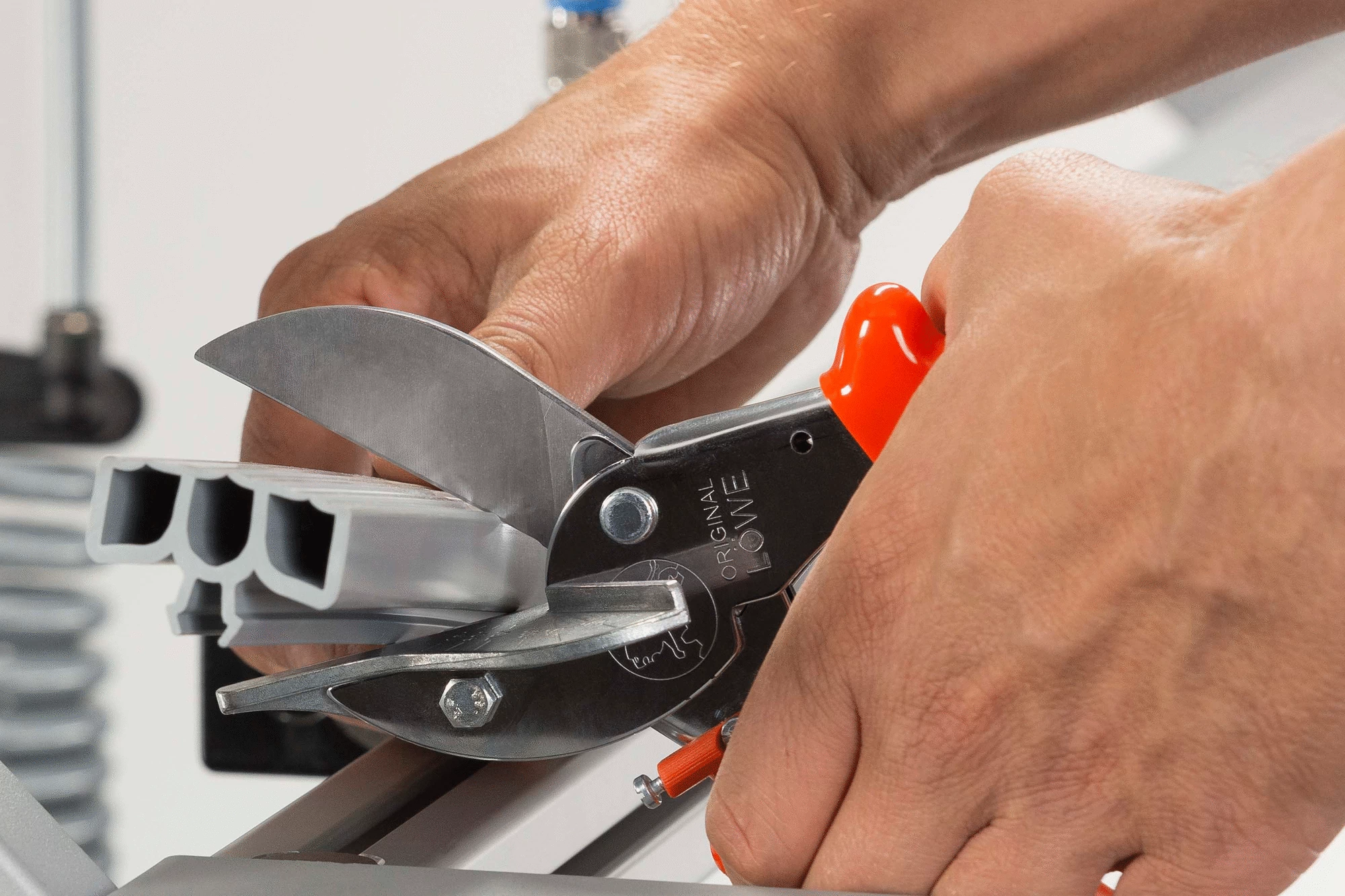

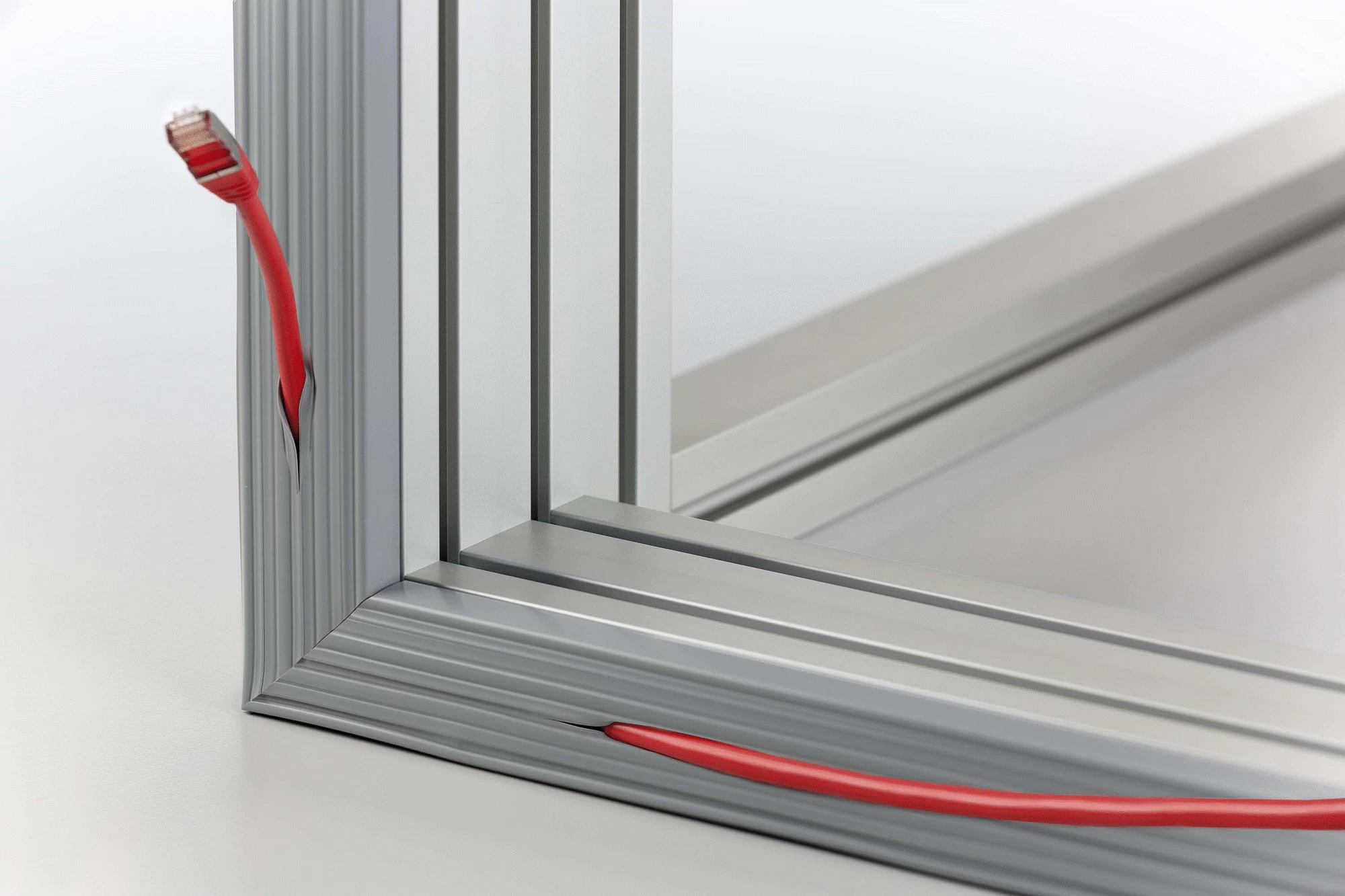

The fastest cable conduit solution from item – simply cut to length and press into a Line 8 groove. The profile incorporates three separate conduits, which makes it incredibly easy to lay and replace individual cables as necessary. Cables can even be laid around corners by pushing Cable Guide Profiles up against each other. item Multi-Purpose Pliers (0.0.265.63) are all that is needed to cut the profile to size.
