Automatic Flat Bracket Set 8 200×120 Al
1 automatic flat bracket 8 200×120, die-cast Al, white aluminium similar to RAL 9006 6 automatic T-slot screws M8x11, St, bright zinc-plated 6 countersunk nuts M8x6, St, bright zinc-plated 6 Caps 8 D20, PA-GF, grey similar to RAL 7042
Tootekood: 0.0.727.13
Kategooriad: New Products MB Building Kit System, Automatic flat and angle bracket sets
Silt: Staatiline
Scope of Delivery
1 automatic flat bracket 8 200x120, die-cast Al, white aluminium similar to RAL 9006 6 automatic T-slot screws M8x11, St, bright zinc-plated 6 countersunk nuts M8x6, St, bright zinc-plated 6 Caps 8 D20, PA-GF, grey similar to RAL 7042
Properties
| Pöördemoment | M = 20 Nm |
|---|---|
| rida 8 | rida 8 |
| ESD-safe | Ei |
| Kaal | m = 408 g |
| Delivery unit | 1 set |

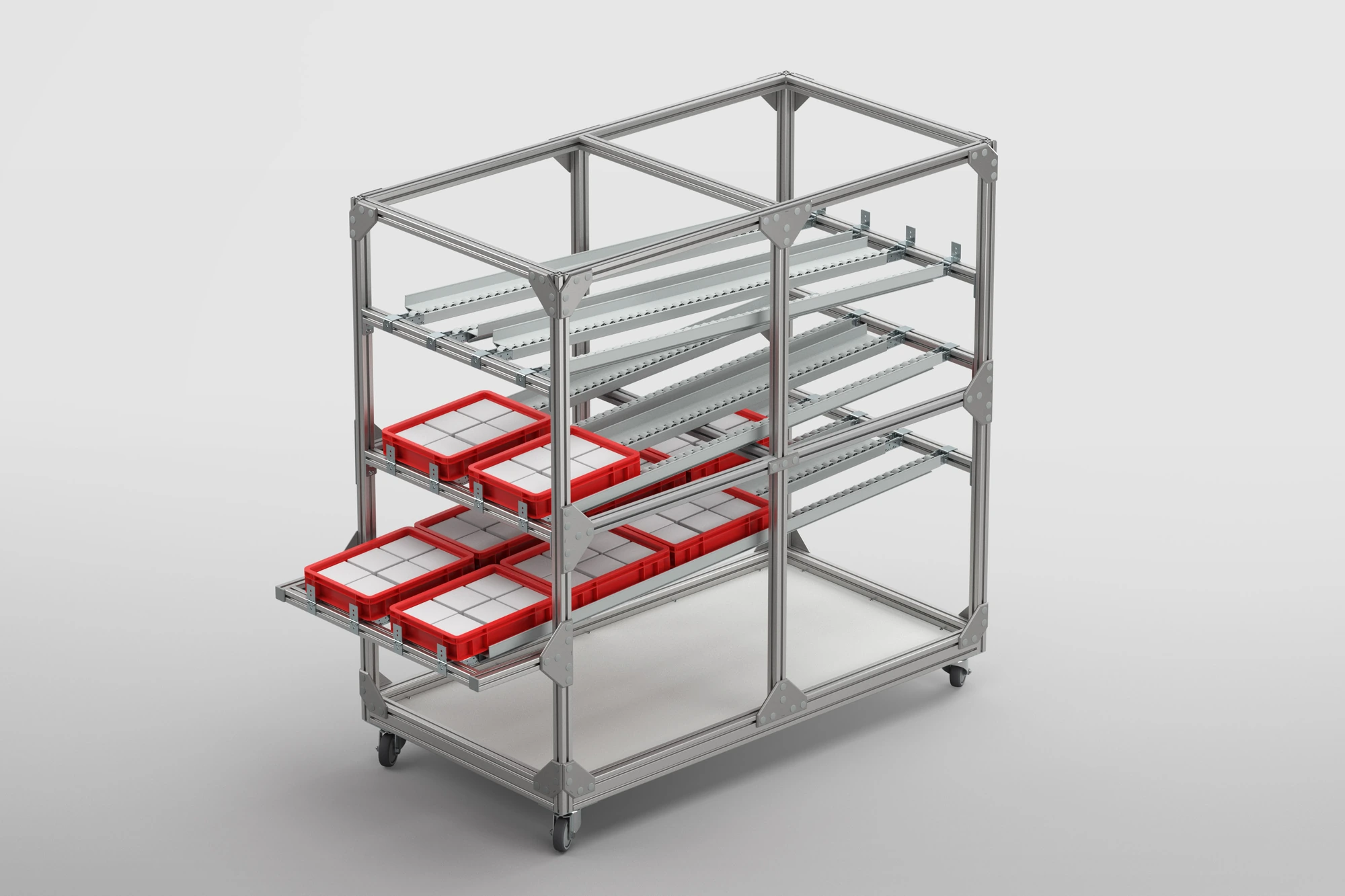

Automatic Flat Bracket Set 8 200x120 Al provides additional rigidity for a T-shaped profile connection in a frame. Thanks to the prefitted automatic T-slot screws, the bracket can be tightened immediately, without any need to position T-Slot Nuts. The aluminium plate is fitted to the Line 8 grooves of the profiles from the outside. Its large support width results in effective torque load compensation. Note: Automatic Flat Bracket Sets are not intended as a substitute for screw-attached fastening sets.

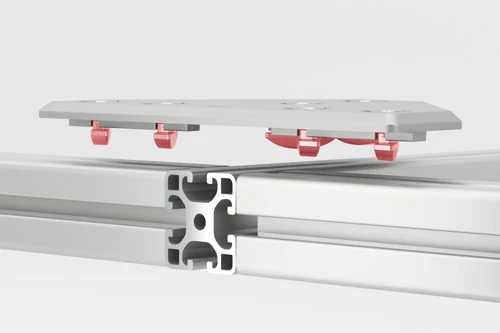

When fitting the Automatic Flat Bracket Set, the automatic T-slot screws are inserted into the grooves. When the nuts are tightened, the specially shaped hammerheads position themselves in the groove.
