Automatic-Fastening Set 8 NO D40

Automatic Fastener 8 N, St, black 2 caps, PA grey Hexagon Socket Head Cap Screw M6x32, St, bright zinc-plated T-Slot Nut V 8 St M6, bright zinc-plated

Tootekood: 0.0.493.91 Kategooria: Silt:
Set CAD-format
Automatic-Fastening Set 8 NO D40CADPDFRFQ

Preview

Scope of Delivery

Automatic Fastener 8 N, St, black 2 caps, PA grey Hexagon Socket Head Cap Screw M6x32, St, bright zinc-plated T-Slot Nut V 8 St M6, bright zinc-plated

Properties

line 8line 8
ESD-safeYes
Weightm = 28.5 g
Delivery unit1 set
TorqueM = 14 Nm

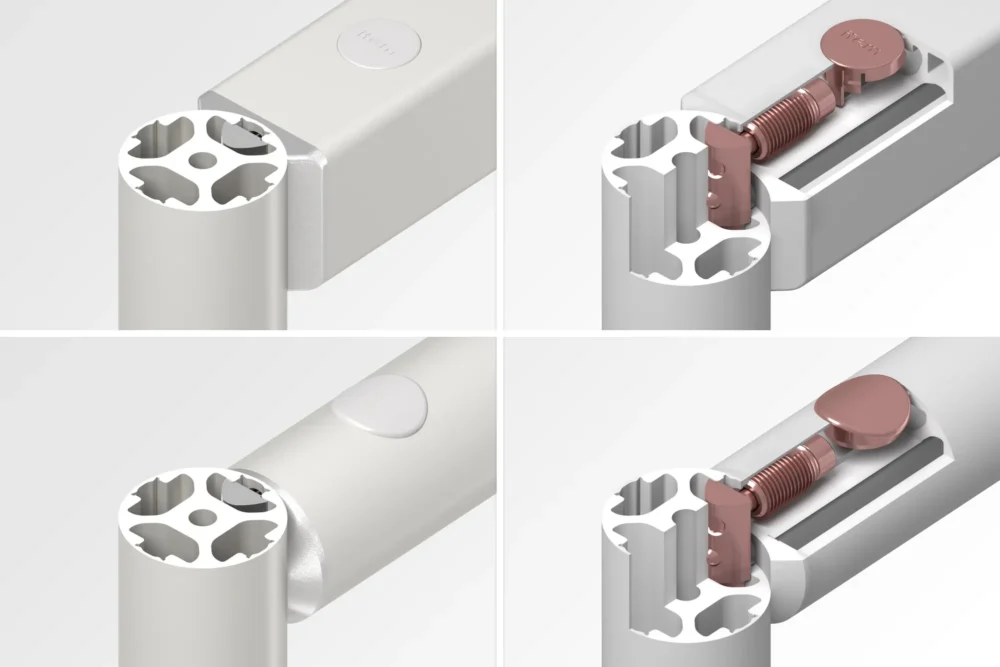

Automatic-Fastening Set 8 NO D40 from item joins a Profile 8 D40 to a Profile 8 D40 or a Line 8 profile at a right angle. A suitable Adapter is needed to compensate for contours. The Automatic Fastener is screwed into the groove together with its Hexagon Socket Head Cap Screw. The closed wall of the profile only needs to be opened up a minimal amount so that the screw can be tightened.

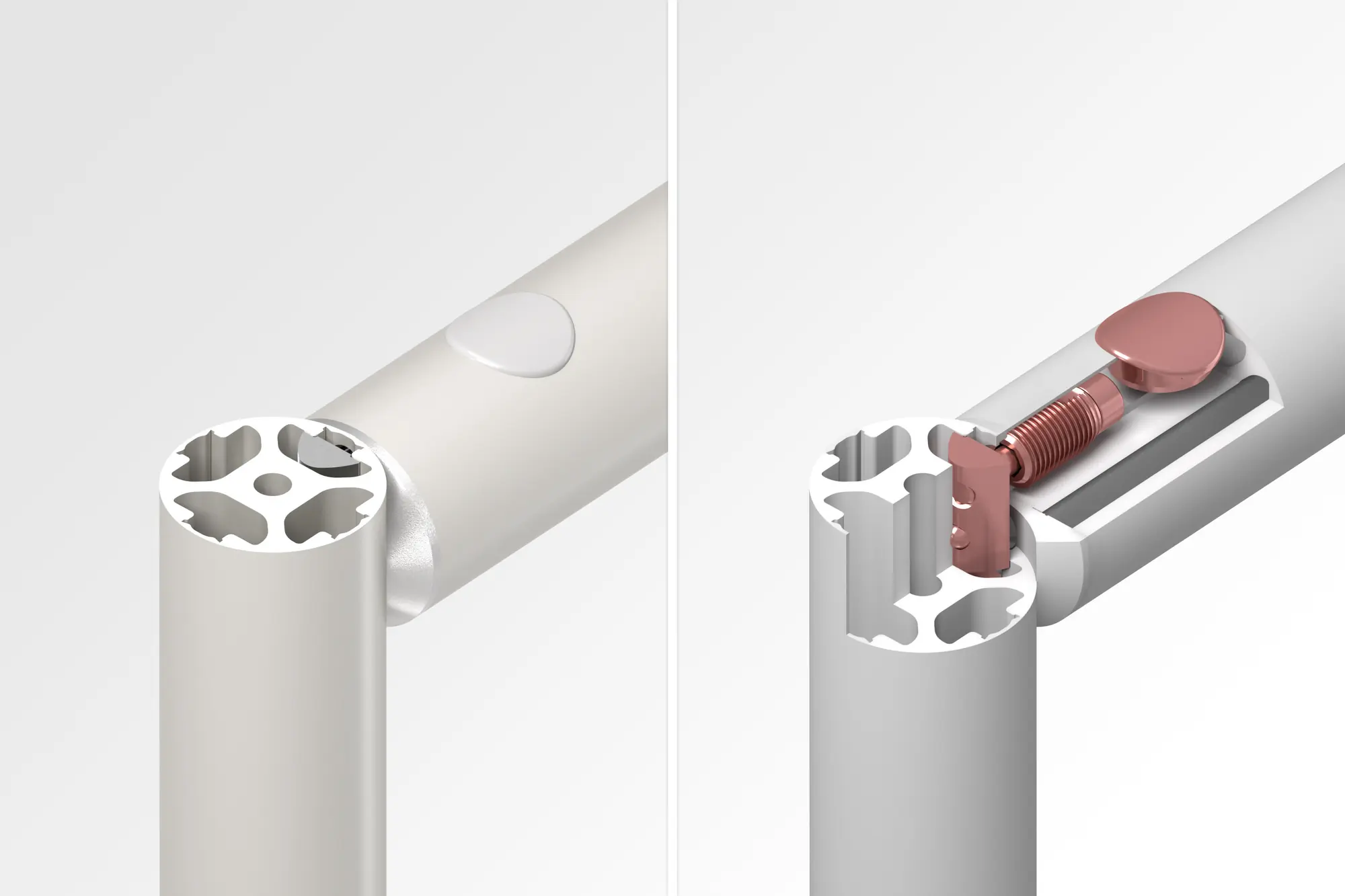

Use Adapter 8 D40/D40 (0.0.489.88) to join two Profiles 8 D40.

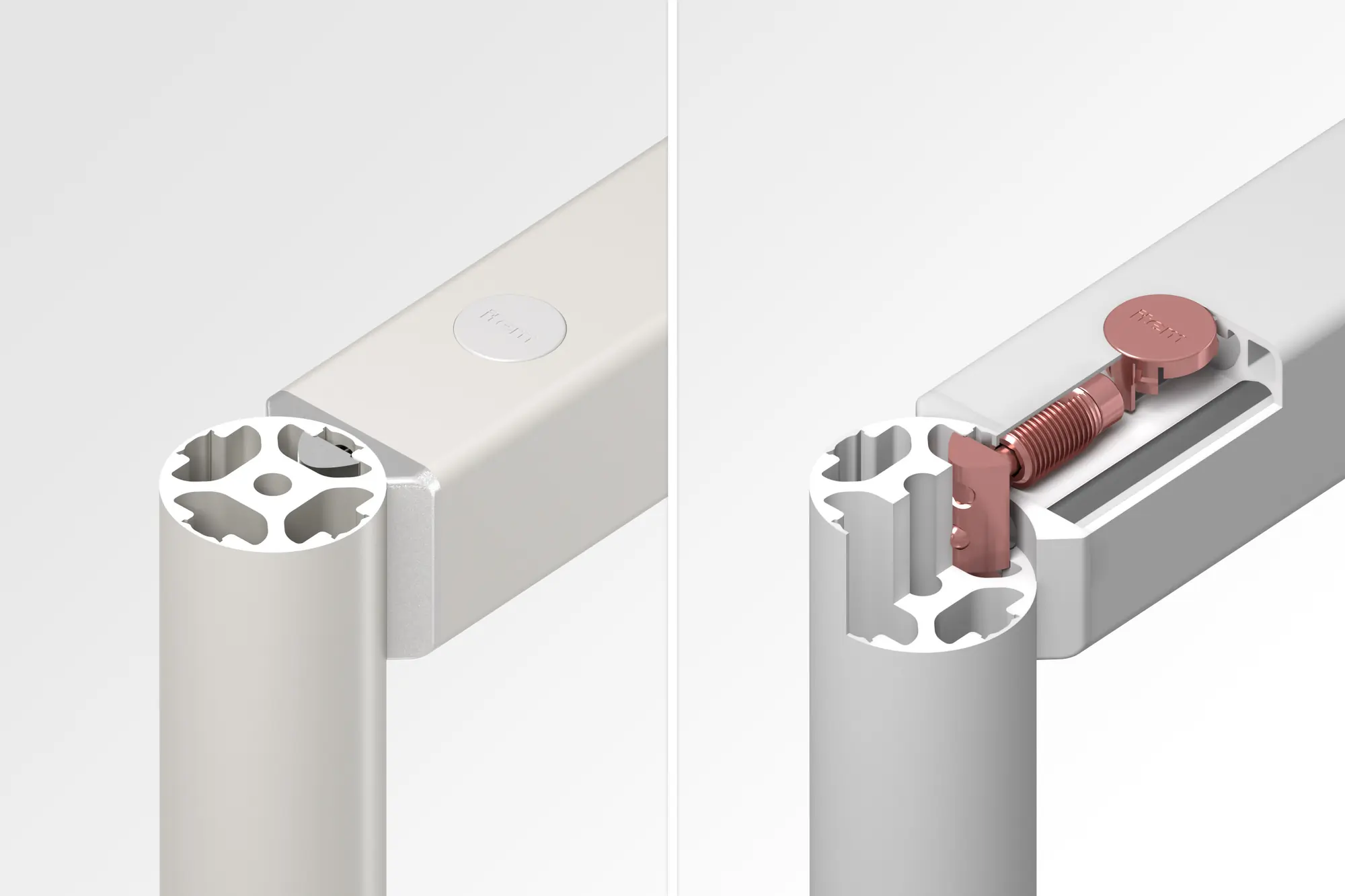

Adapter 8 40x40/D40 (0.0.489.86) is used to connect a Profile 8 40x40.

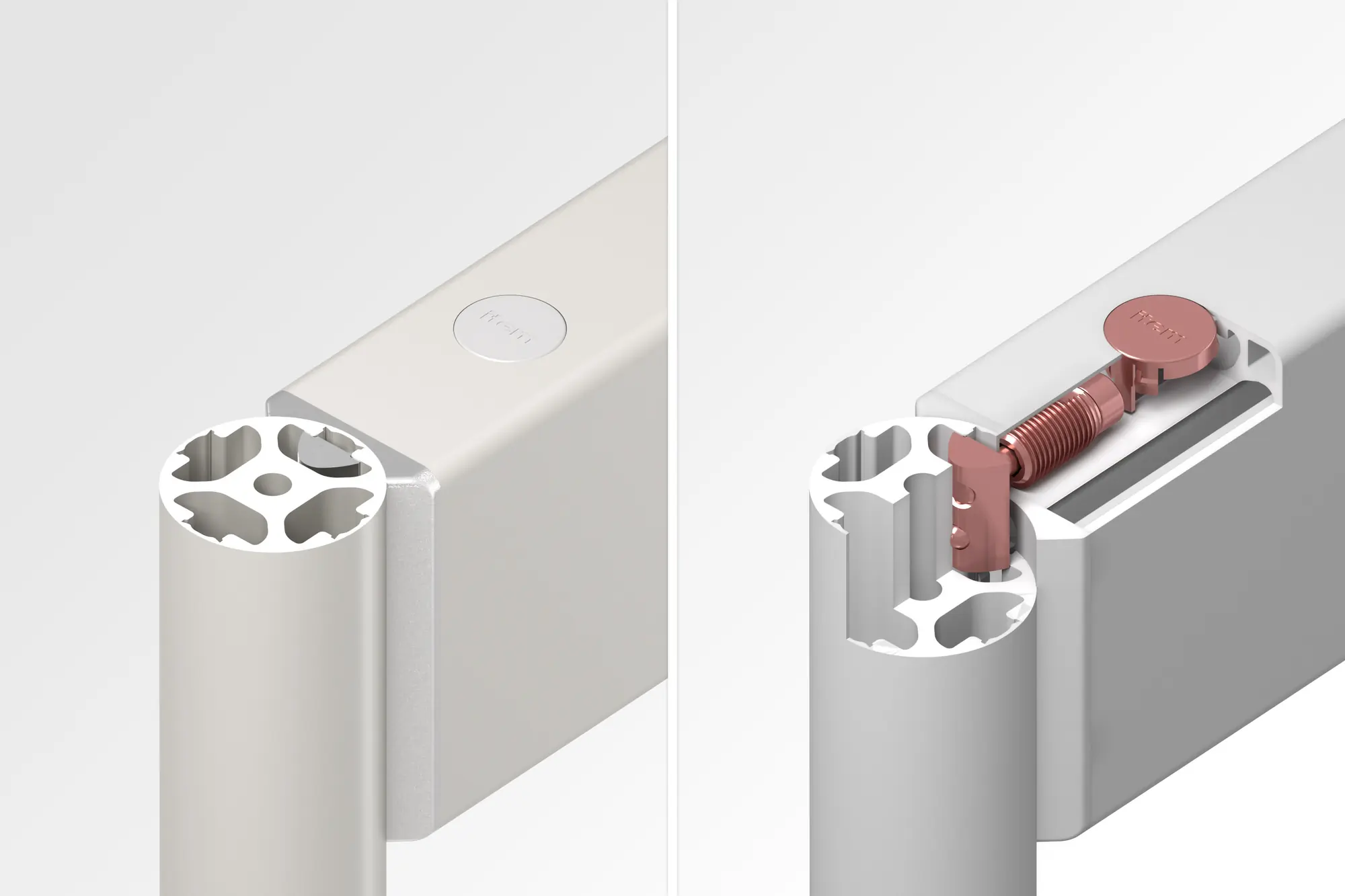

Adapter 8 80x40/D40 (0.0.489.87) is used to connect a Profile 8 80x40.

Automatic-Fastening Sets should always be used in pairs.
