Automatic-Fastening Set 5, stainless

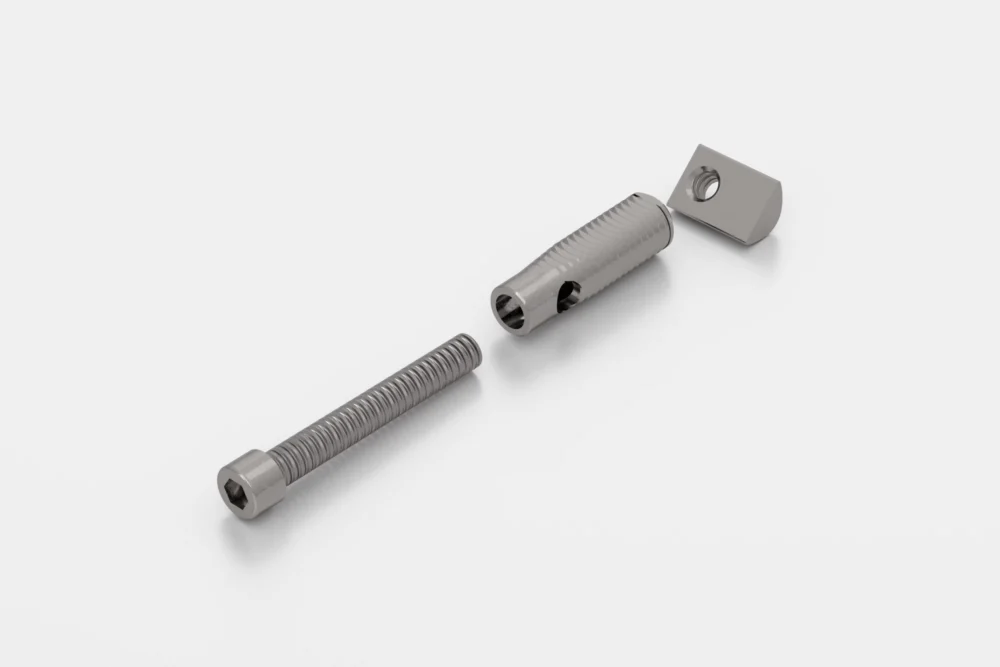

Automatic Fastener 5, St, stainless Screw M4x30, St, stainless T-Slot Nut 5 St M4, stainless
Scope of Delivery
Automatic Fastener 5, St, stainless Screw M4x30, St, stainless T-Slot Nut 5 St M4, stainless
Properties
| Torque | M = 2.5 Nm |
|---|---|
| line 5 | line 5 |
| Property | stainless |
| ESD-safe | Yes |
| Weight | m = 8 g |
| Delivery unit | 1 set |

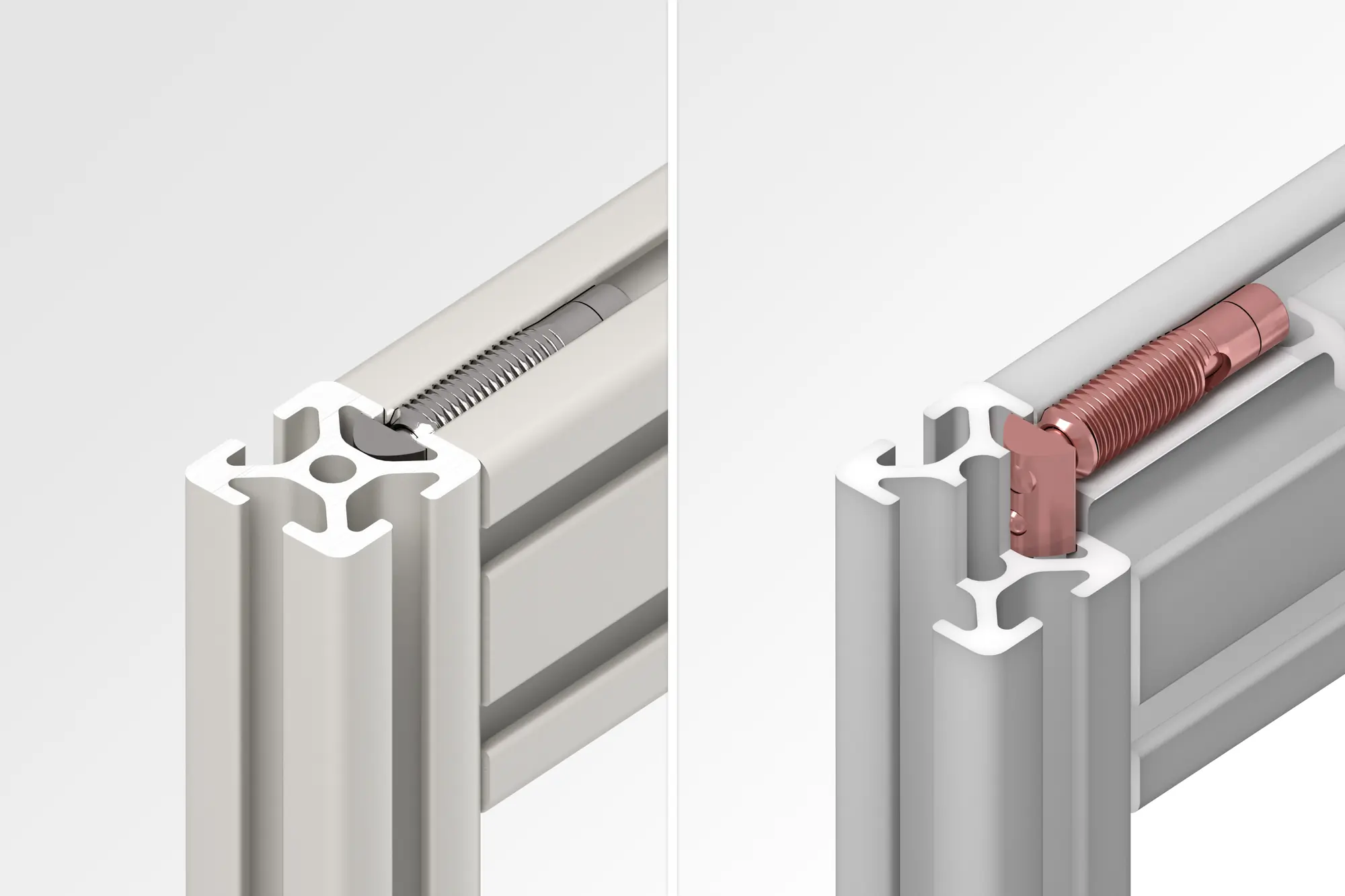

Automatic-Fastening Set 5, stainless from item joins two Line 5 profiles at a right angle to create a connection that is highly resistant to displacement, torsion and bending. The fastener can be used to prevent twisting. Automatic Fasteners are screwed into the profile groove and do not require any profile machining. Profiles can be retrofitted to constructions and moved at any time.
Automatic Fasteners should generally be used in pairs. To speed up the installation process, sets that comprise two Automatic Fasteners and one T-Slot Nut with two threads are also available for various profile variants.
With automatic fastening sets, profiles can be retrofitted or moved in existing constructions.
Automatic-Fastening Set 5 should be inserted so that the flattening on the thread is flush with the outer edge of the profile.
