| Flange D30-90×90 | CADPDFRFQ |
Preview
Flange D30-90×90

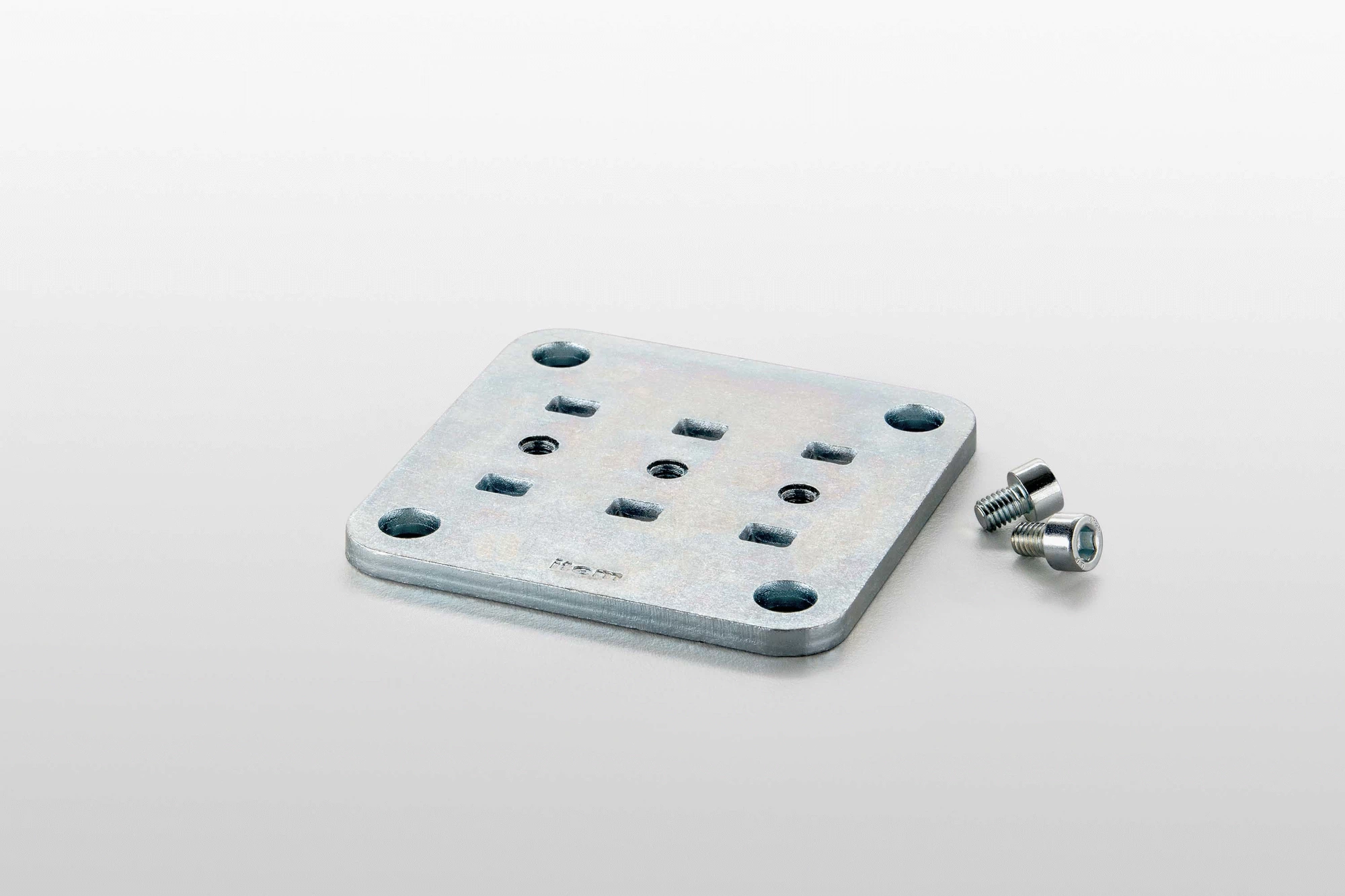

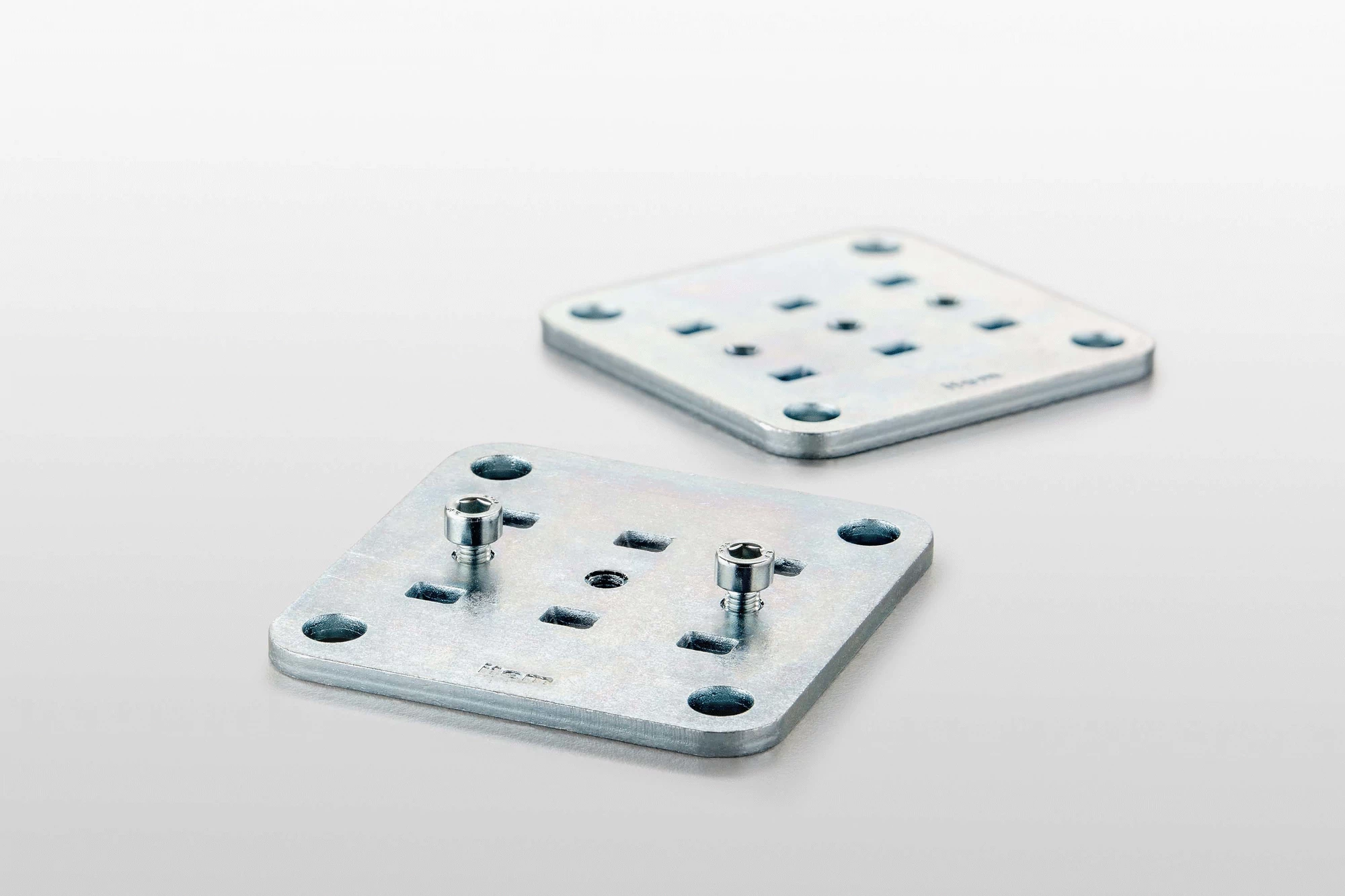

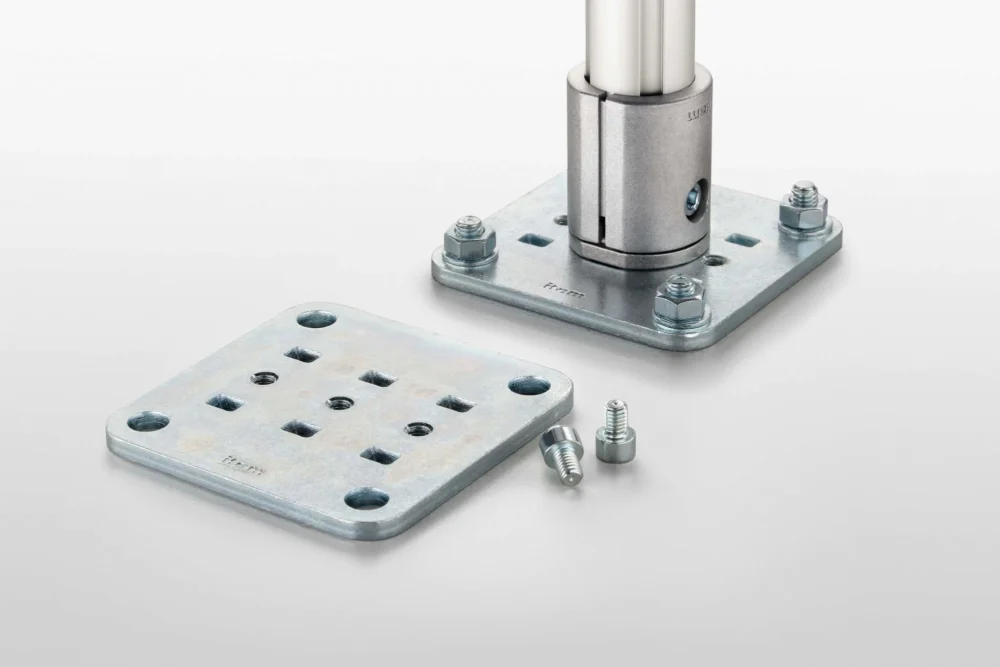

Flange 90×90, St, bright zinc-plated 2 screws DIN 912 M6x8, St, bright zinc-plated
Scope of Delivery
Flange 90x90, St, bright zinc-plated 2 screws DIN 912 M6x8, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 300 g |
| Delivery unit | 1 set |

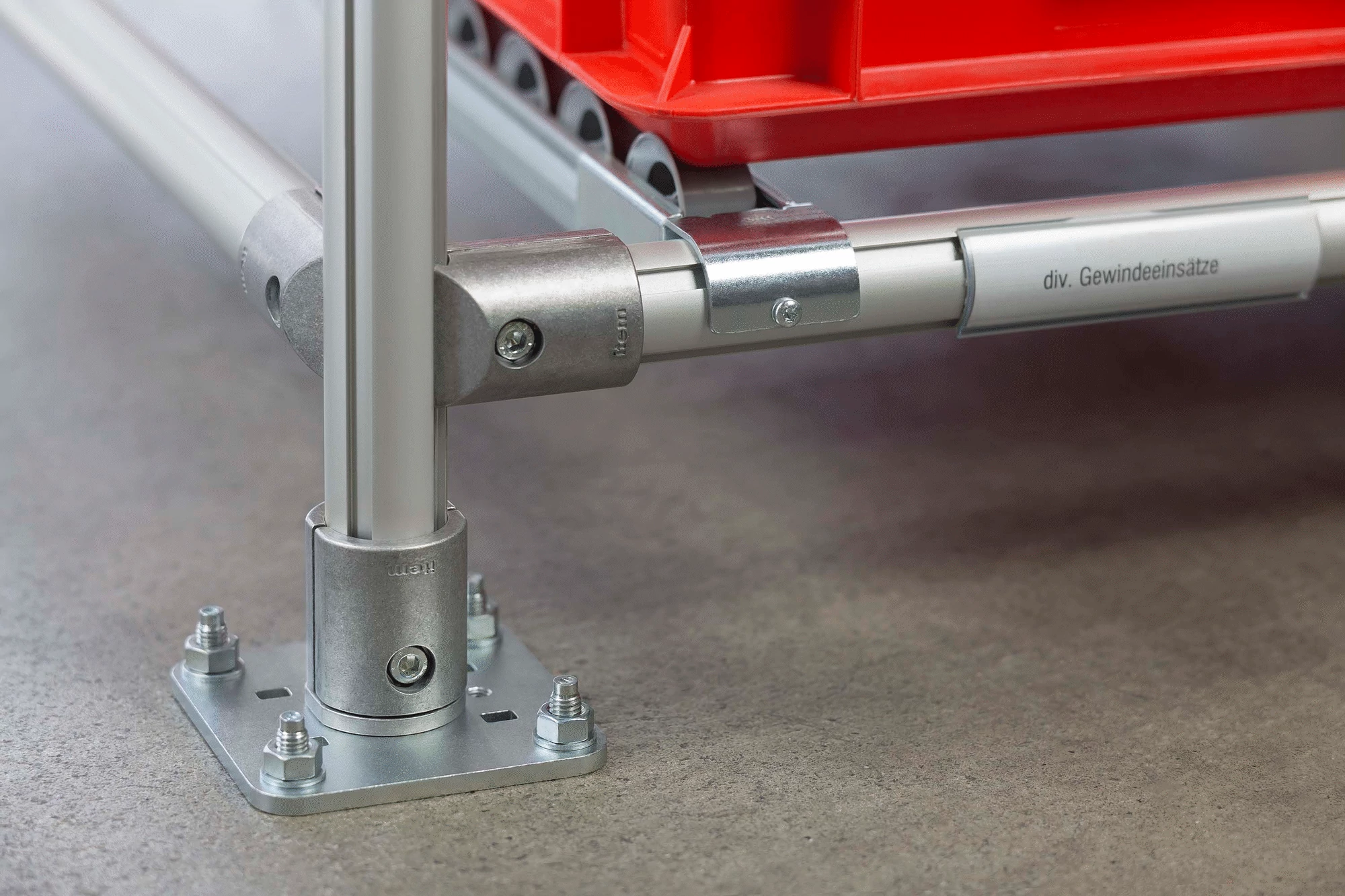

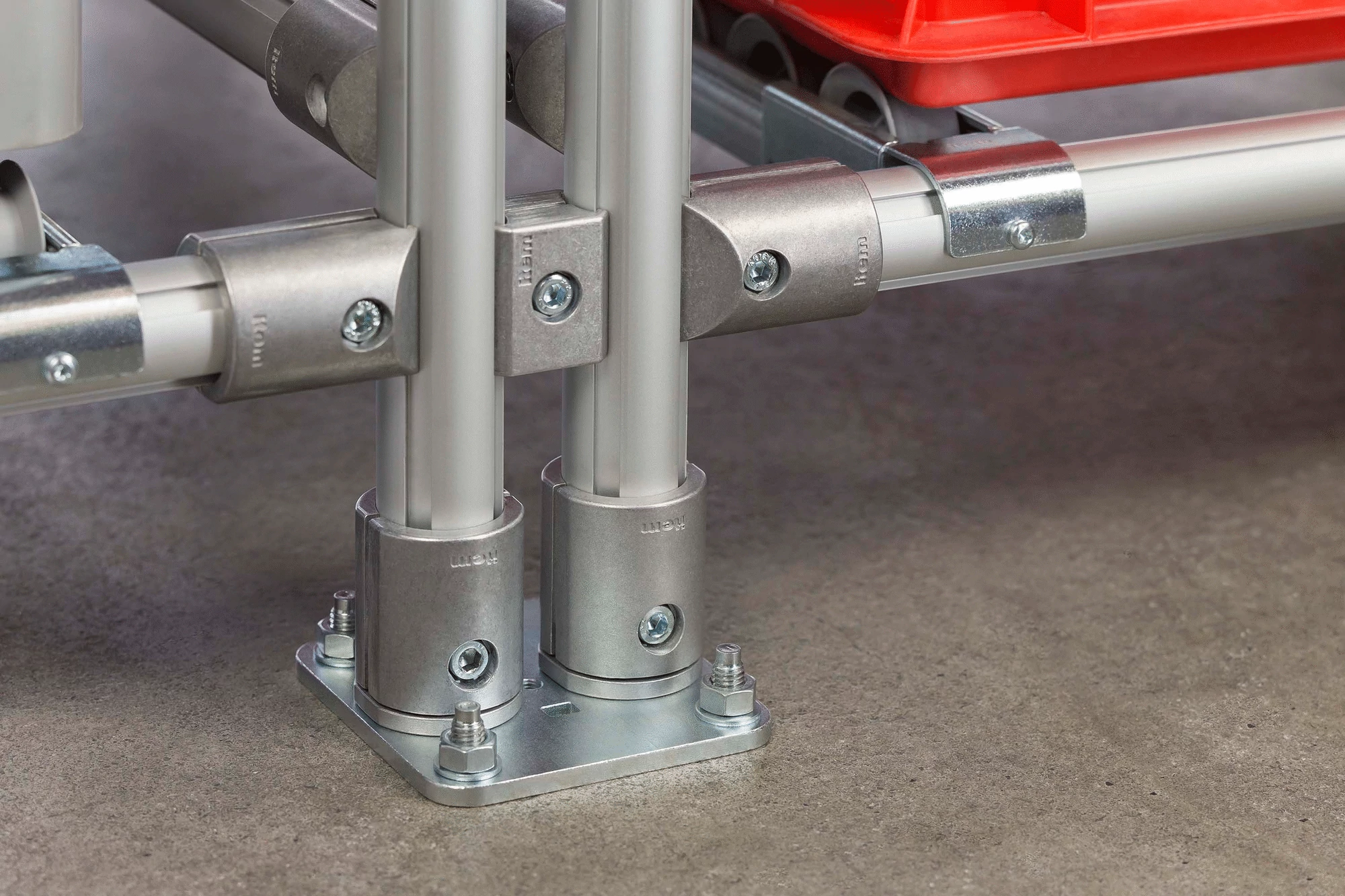

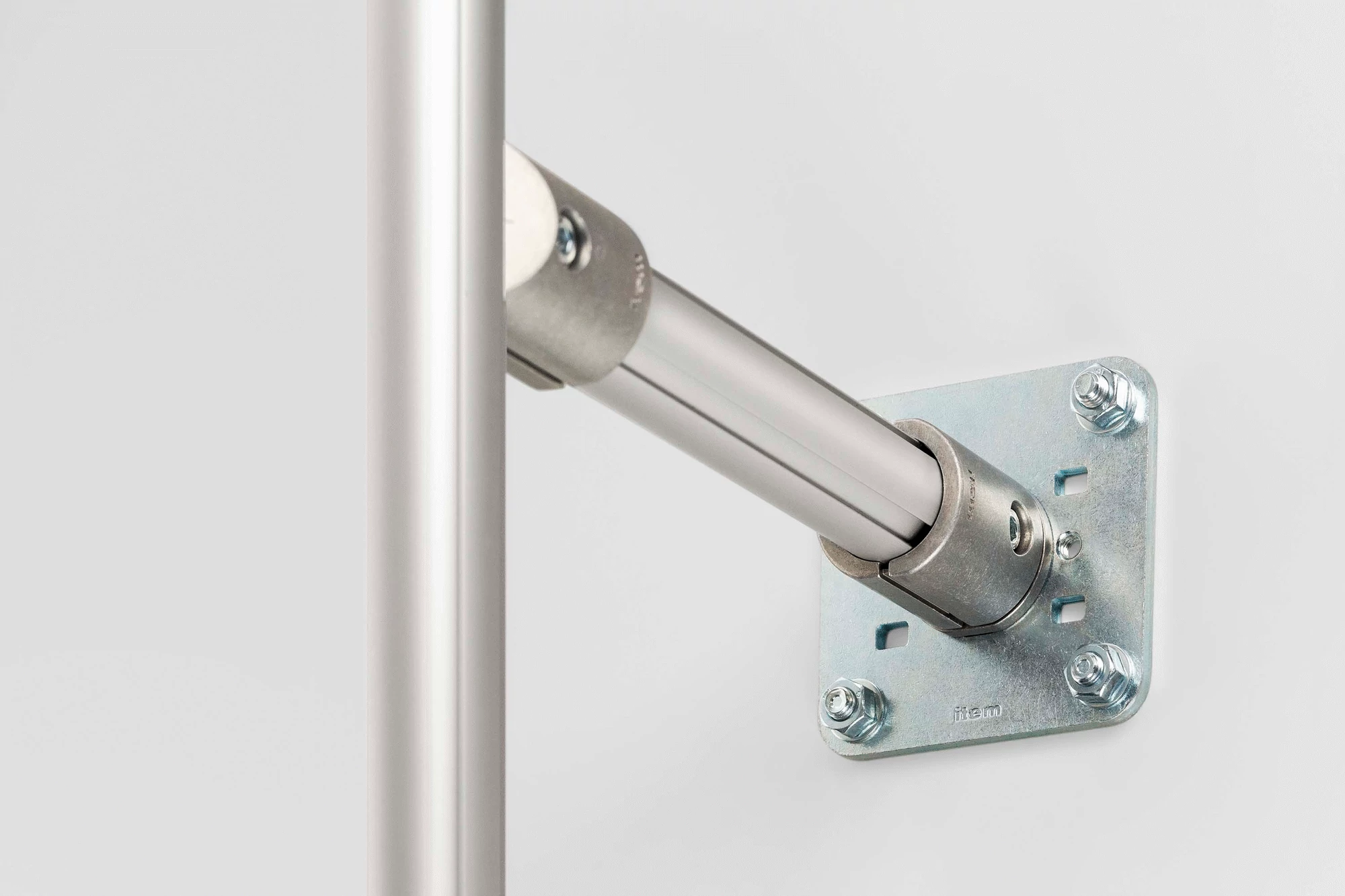

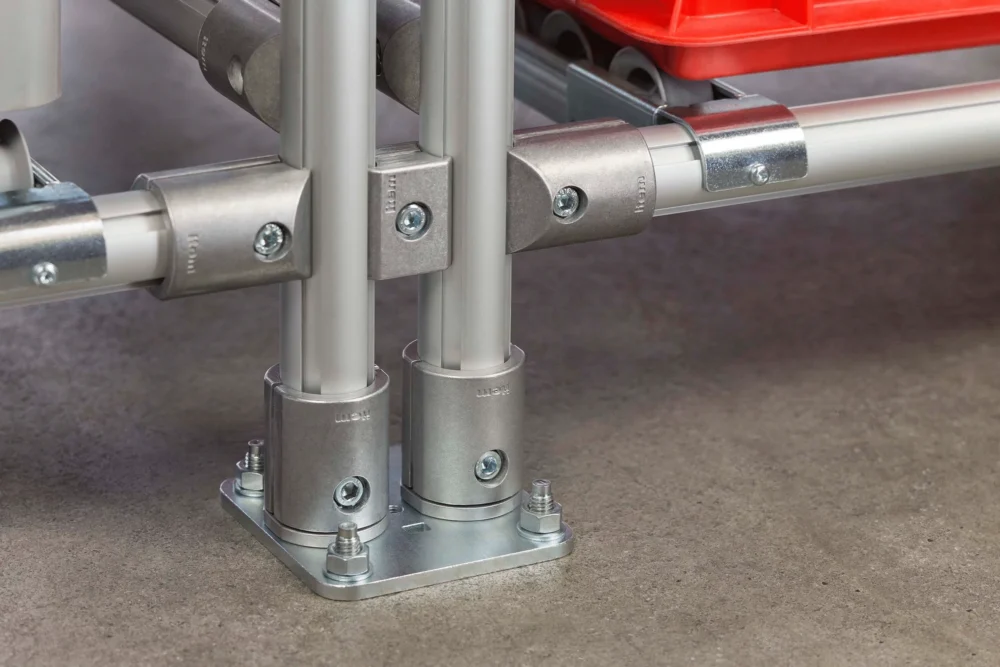

The universal fastening for Line D30 profiles and tubes is here! Flange D30 connects D30 constructions to walls, floors, ceilings and other surfaces. Simply screw into place. And it holds. When using Adapter 8 D30 or End Connector 8 D30-90°, one or even two (Profile) Tubes D30 can be fastened to the Flange. The additional use of Parallel Fastener D30 produces exceptionally stable basic constructions. Because Fasteners D30 clamp onto the outer surface of profiles, tubes and adapters, even existing constructions can be connected to virtually any surface.
