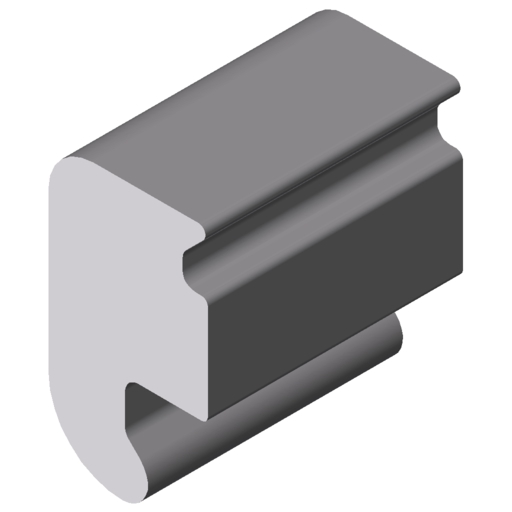

Guide Rail Clamping Profile PS 4-25, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 529 g/m |
| Delivery unit | 1 pce., length 2000 mm |
| Material | Al, anodized |
| Colour | natural |
Linear Guide Rail PS 4-25 uses fastening profiles to create a clamping effect. A Guide Rail Mounting Profile, a Guide Rail Clamping Profile and the appropriate number of Hexagon Socket Head Cap Screws DIN 6912-M6x40 are required to mount each guide rail. The screws connect the two components of the linear guide system while the fastening profiles do not need to be machined. Recommended tightening torque for the screws M A = 10 Nm .
