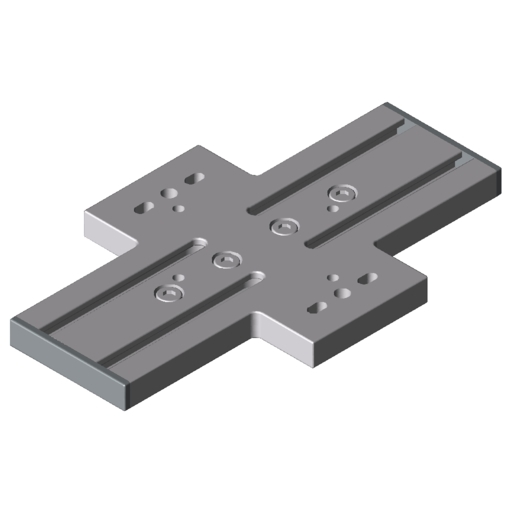

Transverse Carriage Plate KLE 8 80×80

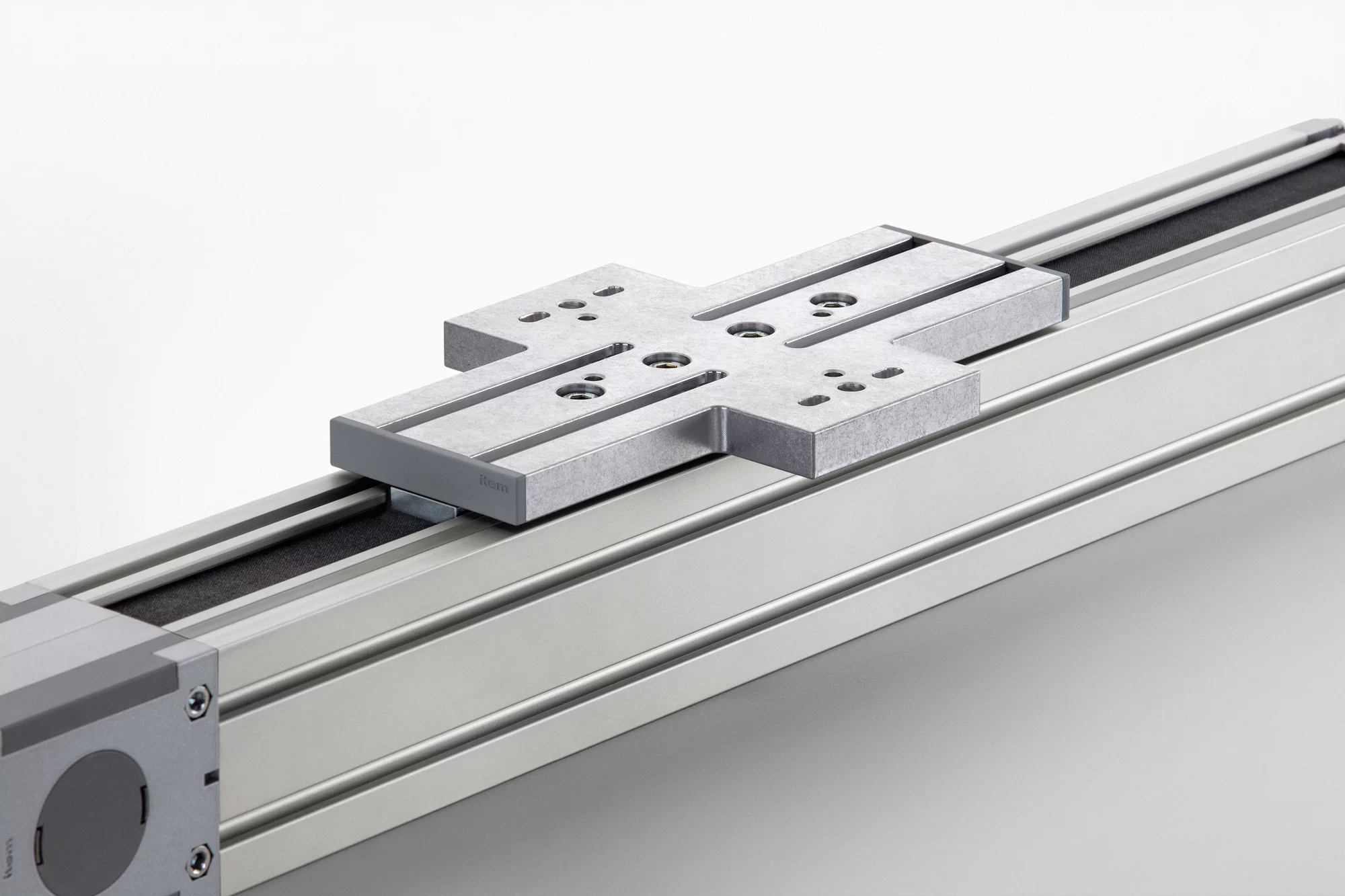

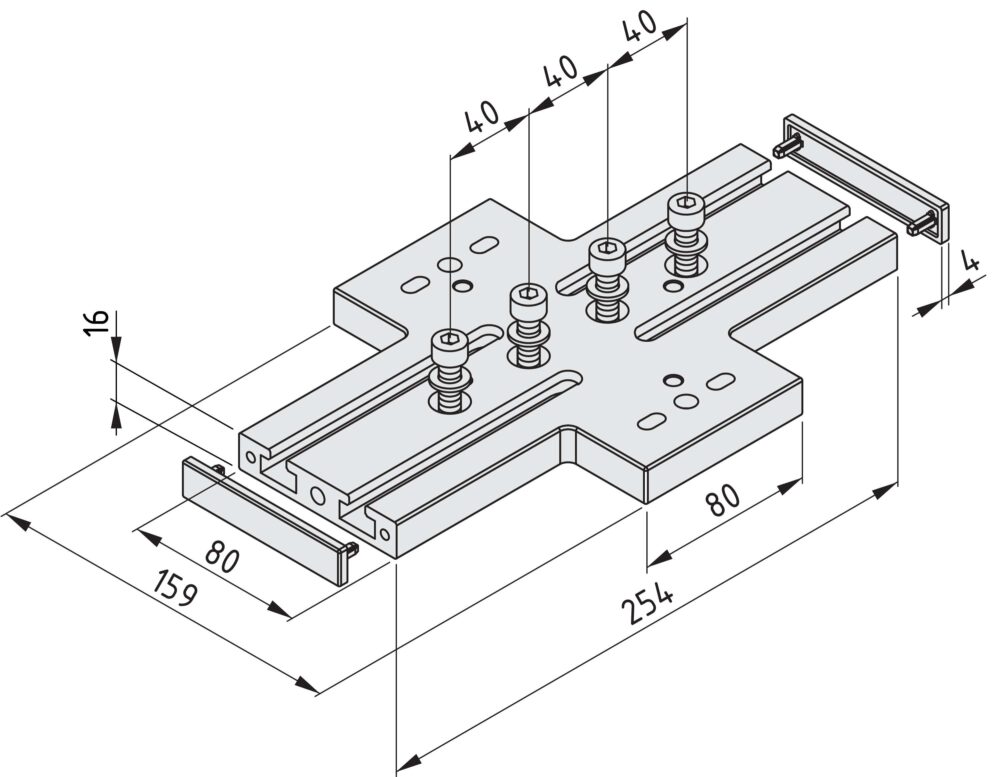

Twice as good! Transverse Carriage Plates KLE significantly speed up the process of designing, building and commissioning multi-axis systems based on Linear Unit KLE. Only a small number of components are needed to design a safe and robust complete system. In the case of applications such as pick-and-place solutions, the connection between the two Linear Units is a critical element that requires complex fastening technology or specially milled parts. When using Transverse Carriage Plate KLE, a single component is all it takes to create a secure connection. This reduces the number of required parts and means multi-axis systems can be commissioned faster. The Transverse Carriage Plate is screwed to the guide carriage of Linear Unit KLE and the secondary linear unit is fastened at a right angle to the primary linear unit’s direction of travel. The large supporting surface area ensures a torsion-resistant connection. Models with suitable modular dimensions can be used as a secondary linear unit (see table). The Plate comes with all the necessary drilled holes and can be selected as an accessory for a Linear Unit KLE in item MotionDesigner ® . This online software helps you design and select Linear Units so you can create an optimum complete solution. The Transverse Carriage Plate is available for Linear Units KLE 6 and KLE 8 in a modular dimension of 60 mm and 80 mm.
