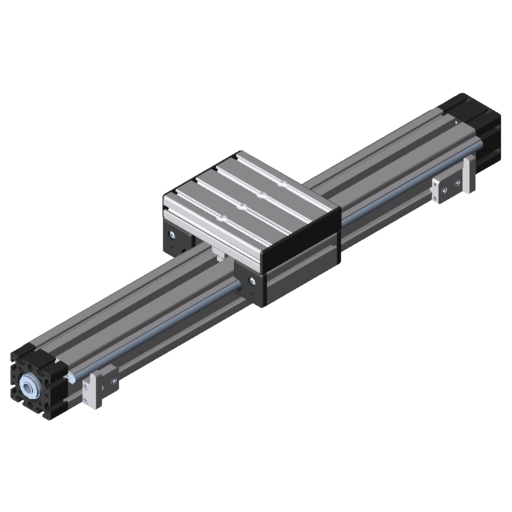

Preview
Linear Unit LRE 8 D14 80×80 KGT 20×20
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Moment of Inertia, torsional | It = 13.83 cm4 |
| Moment of Inertia, x-axis | Ix = 202.12 cm4 |
| Moment of Inertia, y-axis | Iy = 220.68 cm4 |
| Total mass | m = m1 + H * m2 |
| Maximum operating load | Fx max = 2000 N |
| Maximum force in direction y | Fy max = 2400 N |
| Maximum force in direction z | Fz max = 1600 N |
| Weight | m = 10.0171862 kg |
Thanks to its ball screw drive, Linear Unit LRE 8 D14 80x80 KGT 20x20 boasts extremely high repeat accuracy. The spindle lead of 20 mm supports a maximum speed of up to 1 m/s and a high operating load. Using roller guides D14 supports a high payload of up to 160 kg.
h = horizontal orientation v = vertical orientation
Travel speed v in relation to input speed n (ball screw, chain and rack drives)
Operational force Fx dependent on input torque M (ball screw drive, chain drive, rack drive)
