| Universal-Fastening Set 12, bright zinc-plated | CADPDFRFQ |
Preview
Universal-Fastening Set 12, bright zinc-plated
Universal Fastener 12, die-cast zinc Hexagon Socket Head Cap Screw DIN 7984-M12x45, St, zinc-plated Washer DIN 433-13, St, zinc-plated T-Slot Nut 12 St M12, zinc-plated
Scope of Delivery
Universal Fastener 12, die-cast zinc Hexagon Socket Head Cap Screw DIN 7984-M12x45, St, zinc-plated Washer DIN 433-13, St, zinc-plated T-Slot Nut 12 St M12, zinc-plated
Properties
| line 12 | line 12 |
|---|---|
| Property | bright zinc-plated |
| ESD-safe | Yes |
| Weight | m = 155 g |
| Delivery unit | 1 set |
| Tightening torque, bright zinc-plated | Mbz-p = 60 Nm |

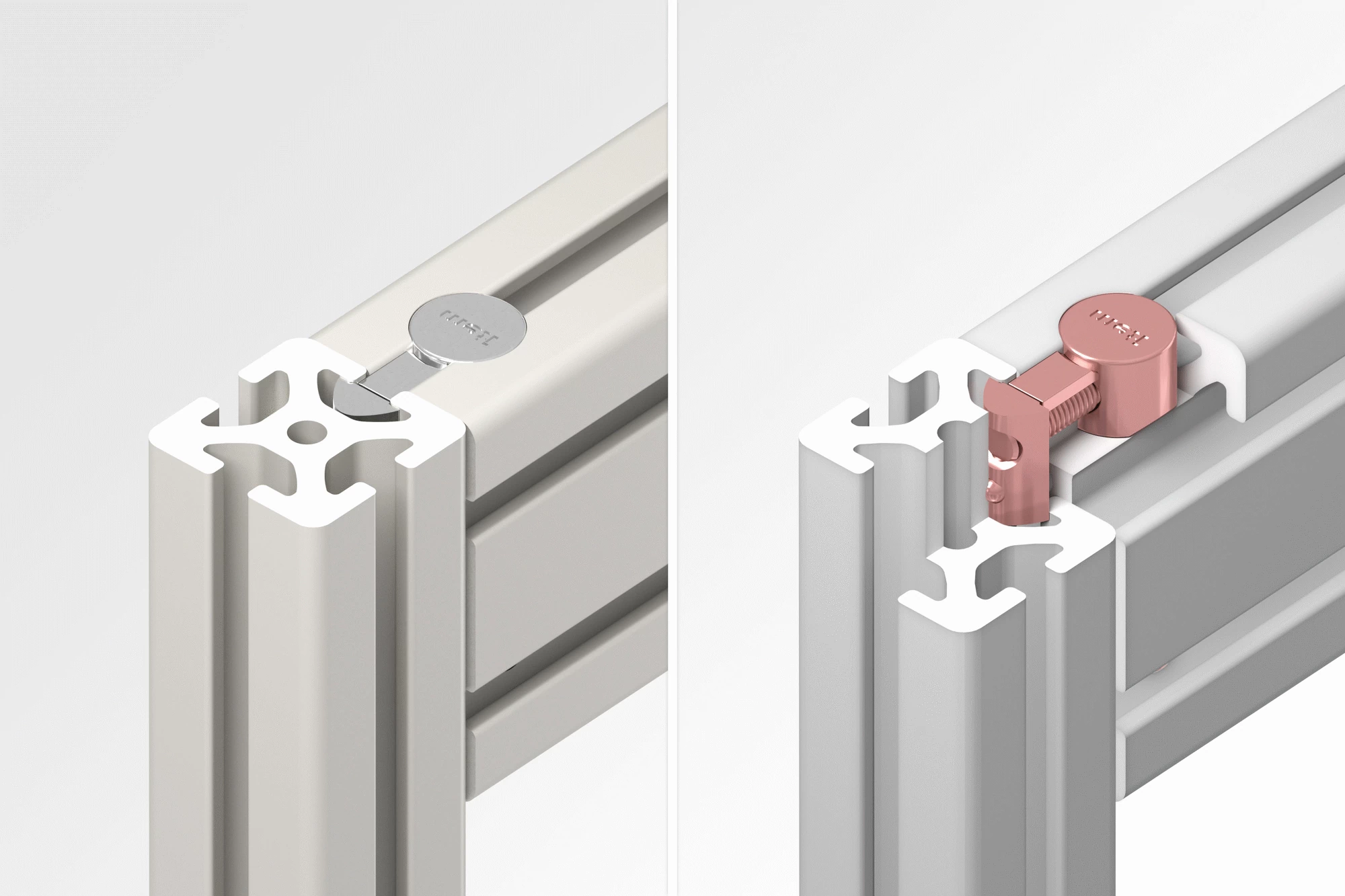

Universal-Fastening Set 12, bright zinc-plated from item joins two Line 12 profiles at a right angle to create a non-rotating connection that is highly resistant to displacement, torsion and bending. The profile can be retrofitted and moved at any time. The Universal Fastener is made of die-cast zinc and requires an installation bore.
Profiles can be retrofitted or moved in existing constructions using universal fastening sets.
