| Universal Holder 8 K, Cover Profile Cap 40×20, grey similar to RAL 7042 | CADPDFRFQ |

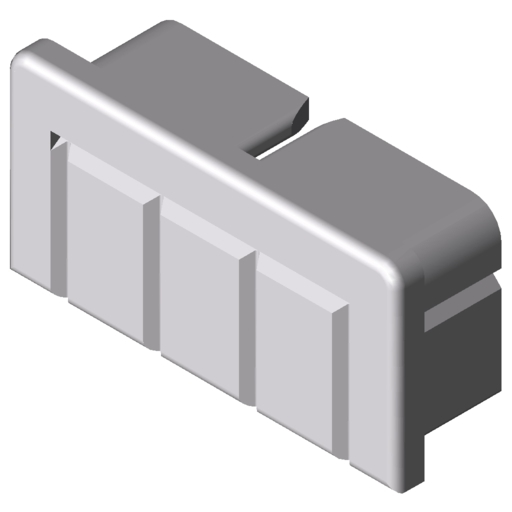

Preview
Universal Holder 8 K, Cover Profile Cap 40×20, grey similar to RAL 7042
Properties
| line 8 | line 8 |
|---|---|
| Line | FT |
| ESD-safe | No |
| Weight | m = 4 g |
| Delivery unit | 1 pce. |
| Material | PA-GF |
| Colour | grey similar to RAL 7042 |

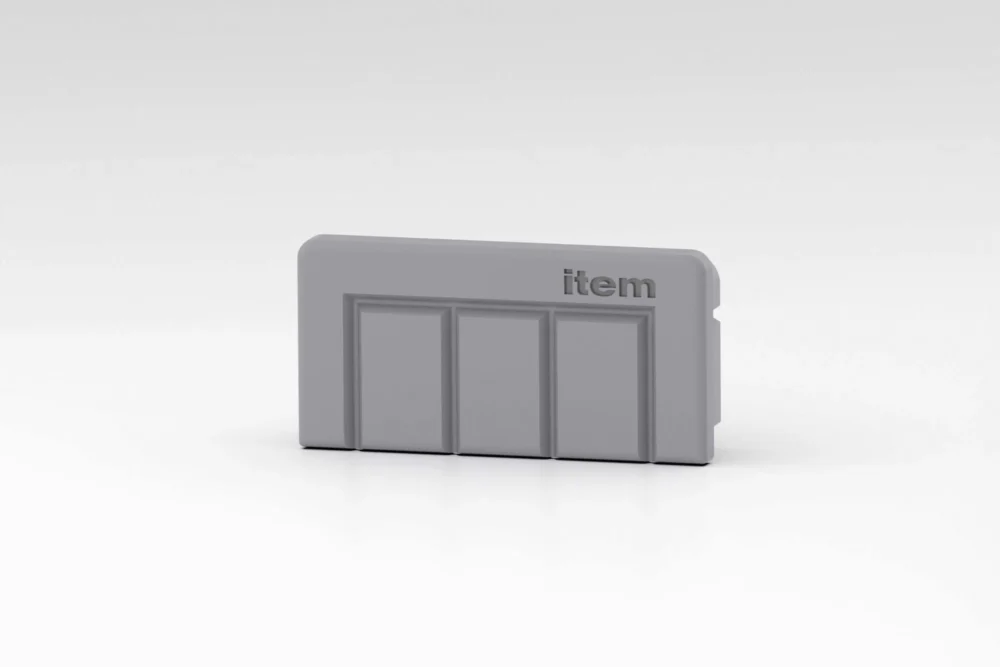

Universal Holder 8 K, Cover Profile Cap 40x20 is inserted into Universal Holder 8 K, Cover Profile 40x20 (0.0.710.56) to seal the end-face of the cable conduit. Three pre-stamped sections ensure cables can be fed through while keeping the opening in the conduit as small as possible.

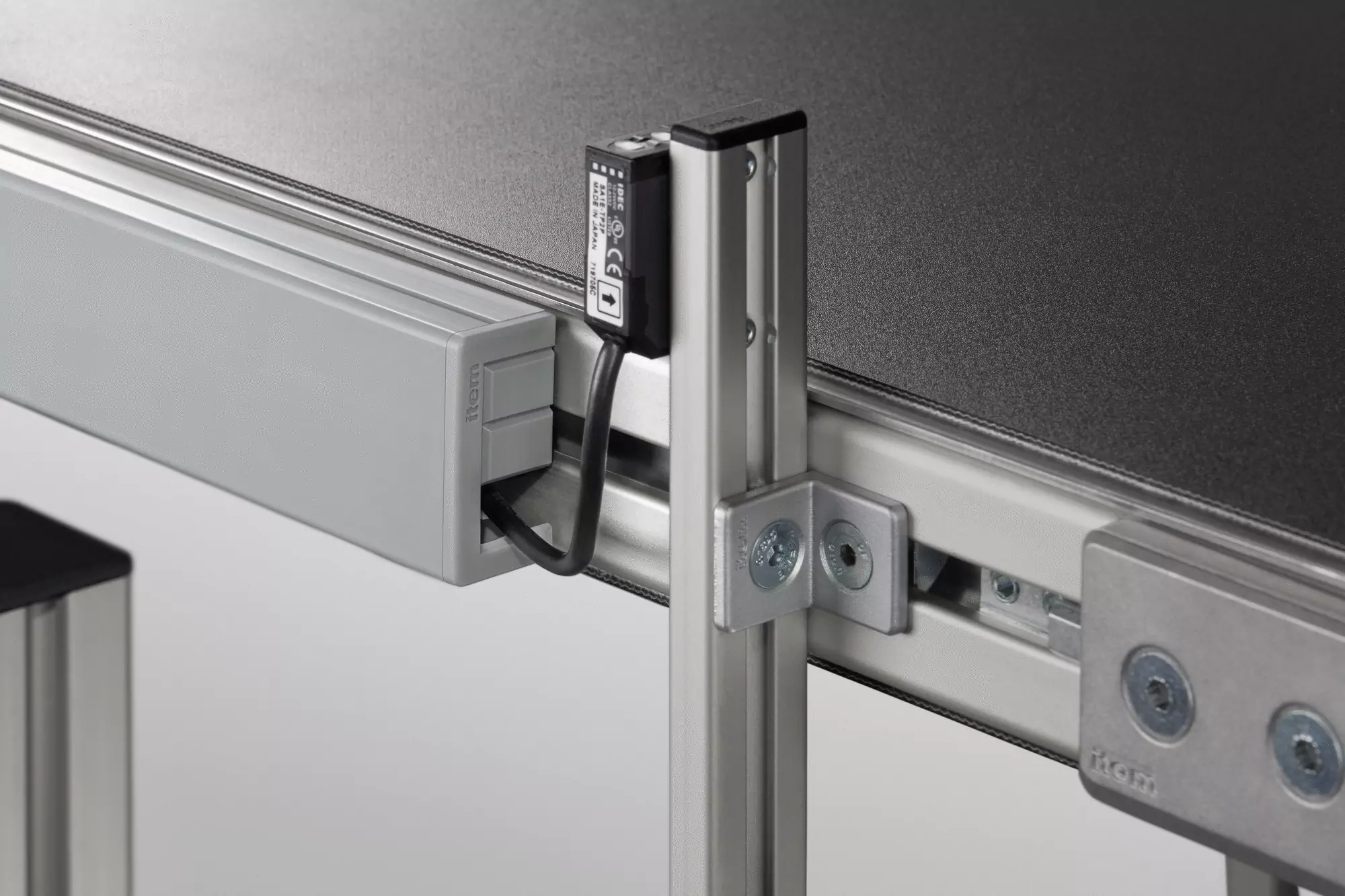

Universal Holder 8 K is a three-part system for enclosed cable guidance along a groove. Universal Holder 8 K, Retainers are first fastened to the Line 8 groove, then Cover Profile 40x20 is clipped on along the entire length and its ends are sealed with Cover Profile Caps. The end result is a compact cable conduit in the modular dimension and with custom outlets – all installed with ease.

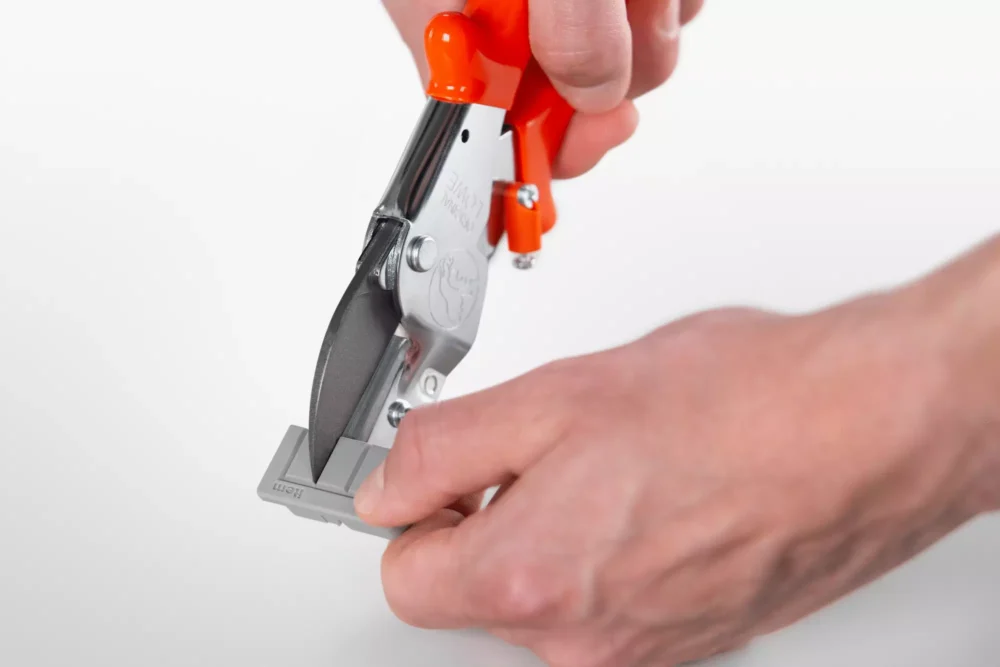

Cover Profile Cap 40x20 can be opened up easily with a side cutter. The slimmed-down outlines in the plastic make it easy to cut out the relevant section(s) with precision.
