Universal Holder 8 K, Cover Profile Cap 40×20, grå tilsvarende RAL 7042

Konfigurerte produktdata

Ingenting generert ennå

Du må konfigurere produktet nedenfor før du ber om tilbud
Produktnr: 0.0.713.31 Kategorier: , Stikkord:
Still inn CAD-format
0.0.713.31

Forhåndsvisning

Properties

linje 8linje 8
ESD-safeNei
Vektm = 216 g/m
Leveringsenhetcut-off max. 3000 mm
MaterialePVC
Colourgrå lik RAL 7042

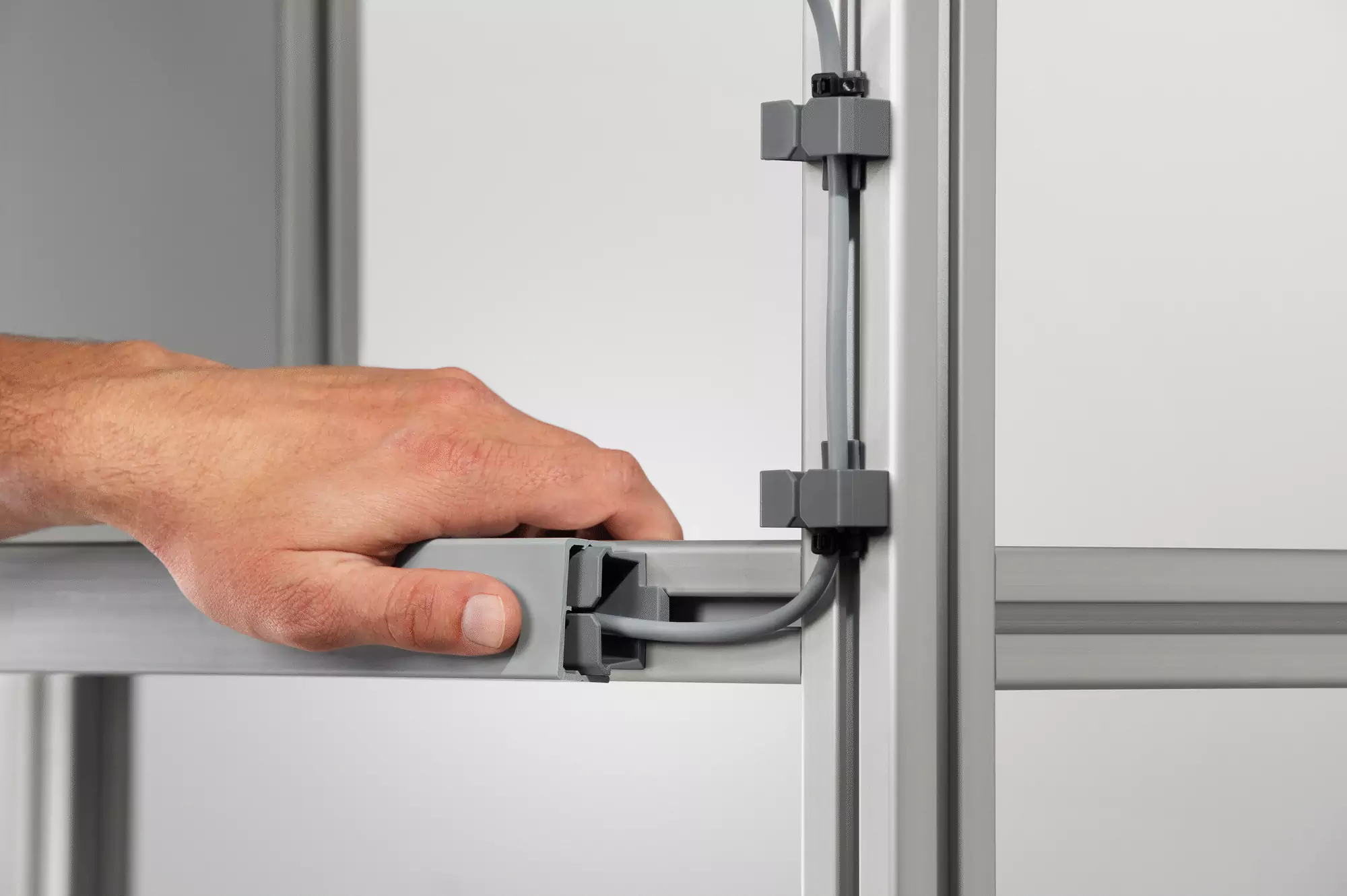

Universal Holder 8 K, Cover Profile 40x20 clips onto multiple Universal Holder 8 K, Retainers (0.0.710.64) and cleanly covers over cables that are routed through it. It can easily be removed again, as required.

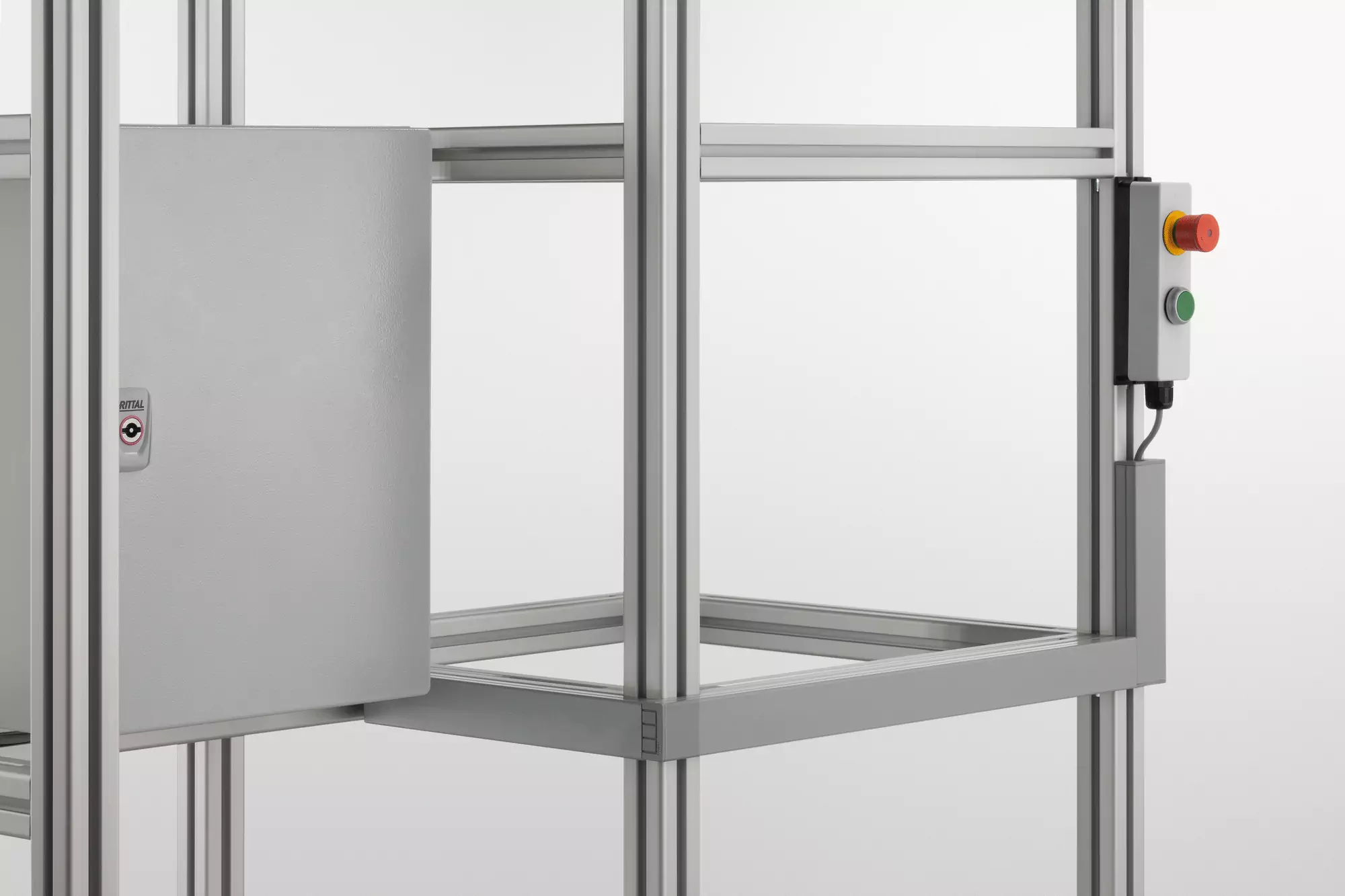

Universal Holder 8 K is a three-part system for enclosed cable guidance along a groove. Universal Holder 8 K, Retainers are first fastened to the Line 8 groove, then Cover Profile 40x20 is clipped on along the entire length and its ends are sealed with Cover Profile Caps. The end result is a compact cable conduit in the modular dimension and with custom outlets – all installed with ease.

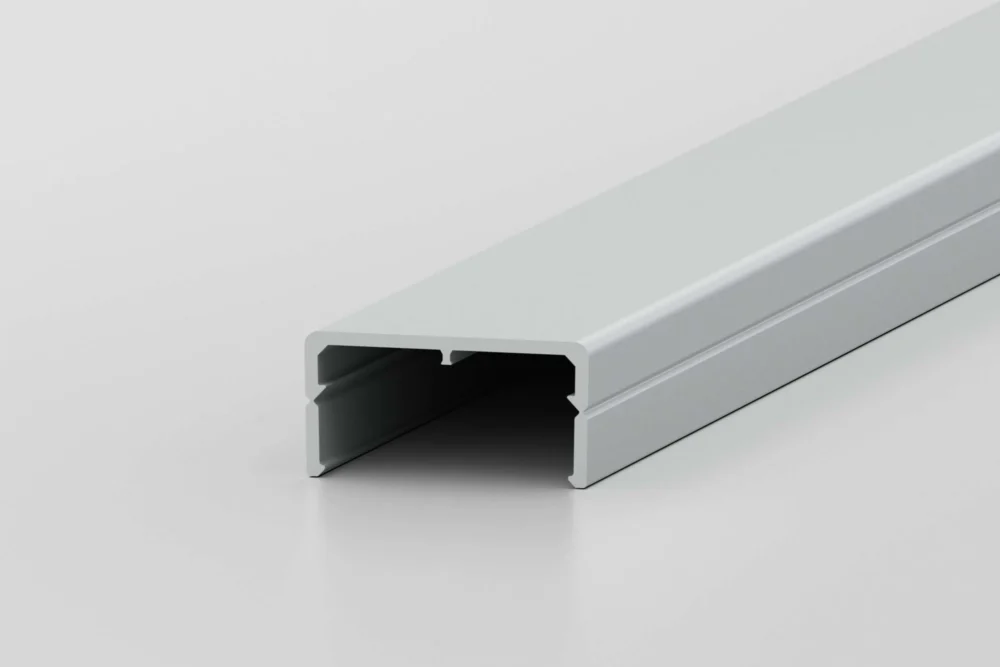

The plastic profile can be cut to size with a saw or side cutters. There are tapered sections in the sides so that cable outlets can be incorporated. They make it easier to open up specific points using item Multi-Purpose Pliers
