Conveyor Rail Profile 6 30×30-80, natural

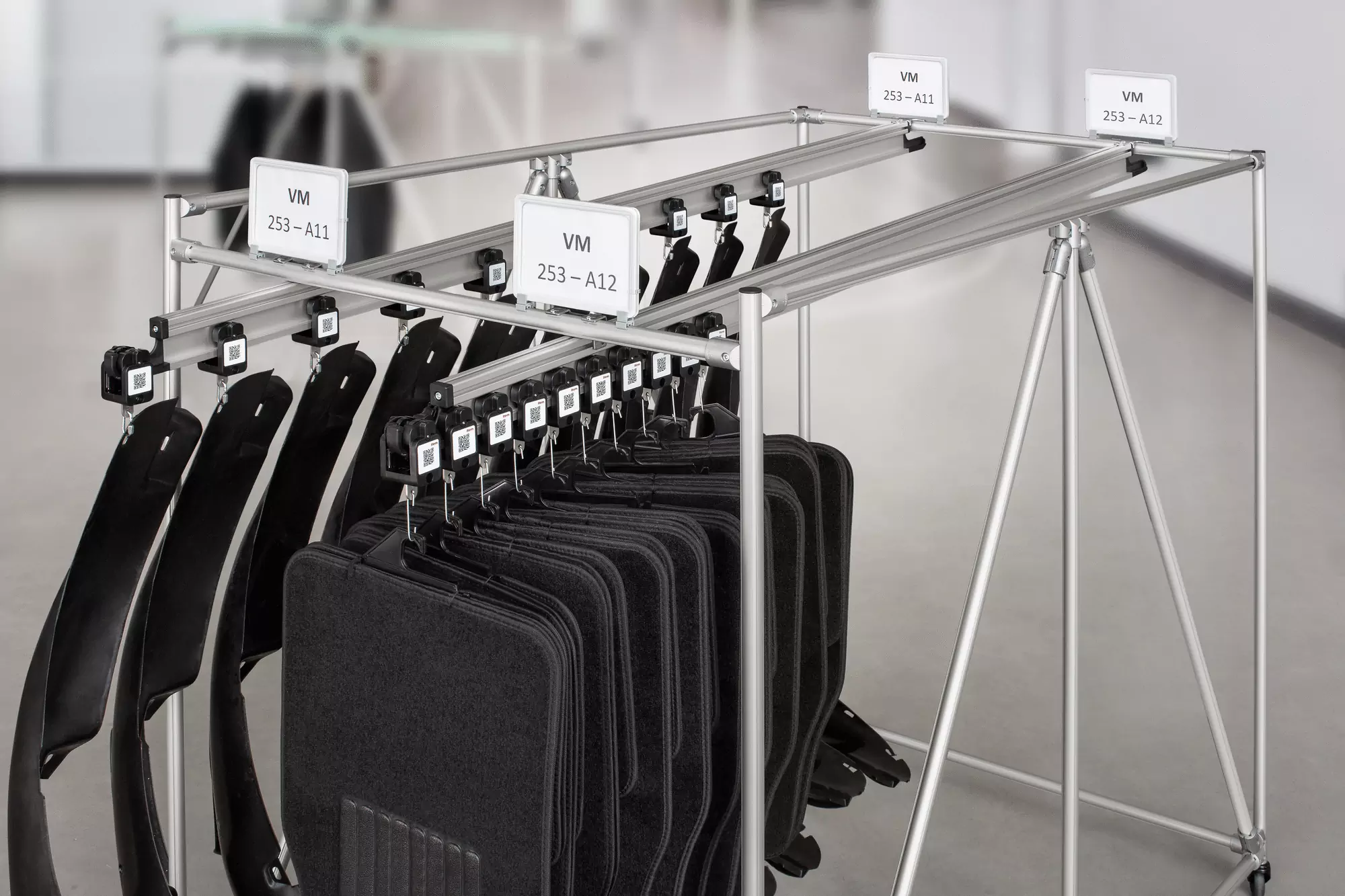

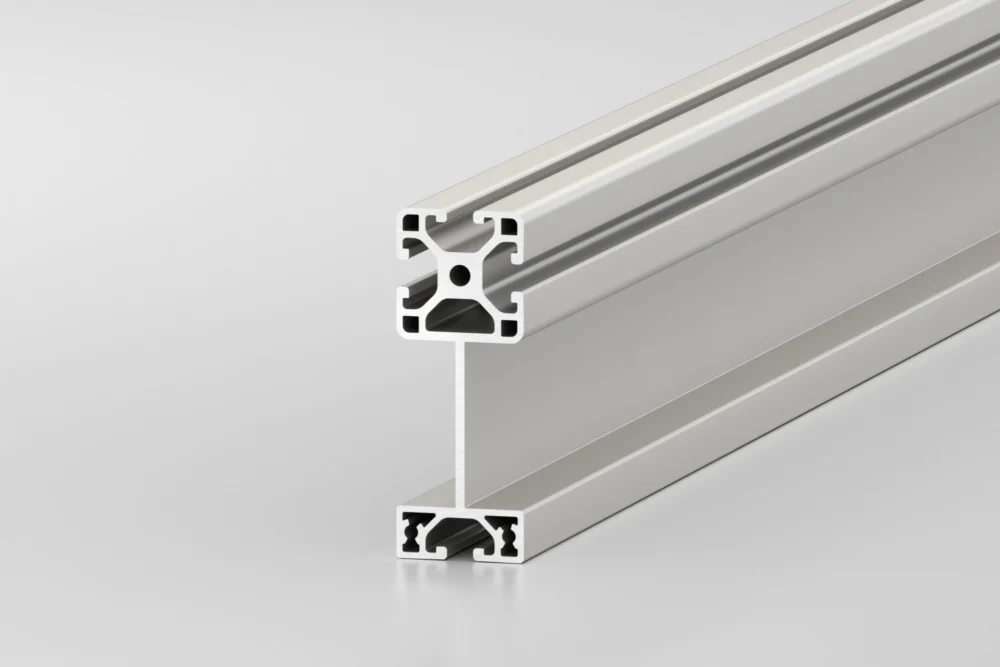

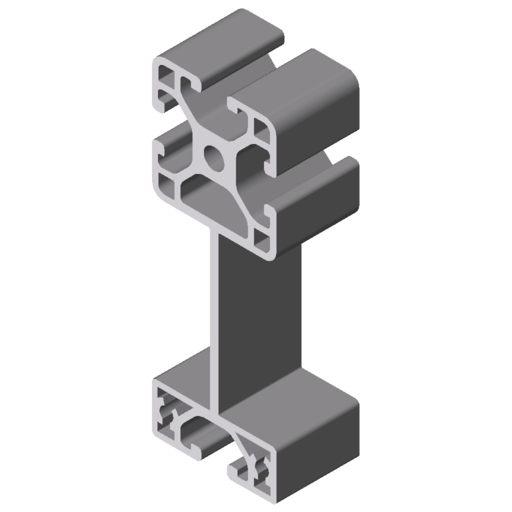

Conveyor Rail Profile 6 30x30-80 is the track for the item Suspended Conveyor System. Three Line 6 grooves run along its top section and these can be used to fasten the Conveyor Rail Profile to a frame with Fastening Brackets or to mount accessories. When using the item Carriages, an incline of 3° is all that is needed to ensure goods will travel along the line reliably by gravity.

The Fastening Brackets of the item Suspended Conveyor System are used to integrate Conveyor Rail Profile 6 30x30-80 into material supply solutions built using Profile Tube System D30. End Stop 6 30x30-80 ESD (0.0.716.12) supports the ergonomic removal of materials and carriages.

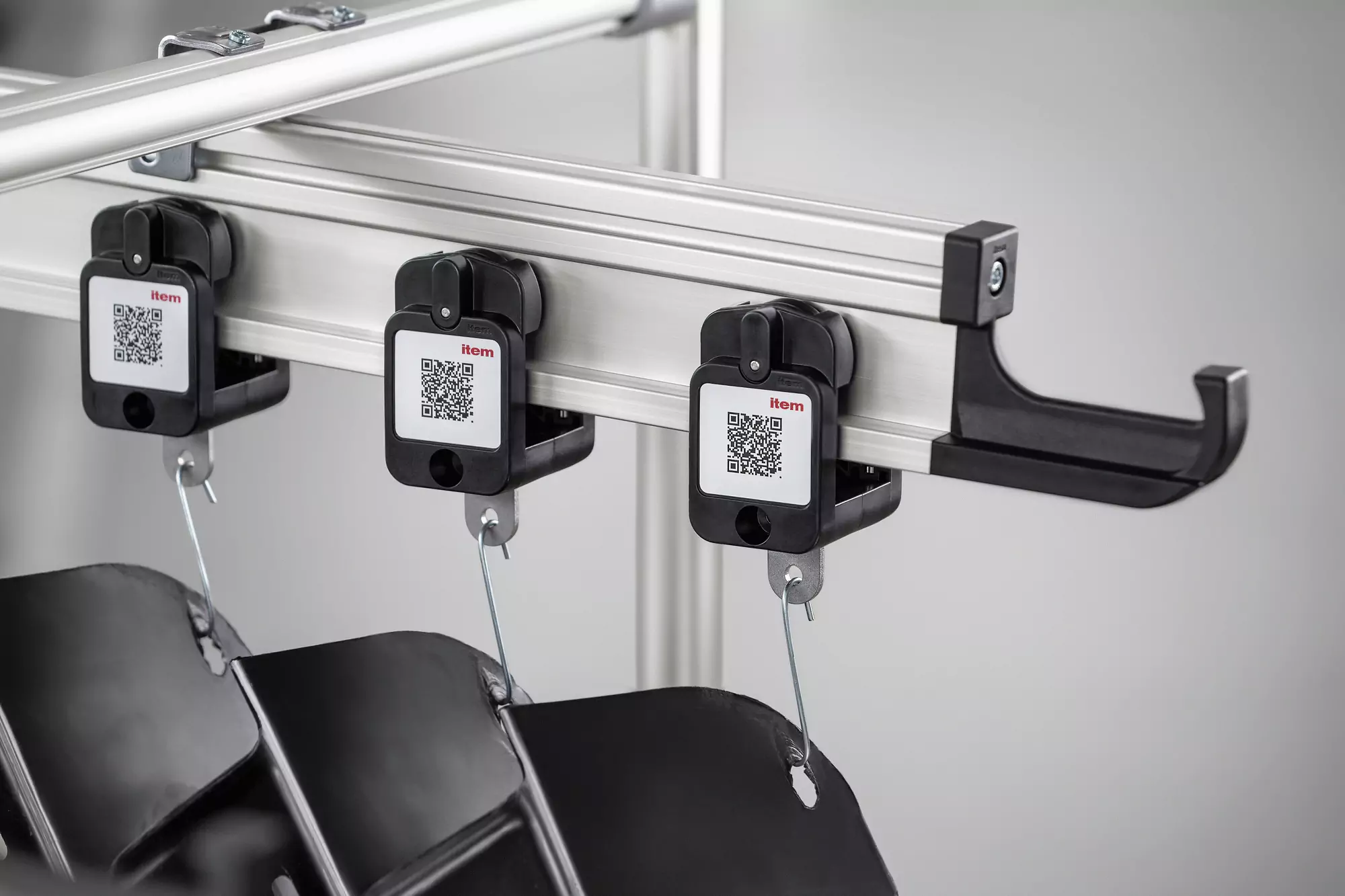

The Insertion Guide creates a protruding section that makes it easier to feed Carriages onto the conveyor line. Fastening Bracket 6 30 D30 (0.0.715.27) is used to fasten the Conveyor Rail Profile flush to a profile frame.

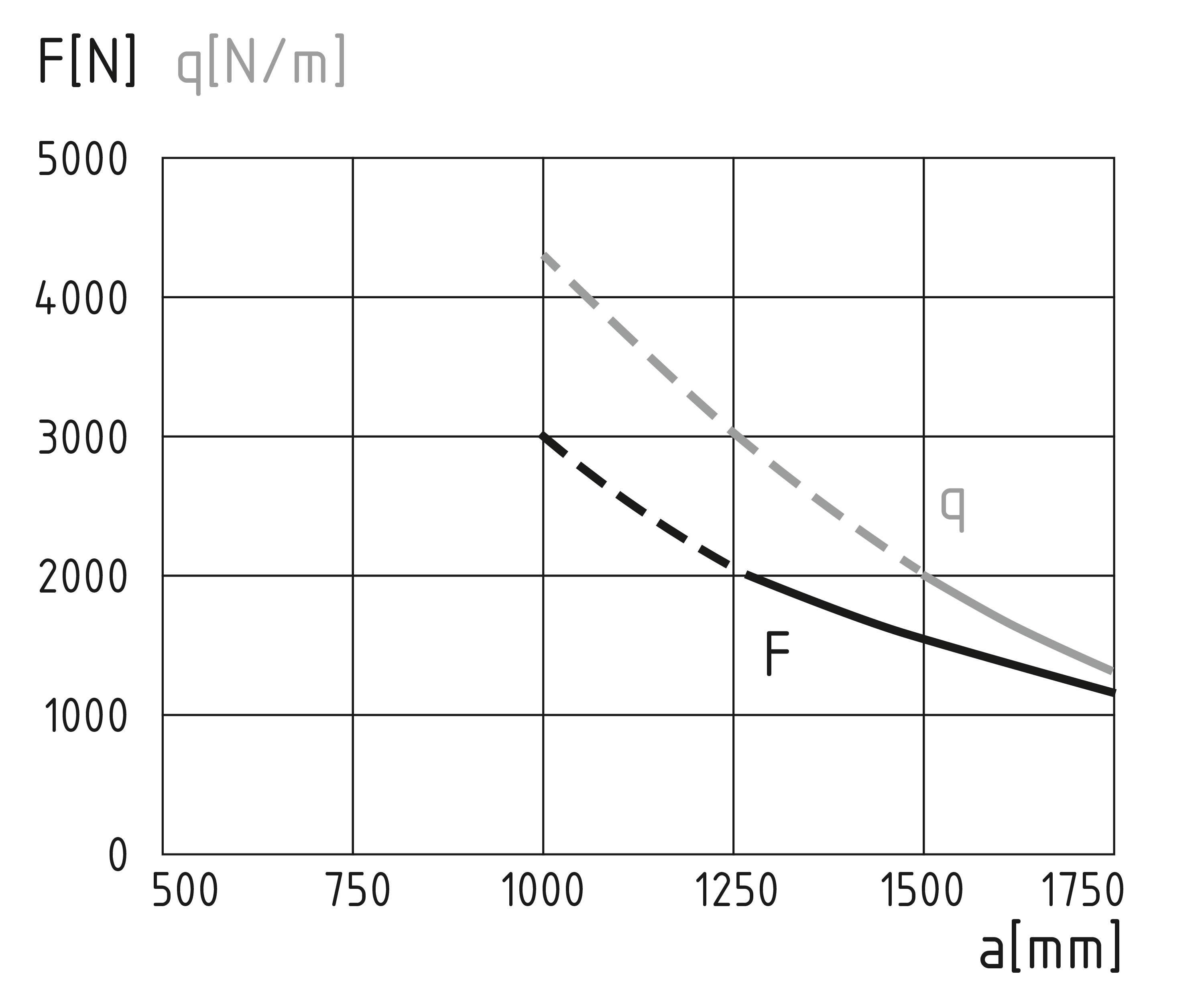

Conveyor Rail Profile 6 30x30-80: The diagram illustrates the permitted load in relation to support span a. It is based on the maximum permissible deflection set by item, which is 1/100 of the support span. When designing rack structures, please observe the limit values set out in the relevant statutory regulations (e.g. DGUV regulation 108-007 in Germany). In addition to the maximum load-carrying capacity of the Conveyor Rail, it is important to take into account the load limits of the adjacent components in the construction.
