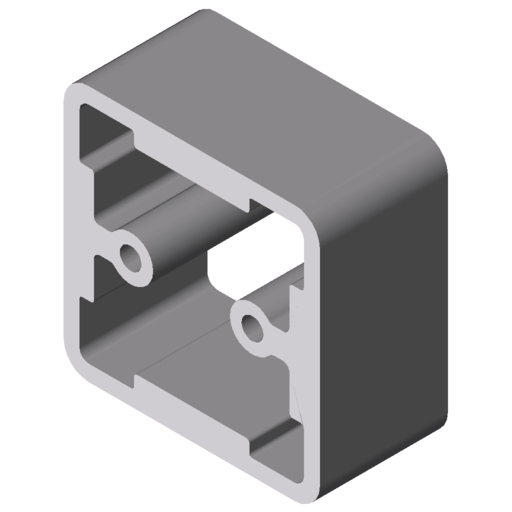

Telescope Profile 8 40×40, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Cross-sectional area | A = 5.92 cm2 |
| Moment of Inertia, torsional | It = 14.76 cm4 |
| Moment of Inertia, x-axis | Ix = 10.52 cm4 |
| Moment of Inertia, y-axis | Iy = 11.46 cm4 |
| Weight | m = 1.59 kg/m |
| Delivery unit | cut-off max. 3000 mm |
| Material | Al, anodized |
| Colour | natural |
Outer profile for constructing telescope profiles of variable length for adjusting the height or inclination of fixtures and equipment. A profile 6 30x30 must be used for the inner profile. The outer profile can be connected directly to a profile groove via its end face or using fastening elements (Hinges, heavy duty, etc.). Line 6 components are suitable for connecting the inside profile. The inner profile, which is guided by a sliding bearing in the telescope, is secured with the Telescope Securing Set.
Profile 6 30x30 must be 14 mm shorter than Telescope Profile 8 40x40 in order that it can be inserted completely in the assembled telescope, and the stroke thereby maximised. Max. load in telescope direction: 500 N
